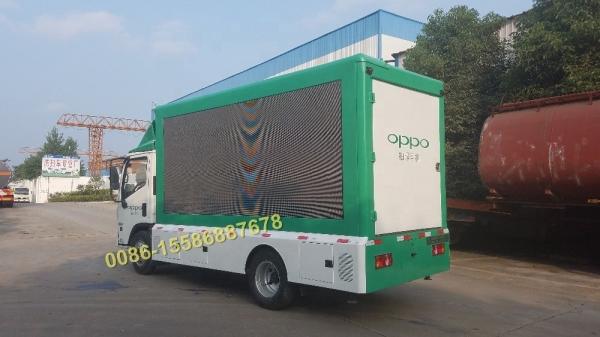

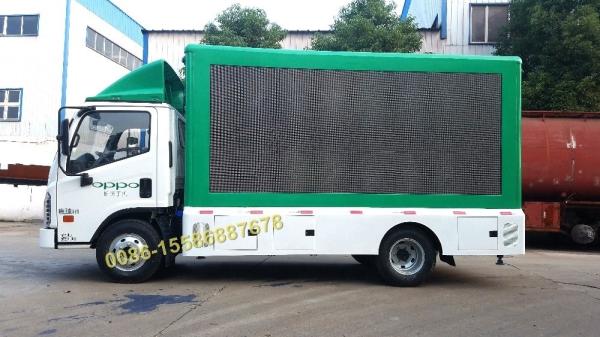

OPPO advertising truck FORLAND 4*2 P8 led mobile advertising trucks for sale

Technical Parameters

1) Chassis dimension length/width/height (mm): 6970×2240×2450 mm

2) Chassis model: BJ1043V9JEA-A

3) Wheelbase (mm): 3360mm

4) Tire specification: 8.25-16 nylon tire (6 units)

5) Fuel type: Diesel

6) Engine: 4B2-95C40 (Turbo Diesel)

7) Exhaust/ Power (ml/kw): 4200ml/96kw

8) Engine Manufacturer: Guangxi Yuchai Engine group

9) Hydraulic pump which can lift the screen up for 1.8m

10) Engine: OM15CY (OUMA)

Rated power: 15/15KVA

HZ:50 HZ

Rated voltage:230V

Rated current:65.2A

PF:1.0

Rated rotate speed:1500r/min

Phase:Single

Weight: 480kgs

11) Screen Parameter: P8

Screen size: 5.76 x 2.0 m

12) Four hydraulic legs

13) At the top of the compartment, equipped one cooling exhaust fan,220V

14) Waterproof audio equipment (four units)

15) LED display specification

Pixel pitch: 8MM

Sealed box material: Iron

Resolution: 1536 x 896

Pixel configuration: 15625 dots/ m2

Screen size: 5.76 x 2.0 m

Screen weight: 40KG/ m2

Screen pixels: 1376256

Display brightness: ≥9000cd/ m2

Drive Mode: 1/4 scan , constant current

Grey Scale: RGB each 256 grades

Refresh Rate: >720HZ

16) Sending card/Receiving card/LED studio (software)-control systerm: Novastar brand

17) Spare Parts: Extra three pcs LED moulds (128mm×256mm×20mm)

White flat cable x 20pcs

Our products scope:

Our service

1. Answer your question within 24 hour.

2. one year of warranty since bill of lading on board date
3. Provide English operation manual or video

4. Free training in our factory if customer need.

1) Trucks,dump trucks and tipper trucks Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.

2) Special-purpose vehicles Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.

Making orders:

If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.

We assure your order from you will have our immediate produce and prompt delivery.
