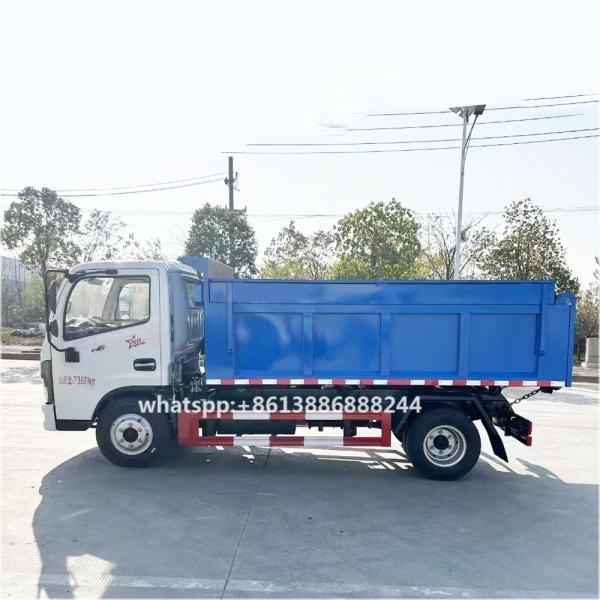

Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck
Specifications
Condition :
New
Steering :
Left
Horsepower :
150 - 250hp
Emission Standard :
Euro 6
Brand Name :
DONGFENG
Place of Origin :
Hubei, China
Segement :
Mini truck
Market Segement :
Highway transportatopn
Fuel Type :
Diesel
Engine Capacity :
< 4L
Cylinders :
4
Transmission Type :
Manual
Forward Shift Number :
5
Reverse Shift Number :
1
Maximum Torque(Nm) :
≤500Nm
Cargo Tank Dimension :
3300x1850x400mm
Cargo Tank length :
≤4.2m
Gross Vehicle Weight :
5-10T
Capacity (Load) :
1 - 10t
Fuel Tank Capacity :
≤100L
Drive Wheel :
4X2
Passengers :
2
Driver's Seat :
Normal
Rear Camera :
None
Cruise Control :
None
ABS(Antilock Braking System) :
Yes
ESC(Electronic Stability Control System) :
None
Touch Screen :
None
Tire Number :
6
After-sales Service Provided :
Onsite Installation, Video technical support, Field installation, commissioning and training, Online support, Free spare parts
Color :
Customer's Request
Steering position :
Customer's Request
MOQ :
8 units
Price :
CN¥76,645.42/units 8-17 units
Description

Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck

Driving form: 4X2
Wheelbase: 3308mm
Body length: 5700mm
Body width: 2020m m
Body height: 2330 m
Front wheel base: 1525mm
Rear wheel base: 1498mm
Vehicle weight: 3810kg
Rated load: 3320kg
Total mass: 7360kg
Tonnage class: Light truck
Approach Angle: Twenty-one degree
Departure Angle: 16 degrees
Market segments: Engineering transportation
Engine type: yunnei
Number of cylinders: 4-cylinder
Fuel Type: Diesel oil
Displacement: 1999m L
Emission standard: radish
Maximum horsepower: 84 horsepower
Maximum output power: 93kW
Maximum torque: 220N·m
Maximum torque speed: 1900-2100rpm
Rated speed: 3000rpm
Engine form: 4 cylinders in line, direct injection, pressurized intercooling, electric control common rail
Container length: 3600m m
Container width: 1800m m
Container height: 500m m
Container form: self-discharging
Hydraulic cylinder brand model: 90 double tops
Container thickness: 2mm pattern sole
Cab: single Row
Cab width: 1735mm
Transmission model: 6-speed transmission
Forward gear: 6 gear
Number of reversals: one
Frame size: 170×65×6-760mm
Front axle description: 1058 Bridge
Front axle allowable load: 1570kg
Rear axle description: 1059 Shorten the bridge
Rear axle allowable load: 2925kg
Speed Ratio: 4.875
Number of spring pieces: 9/10 + 8
Number of tires: six
ABS Anti-lock: Yes.
Form of air conditioning: Manual operation
Power Windows: Yes.
Electronic central lock: Yes.
Parking brake: Cutoff brake
