Specifications
Condition :
New
Steering :
Left
Horsepower :
351 - 450hp
Emission Standard :
Euro 3
Brand Name :
sinotruk
Place of Origin :
Hubei, China
Segement :
Heavy truck
Market Segement :
Engineering transportation
Engine Brand :
WEICHAI
Fuel Type :
Diesel
Engine Capacity :
> 8L
Cylinders :
6
Gear Box Brand :
FAST
Transmission Type :
Manual
Forward Shift Number :
10
Reverse Shift Number :
2
Maximum Torque(Nm) :
1500-2000Nm
Dimensions (L x W x H) (mm) :
10400*2500*3600
Cargo Tank Dimension :
7400x2300x1500
Cargo Tank length :
6.2-8m
Gross Vehicle Weight :
≥30T
Capacity (Load) :
41 - 50t
Fuel Tank Capacity :
300-400L
Drive Wheel :
8X4
Passengers :
3
Driver's Seat :
Normal
Rear Camera :
None
Cruise Control :
None
ABS(Antilock Braking System) :
None
ESC(Electronic Stability Control System) :
None
Touch Screen :
None
Multimedia System :
None
Window :
Automatic
Air Conditioner :
Automatic
Tire Number :
12
After-sales Service Provided :
Online support, Video technical support
Price :
CN¥180,767.50/units 1-4 units
Description

hongyan 8x4 dump truck hongyan 40 ton dump truck hongyan heavy dump truck

Products Technical Specification
Brand-Series HONGYAN-KINGKAN
Chassis Model CQ3254HMG384E
Emission Standard Euro3
Fuel type Diesel
Cabin KINGKAN Flat Roof,Long Cab
Country of origine China
Whole vehicle main dimensions (mm) Overall dimensions (L×W×H) 10400*2500*3600
Wheel base 1800+3575+1400
Front overhang 1435
Rear overhang 2075
Front /rear tread(mm) 2006/1850
Weight data (kg) Gross weight (kg) 31000
Loading weight (kg) 15800
Curb weight(kg) 15070
Cargo body Description Crago body dimensions (mm) 7400*2300*1600
Crago body thickness side 8mm thickness;bottom 10mm thickness
Lifting System front hoisting
Whole vehicle
main performance		 Max. speed (km/h) 80
Max. grade ability (%) 35
Approach/Departure(°) 25/15
Leaf Spring NO. 2003/3/4
Engine Model WP10.380E32
Maximum power 280kw /380hp
4 stroke direct injection diesel engine
6 cylinder in-line with water-cooling, turbo-charging and inter-cooling
Displacement (L) 9726
Engine Manufacturer weichai
Clutch Model Φ430 Diaphragm Spring
Transmission Brand and Model FAST,10JSD160
Number of gears 10 forward gears & 2 reverse
Axle Front Load capacity (kg) 6500/6500
Rear Load capacity (kg) 18000/18000
Steering Model Power assisted
Steering Wheel left/right hand drive LHD
Frame Type Bottle neck, double chassis
Dimension (mm) 940-865 (W) 317 (H)
Section thickness (mm) 8+8
Electric device Rated voltage 24V
Batteries 2 x 12v, 165Ah
oil tank capacity 350 liters Alluminum with lockable fuel cap
Tyres & Quantity 12.00R20 & 12+1

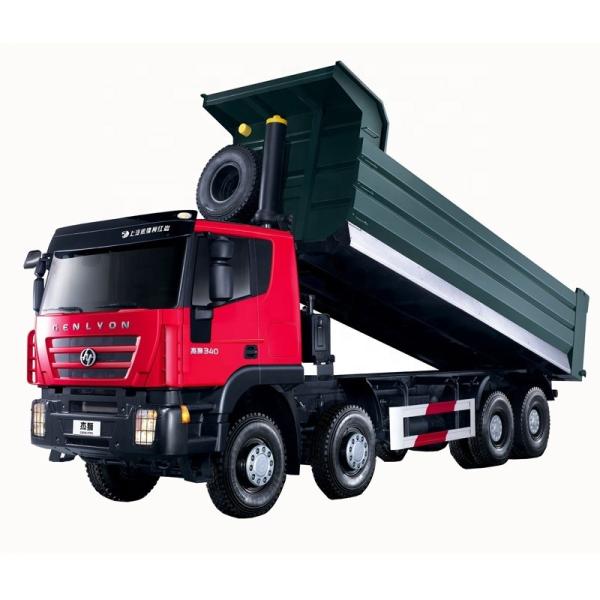

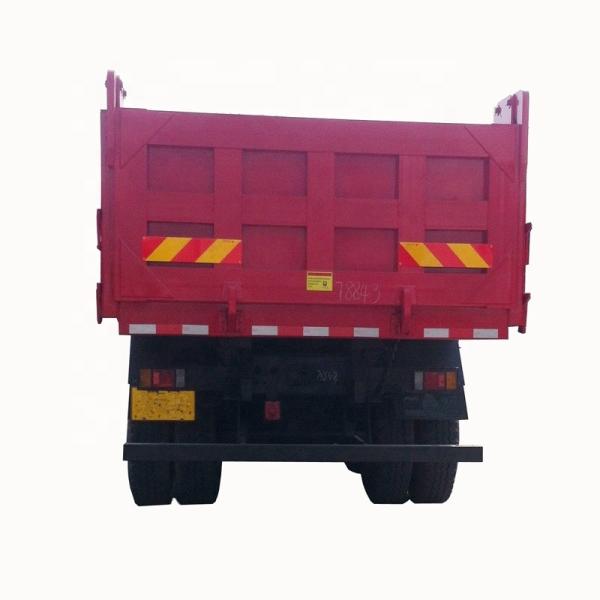

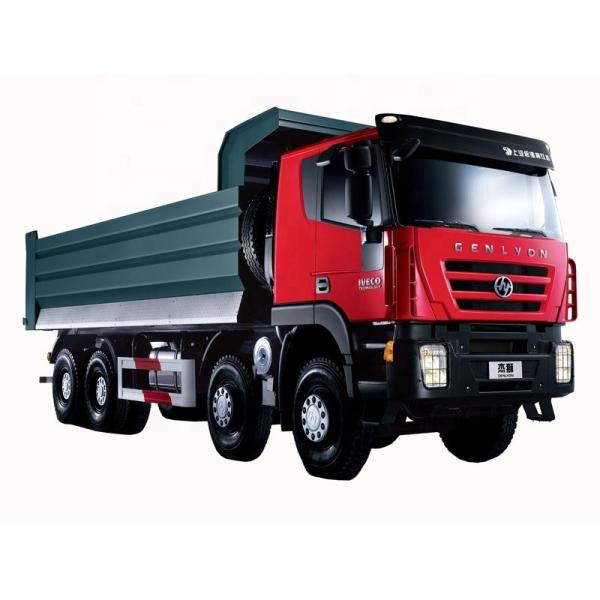

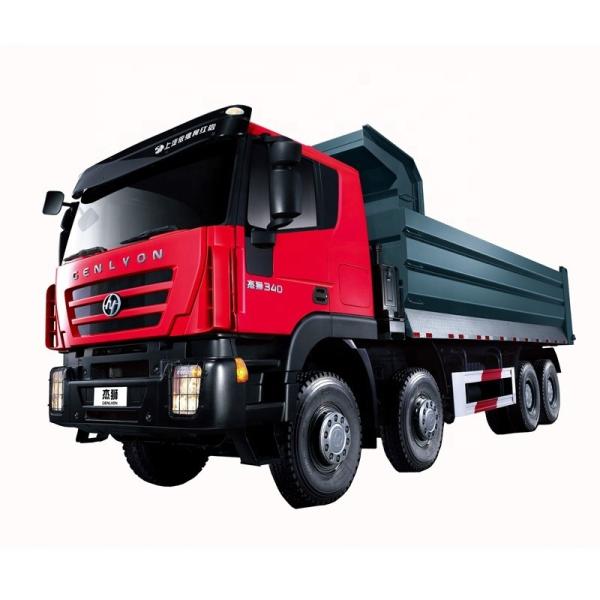

Detailed Images

Hongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump TruckHongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump TruckHongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump TruckHongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump TruckHongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump TruckHongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump Truck

type list of product

Hongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump TruckHongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump Truck

Chassis brand

Hongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump Truck

Company Information

Hongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump Truck

Packaging & Shipping

Hongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump Truck

customer

Hongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump Truck

FAQ

Hubei Runli Special Automobile Co., Ltd is the big domestic enterprise of China, having both the R&D capabilities for special vehicle manufacture and the permission with notice of State Development and Reform Commission.

The main products are

1. Water truck ,Water Tank
2. Fuel tanker truck, Oil Truck,
3. Fire engine truck
4.Truck mounted crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
7. Bulk cement truck
8. Concrete mixer truck
9. Garbage truck,swing arm garbage truck,Self-loading garbage truck,garbage compactor truck,sealed garbage truck
10. Fecal suction truck,sewage suction truck
11. High altitude working truck
12. wrecker truck
13. LED advertisement truck
14. Chemical liquid truck
15. Van truck,insulated truck,refrigeration truck
16. Road sweeper truck,wash and sweep truck
17. High pressure cleaning truck,cleaning and sewage suction truck
18. flatbed transport truck
19. asphalt distributor truck, ynchronous chip sealer truck
20. Dust suppression truck, mist cannon truck

21. Cargo truck, lorry truck
22. Car carrier truck
23. Ambulance,hearse,
24. Tractor Truck
25. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer

Our truck brand :
Dongfeng, sinotruk HOWO, FAW, FOTON, SHACMAN, beiben, CAMC, I S U Z U,GAC H I NO, JAC, JMC, X C M G, IVE CO hongyan , dayun, yuejin, CDW, changan, and so on.

Welcome to visit our company in China !

Hongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump Truck

Remarks:

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:

Contact name: Ms. Anna Yin

Mobile phone:0086-15072975635
