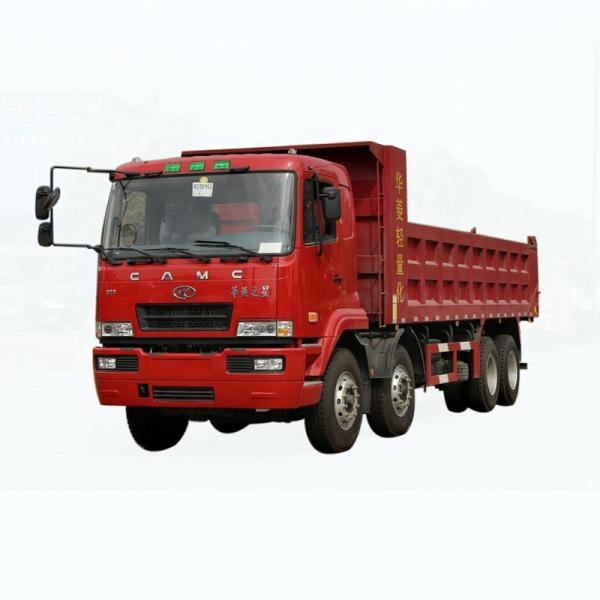

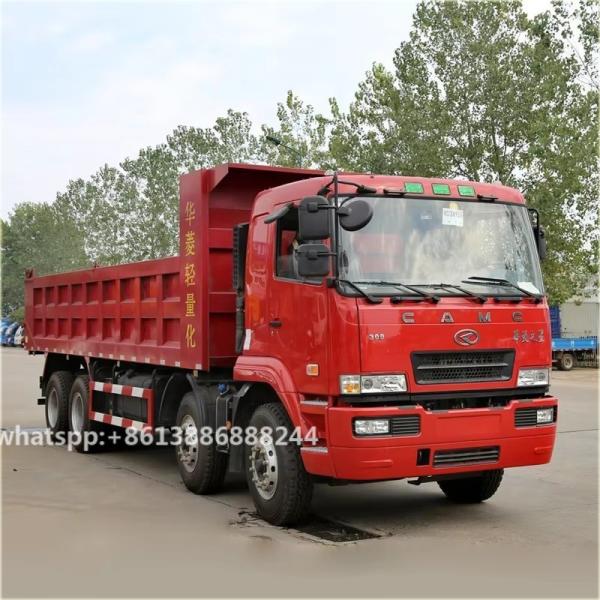

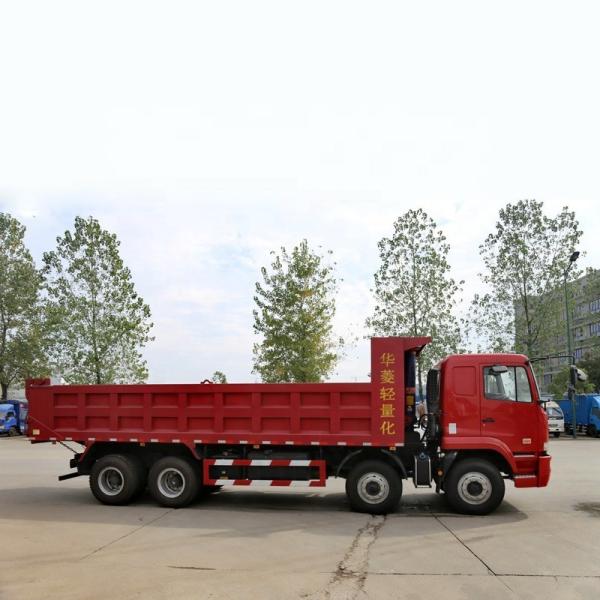

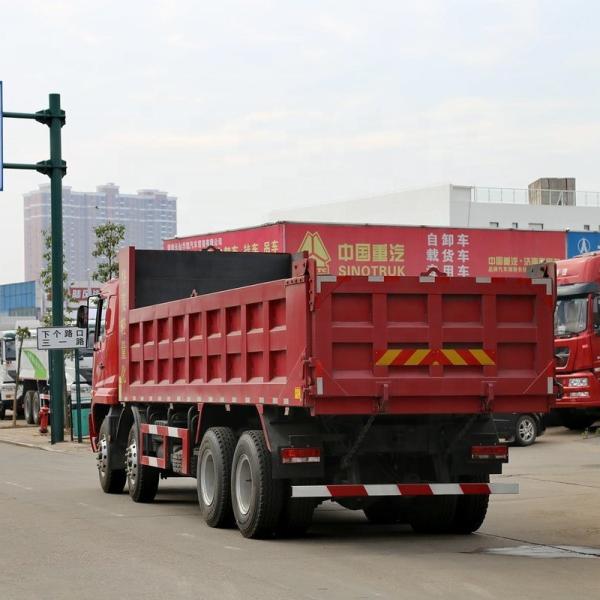

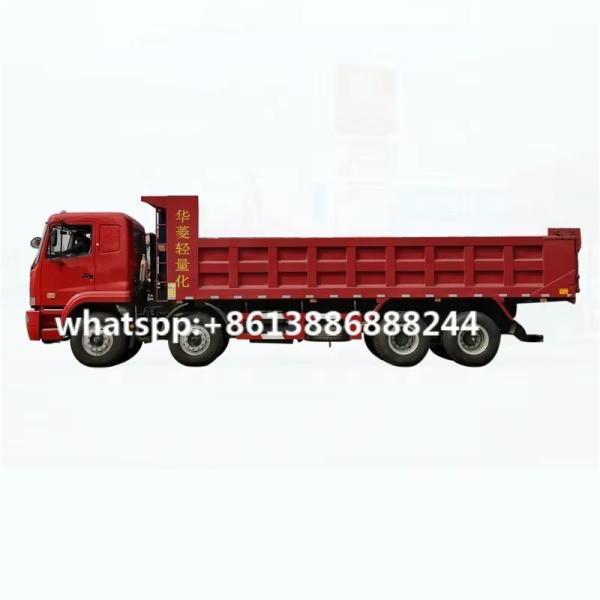

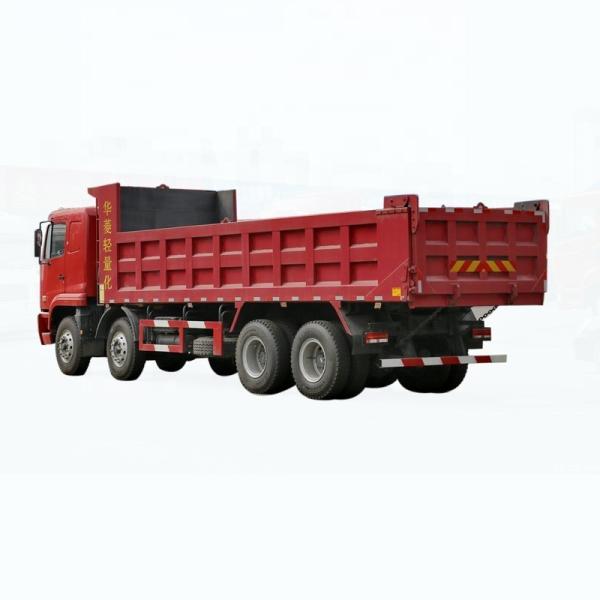

CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
CAMC 8X4 Dump Truck Dumper Dump Cart Tipper
Specifications
Condition :
New
Steering :
Left
Horsepower :
251 - 350hp
Emission Standard :
Euro 4
Brand Name :
CAMC
Place of Origin :
Hubei, China
Segement :
Heavy truck
Market Segement :
Engineering transportation
Fuel Type :
Diesel
Engine Capacity :
> 8L
Cylinders :
6
Transmission Type :
Manual
Forward Shift Number :
9
Reverse Shift Number :
1
Maximum Torque(Nm) :
1500-2000Nm
Cargo Tank Dimension :
6500x2300x1330mm
Cargo Tank length :
6.2-8m
Gross Vehicle Weight :
≥30T
Capacity (Load) :
11 - 20T
Fuel Tank Capacity :
300-400L
Drive Wheel :
8X4
Passengers :
6
Driver's Seat :
Normal
Rear Camera :
None
ABS(Antilock Braking System) :
Yes
ESC(Electronic Stability Control System) :
None
Touch Screen :
None
Tire Number :
12
After-sales Service Provided :
Onsite Installation, Video technical support, Field installation, commissioning and training, Online support
Color :
Customer's Request
Steering position :
Customer's Request
Price :
CN¥93,999.10/units 1-17 units
Description

CAMC 8X4 Dump Truck Dumper Dump Cart Tipper

Driving form: 8X4
Wheelbase: 1940+3760+1350mm
Body length: 9.38 m
Body width: 2.495 meters
Body height: 3.7 m
Front wheel base: 2065/2065mm
Rear wheel base: 1860/1860mm
Vehicle weight: 14.805 tons
Rated load: 16.065 tons
Total mass: 31 tons
Tonnage class: Heavy truck
Approach Angle: 20 degrees
Departure Angle: 23 degrees
Market segments: Urban debris, road transport
Engine type: Weichai WP10.336E40
Engine brand: Weichai
Number of cylinders: 6-cylinder
Fuel Type: Diesel oil
Displacement: 9.726 L
Emission standard: Euro IV
Maximum horsepower: 336 horsepower
Maximum output power: 247kW
Maximum torque: 1500N·m
Maximum torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine form: Water-cooled, four-stroke, with exhaust brake, direct injection, supercharged intercooling
Container length: 6.5 m
Container width: 2.3 m
Container height: 1.33 m
Container form: Back dump type
Transmission model: Fast 9JS150T-B
Transmission brand: Fast
Forward gear: 9th speed
Number of reversals: one
Rear axle description: And install double shafts
Rear axle allowable load: 18000kg
Speed Ratio: 5.73
Number of spring pieces: 2009/9/12
Tire Specifications: 11.00 R20
Number of tires: twelve
