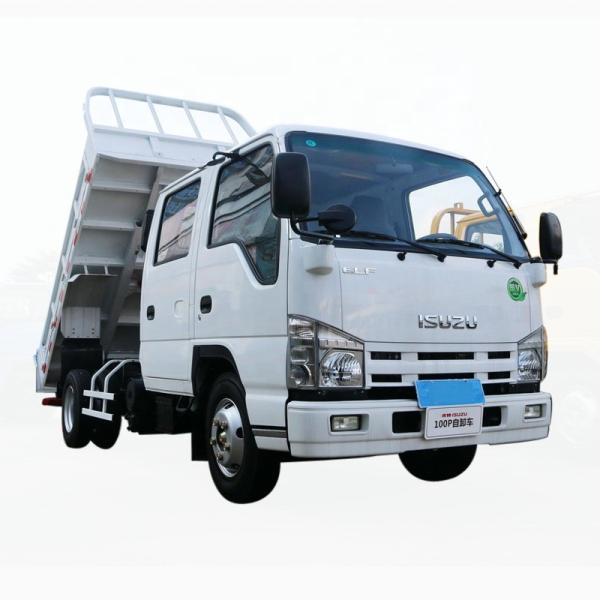

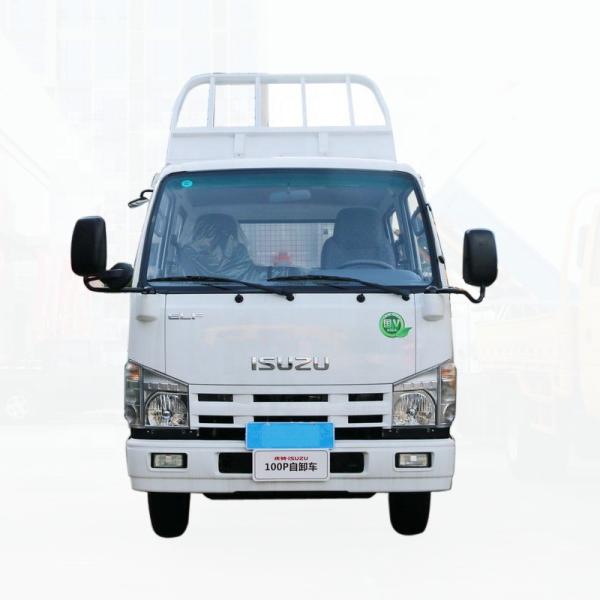

ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
Specifications
Brand Name :
ISUZU
Place of Origin :
Hubei, China
Price :
CN¥78,814.63/units 1-17 units
Condition :
New
Steering :
Left
Horsepower :
98
Emission Standard :
EURO 5
Segement :
Light truck
Market Segement :
Highway transportatopn
Fuel Type :
Diesel
Engine Capacity :
< 4L
Cylinders :
4
Gear Box Brand :
ISUZU
Transmission Type :
Manual
Forward Shift Number :
5
Reverse Shift Number :
1
Maximum Torque(Nm) :
≤500Nm
Dimensions (L x W x H) (mm) :
5900x19450x2320mm
Cargo Tank Dimension :
3130x1780x380mm
Cargo Tank length :
≤4.2m
Gross Vehicle Weight :
≤5T
Capacity (Load) :
1 - 10t
Fuel Tank Capacity :
≤100L
Drive Wheel :
4X2
Passengers :
5
Rear Camera :
None
Cruise Control :
None
ABS(Antilock Braking System) :
Yes
ESC(Electronic Stability Control System) :
None
Touch Screen :
None
Tire Number :
6
After-sales Service Provided :
Onsite Installation, Video technical support, Field installation, commissioning and training, Online support, Free spare parts
Color :
Customer's Request
Steering position :
Customer's Request
Description

ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation

Announcement model: QL3040ZA6HW
Driving form: 4X2
Wheelbase: 3360mm
Body length: 5.9 m
Body width: 1.945 meters
Body height: 2.32 m
Front wheel base: 1377mm
Rear wheel base: 1425mm
Vehicle weight: 2.72 tons
Rated load: 1.45 tons
Total mass: 4.495 tons
Tonnage class: Light truck
Approach Angle: 24 degrees
Departure Angle: 12 degrees
Market segments: Engineering transportation
Note: Passenger capacity: 5
Engine type: Keizu Isuzu
Engine brand: Keizuzu Isuzu
Number of cylinders: 4-cylinder
Fuel Type: Diesel oil
Displacement: 2.999 L
Emission standard: radish
Maximum horsepower: 98 horsepower
Maximum output power: 72kW
Maximum torque: 220N·m
Maximum torque speed: 1700rpm
Rated speed: 3400rpm
Container length: 3.13 m
Container width: 1.78 m
Container height: 0.38 m
Container form: self-discharging
Cab: Double row
Transmission model: Isuzu MSB-5MT
Transmission brand: Isuzu
Forward gear: Fifth gear
Number of reversals: one
Fuel tank material: ferruginous
Front axle allowable load: 1580kg
Rear axle allowable load: 2915kg
Speed Ratio: 6.142
Number of spring pieces: 3/3 + 2
Tire Specifications: 6.50R16 10PR
Number of tires: six
ABS Anti-lock: Yes.
