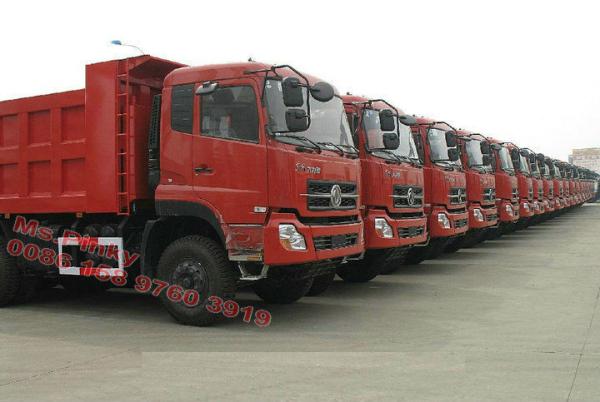

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper
35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper
Specifications
Condition :
New
Horsepower :
251 - 350hp
Emission Standard :
Euro 3
Brand Name :
Dongfeng Tipper Truck
Model Number :
DFL3258A3
Place of Origin :
Hubei, China
Fuel Type :
Diesel
Engine Capacity :
> 8L
Transmission Type :
Manual
Dimensions (L x W x H) (mm) :
8470*2500*3484
Gross Vehicle Weight :
25000
Capacity (Load) :
31 - 40T
Drive Wheel :
6x4
Color :
Cherry Red, Yellow, Blue, White
Frame :
300*80*80mm(inner 280*70*7mm)
Tyre: :
12R22.5
Offical Website :
www.runlitruck.com
Chasis optional :
Sinotruck HOWO, BEIBEN NORTH BENZ,FOTON,DONGFENG DFL,Hino,Jiefang Faw
Driving Type :
4*2 , 4*4,6*4, 6*6,8*4,8*4 All Wheel Drive Off Raod
Packaging Details :
naked package , waxed before delivery, Shipping by RORO or Bulk shipment, please directly contact with Ms Pinky. Hotline:0086 15897603919
Port :
Shanghai,Tianjin,longkou or other china port
Supply Ability :
200 Unit/Units per Month
MOQ :
2 units
Price :
CN¥274,766.60-353,581.23/units
Description

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper Call 0086 15897603919

The specification of Dongfeng 10 Wheels 35Tons Tipper Truck:

Application conditions: steel, iron ore, iron ore mining, iron ore and other high density in short-distance transport and short-distance transport of goods.

The Dumper truck features: Dongfeng New cabin Heavy duty dumper truck using the Cummins engine, large capacity, strong power, large torque at low speed, low fuel consumption, high reliability; the Shaanxi teeth 9 forwards transmission, convenient operation, high strength, long service life of the gear; the use of 13 tons of Dongfeng wheel reducer bridge, steel bridge shell, strong carrying capacity, large clearance, good passing ability, can fully meet the iron powder, iron ore short-distance transport, suitable for mountain road, road, road transport.

Technical parameter of chassis DFL3258A3
outside dimension (L×W×H)mm8300×2500×3450
Total massKg42,060
Loading massKg30,000
Kerb massKg11,910
Chassis Model /ManufacturerDFL3258A3
driving type6×4
CabinFlat head, tippable, one bed(D310-S1)
Wheelbase mm3800+1450
Front overhang / rear overhangmm1500/1550
Front tread / rear treadmm2040, 1850/1850
Approach angle /Departure angle30/28
Engine
modelL340 30L290 30
Max. power/rotated speed250(KW) /2200(rpm)213KW/2200rpm
Type of fuelDieseldiesel
Company of engineDongfeng Cum,mins Engine
Gear box FAST RT-11509G
clutchΦ430mm diaphragm spring clutch
Front axle7T
Rear axle16T×2
Tyre 12.00R0
Max Speed90Km/h
air conditionWith
Cargo body 5600×2300×1200mm

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper

our Tipper Truck Producing workshop:

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper

Welcome to Visit our factory in Suizhou City Hubei Province!

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper
