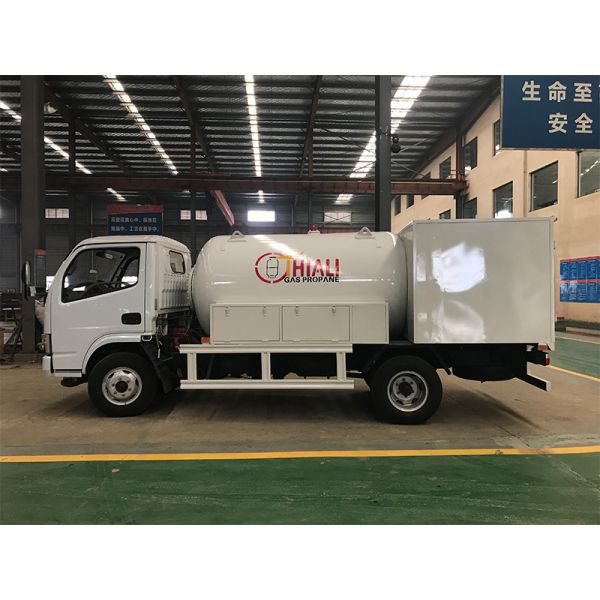

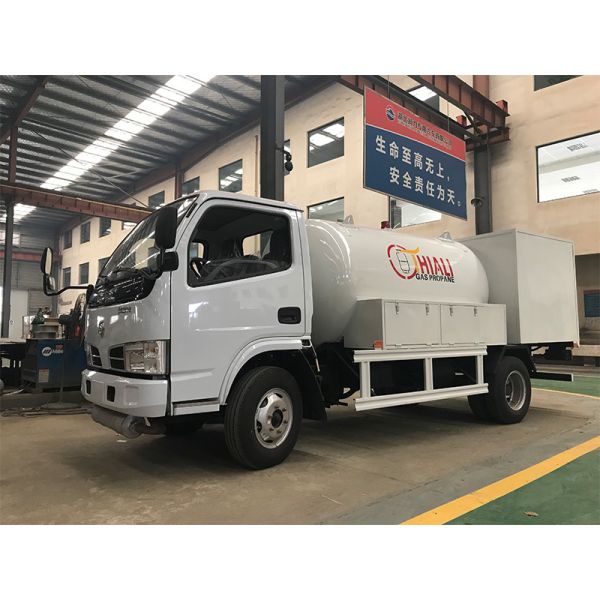

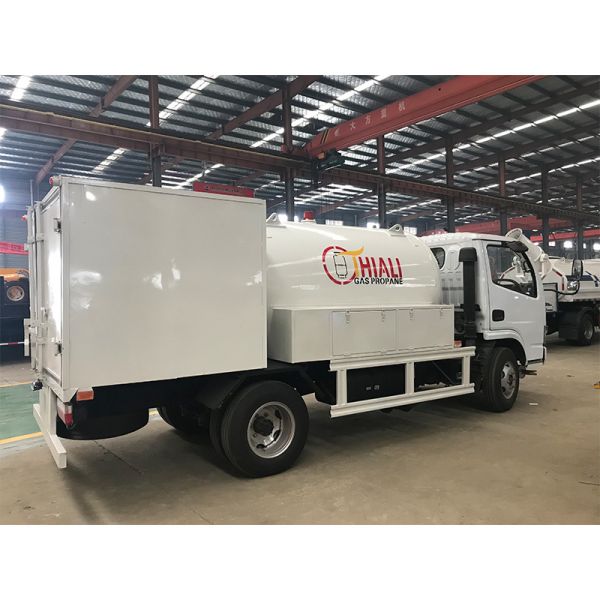

5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine
Specifications
MOQ :
1
Price :
21450
Payment Terms :
T/T
Supply Ability :
500
Delivery Time :
20
Packaging Details :
Nude package
Chassis :
EQ1060
Warranty :
1 Year
Forward Shift Number :
5
Fuelcapacity :
150 liters
Core Components :
Engine
Horsepower :
90HP 120HP
Emissionstandard :
Euro 3 Euro 6
Model :
Standard
Segement :
Light truck
Drivetype :
4x2
Steering Wheel :
Customer's Requirement
Wheelbase :
3300mm
Storage :
Water
Description
Parameter Value
Chassis Manufacturer DFAC Chassis with air condition
Chassis model EQ1060
Cab Flatting cab (White)
Drive Left hand
Brake Air brake
Transmission 5 speed
Front axle Load 1800 kgs
Rear axle Load 3500 kgs
Vehicle frame Side beam frame
Overall Dimension 5940*2000*2700mm
Rated Payload 3000Kg
Kerb Weight 3580Kg
Engine Specifications
Model/Rated Power YC4FA120-33 / 88KW / 120HP
Emission standard Euro III
Manufacturer Yuchai engine co., ltd
Type & Size of Tyre 7.00R16
Power take-off Yes
Front/rear overhang (mm) 1055/1577
Departure angle 27/15
Suspension front shock absorber
Leaf spring (Number of front plate springs)-8
(Number of front plate springs)9+5
Number of axles 2
Number of tires 6+1
Spare tire rack Yes
Track (mm) 1525/1498
Driving type 4*2
Wheel Base 3308mm
Maximum torque 345N·m
Max Speed 90Km/h
Brakes Drum
LPG tank specification
Tank material Q345R (Standard GB713-2008)
Tank volume 5000 liters
Tank Designed thickness End cover 12 MM
Tank body 10MM
Designed pressure 1.77MPa
Testing water pressure 2.66MPa
Air tight test pressure 1.77MPa
Heat treatment 620℃
Rust thickness 1mm
Use Years 20 years

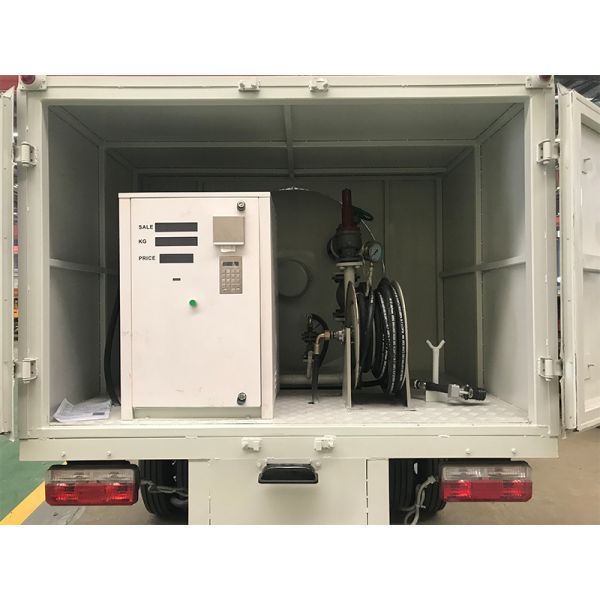

LPG dispenser Function Mobile refueling to inflate LPG trucks or storage tanks
Flow rate 15 cbm/h
Max working pressure 2.5MPa
LPG pump Function Unloading gas
Flow rate 15 cbm per hour
Working pressure 2.5MPa
Liquid level meter Type Uqz2.5-1500 (Floating ball type)
List of nozzles Pressure meter DN50 A412F-25-22
Safe valve Build in type
Thermometer DN50
Liquid phase Q41F-25P-8B/9B
Gas phase DN25
Sewage draining exit Q41F-25P-8B/9B
