Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Galvanized Steel Structure Warehouse Building with H-Section Frame
Specifications
Brand Name :
Ruly Steel
Model Number :
RulyX026
Certification :
CE,AISC,SGS, BV, ISO,GB
Place of Origin :
Qingdao,China
MOQ :
200 square meters
Price :
USD25-USD45 Per Square Meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20,000 square meters or 1,500 tons per month
Delivery Time :
20 days
Packaging Details :
40HQ/Open top container
Raw Steel Material :
Q235B, Q355B, ASTM A36
Application :
Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Columns & Beams :
H-Section Steel
Installation :
Engineer Guidance on Site
Drawing :
CAD, TEKLA, 3D Model, PKPM, BIM
HS Code :
9406900090
Transport Package :
Standard Export Package or Customer′s Requirement
Production Capacity :
30000ton/Year
Description
Strong Industrial Steel Structure Warehouse Building Metal Galvanized Portal Frame
Product Specifications
Attribute Value
Raw Steel Material Q235B, Q355B, ASTM A36
Application Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Columns & Beams H-Section Steel
Installation Engineer Guidance on Site
Drawing CAD, TEKLA, 3D Model, PKPM, BIM
HS Code 9406900090
Transport Package Standard Export Package or Customer′s Requirement
Production Capacity 30000ton/Year
Product Overview
Steel structure buildings combine traditional construction techniques with modern industrial production methods, achieving fast, efficient, and environmentally friendly construction through factory prefabrication and on-site assembly.
The steel frame structure adopts high-quality high-strength steel that has been precisely manufactured to ensure structural integrity, safety, and excellent seismic resistance. Components are prefabricated in a factory environment and then modularly assembled on site, which improves construction productivity, greatly shortens construction time, and minimizes costs.
Material Specifications
Main Steel Frame - Column Q235, Q355 Welded H Section Steel
Main Steel Frame - Beam Q235, Q355 Welded H Section Steel
Secondary Frame - Purlin Q235 C and Z purlin
Knee Bracing Q235 Angle Steel
Tie Bar Q235 Circular Steel Pipe
Bracing Q235 Round Bar
Column and Horizontal Bracing Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel EPS Sandwich Panel / Fiber Glass Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Structure Usage Up to 50 years
Galvanized Steel Structure Warehouse Building with H-Section Frame Galvanized Steel Structure Warehouse Building with H-Section Frame
Service Advantages
  • Professional Design: Senior design team provides customized drawings and steel usage calculations
  • Exquisite Craftsmanship: Skilled production team with advanced equipment ensures excellent quality
  • One-Stop Service: Comprehensive solutions from design to installation
  • Strict Quality Control: International standards compliance for products and services
  • High-Quality After-Sales: Quick response and comprehensive maintenance services
Galvanized Steel Structure Warehouse Building with H-Section Frame Galvanized Steel Structure Warehouse Building with H-Section Frame

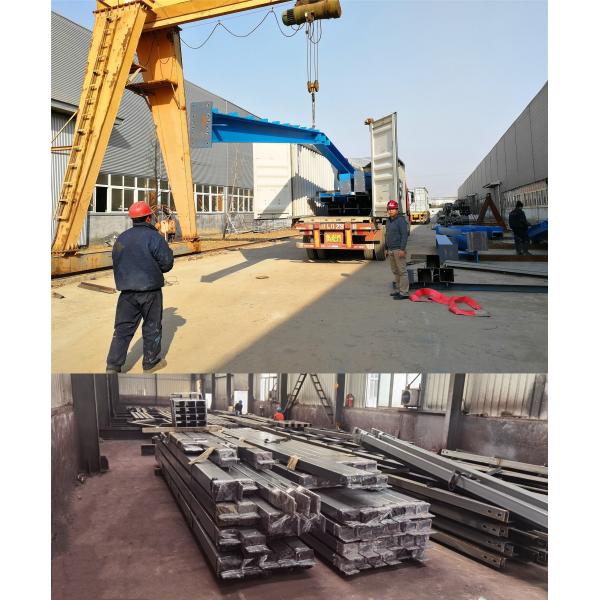

Packing and Delivery
  • Standard Sea Freight Packaging: Reinforced packaging for structural components, panels, and accessories
  • 40' HQ Container Loading: Optimized space utilization for safe transportation
  • Professional Loading Team: Skilled workers using cranes and forklifts following strict procedures
Galvanized Steel Structure Warehouse Building with H-Section Frame
Project Case: Marriott AC Hotel Guyana & Retail Building
Project Usage Marriott AC Hotel Guyana & Retail Building
Building Structure Type 3 & 6 Floor Steel Buildings
Steel Structure Weight 860 Ton
Raw Steel Material ASTM A572 G50
Welding Technique AWS-D1.1
Maximum Thickness Of Steel Plate 65mm
Our Work Scope Design 3D Tekla Model, Fabrication Drawings, Installation Drawings; Fabrication Steel Structure & Loading
Project Location Guyana
Date January, 2023 - March, 2023
Galvanized Steel Structure Warehouse Building with H-Section Frame

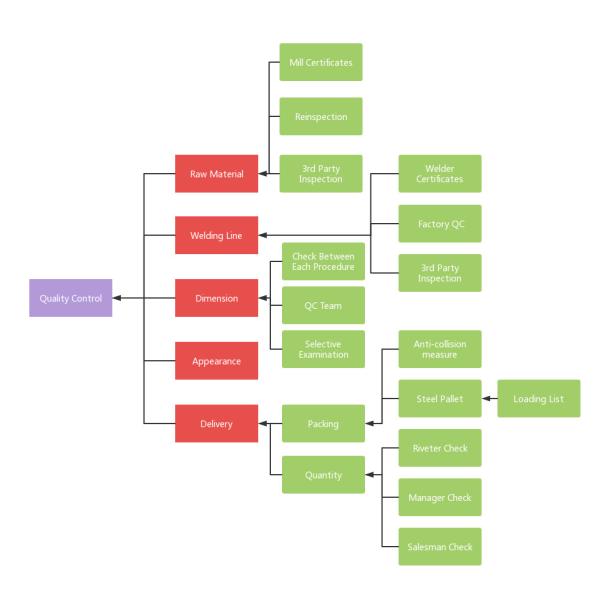

Quality Control
Raw Material Quality Control: Thickness tolerance <0.25mm, yield and tension strength testing, third-party inspection certificates
Structural Steel Fabrication Quality Control: 100% dimension testing (<1mm tolerance), 20% ultrasonic welding tests, magnetic powder testing
Surface Treatment: Shot blasting grade Sa. 2.5, paint primer within 5 hours, dry film thickness >75UM
Galvanized Steel Structure Warehouse Building with H-Section Frame
