Specifications
Brand Name :
Ruly Steel
Model Number :
Ruly0004
Certification :
SGS, ,ISO, BV
Place of Origin :
China
MOQ :
500 Square Meter
Price :
USD29-USD99 Per Square Meter
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
20000 Square Meter Per Month
Delivery Time :
30 Days
Packaging Details :
As request
Application :
Steel Structure Warehouse With Crane
Features :
Prefabricated Metal Building With Crane
Wall and Roof :
Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel
Raw steel material :
Q235B, Q355B
Surface treatment :
Painting or Hot-dip Galvanize
Service life :
50 Years
Columns and Beam :
H Section Column&Beam
Installation :
Engineer guidance on site
Description
Light Steel Structure Warehouse With Crane / Prefabricated Metal Building With Crane
Product Specifications
Application Steel Structure Warehouse With Crane
Features Prefabricated Metal Building With Crane
Wall and Roof Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Columns and Beam H Section Column&Beam
Installation Engineer guidance on site
Product Overview

Our Light Steel Structure Warehouse With Crane is a prefabricated metal building solution with an overall floor area of 1800 square meters. The package includes welded steel beams & columns, crane systems, steel cladding sheets, purlins, windows, doors, and all necessary accessories. Main components are factory-prefabricated for efficient on-site assembly, with each project customized to client specifications.

Technical Specifications
Main Steel Frame System
  • Main structure: H section steel Q345 with alkyd painting (two primary coats, two finish coats)
  • Roof purlin: XZ160*60*20*2.5, galvanized
  • Wall purlin: XZ160*60*20*2.5, galvanized
  • Intensive bolt: Grade 10.9
  • Turn buckle bolt: M20+2, steel Q235
  • Anchor bolt: M24, steel Q235
  • Ordinary bolts: Galvanized M20 and M12
  • Brace nut: Galvanized bolt M12
Bracing System
  • Cross brace: Φ20 round steel bar Q235, painted
  • Angle brace: L50*5 angle steel Q235, painted
  • Column bracing: Φ25 round steel bar Q235, painted
  • Tie bar: Φ127*3 steel pipe Q235, painted
  • Batter brace: Φ32*2.5, Φ12 round steel bar Q235, painted
Wall & Roof System
  • Roof panel: Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
  • Wall panel: Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
  • Edge cover: 0.5mm color plate, angle Alu.
  • Fittings & accessories: Nails, glue etc.
  • Unpowered ventilator: Diameter Φ600, stainless steel
  • Sky lighting band: 1.2mm FRP, double layer
  • Sliding door: Sandwich panel door
Roof Drainage System
  • Gutter: 0.5mm color steel plate
  • Rainspout pipes: Φ110 PVC pipe
Construction Process

We provide detailed shop drawings prior to installation, with our engineers providing on-site guidance throughout the construction process.

Prefabricated Steel Warehouse with Crane - Q235B/Q355B Material

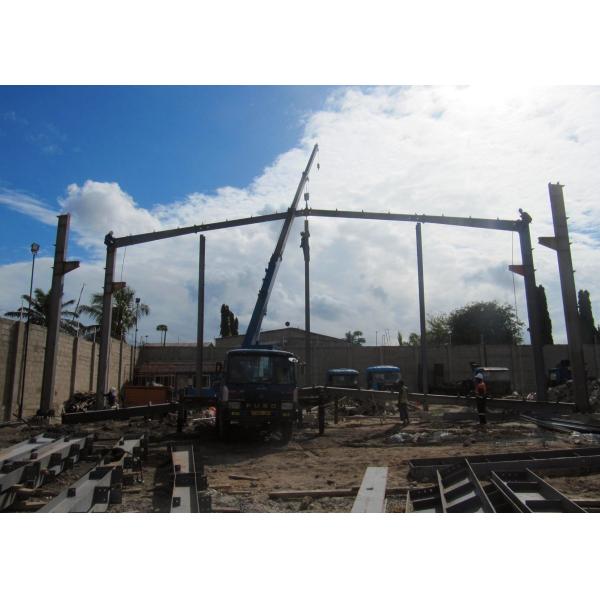

1. Installation for beam and column
Prefabricated Steel Warehouse with Crane - Q235B/Q355B Material
2. Laying purlin
Prefabricated Steel Warehouse with Crane - Q235B/Q355B Material

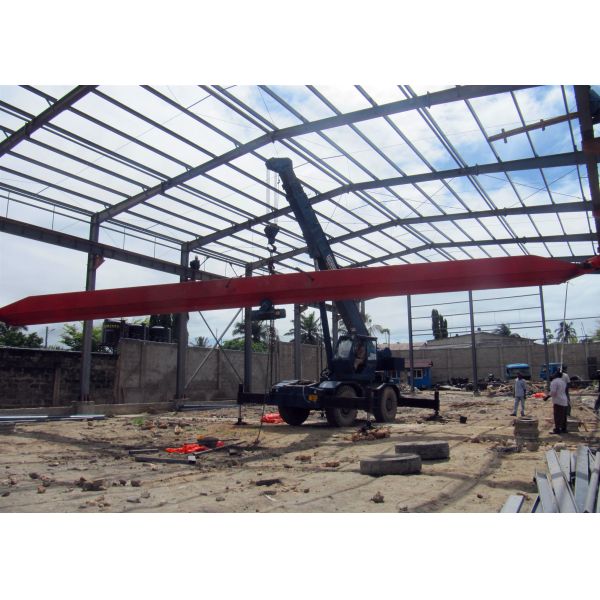

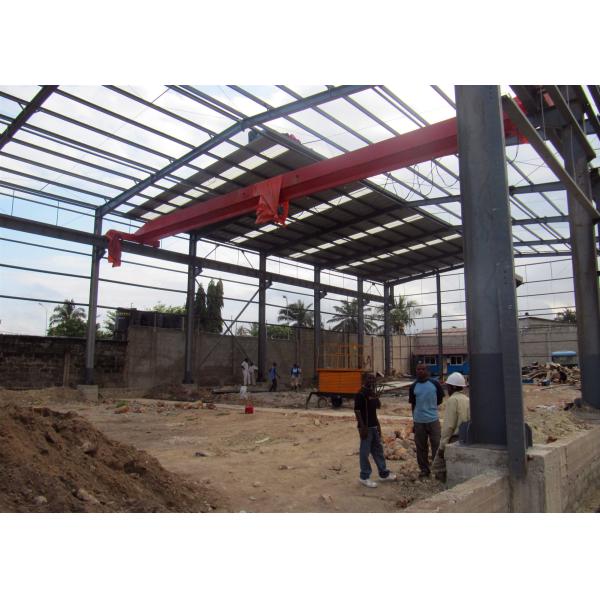

3. Installation for Electric single beam crane
Prefabricated Steel Warehouse with Crane - Q235B/Q355B Material
4. Installation for roof steel cladding sheet
Packing and Shipping

All structural components, panels, bolts, and accessories are packed to withstand ocean transportation and loaded into 40'HQ containers.

Prefabricated Steel Warehouse with Crane - Q235B/Q355B Material
Request a Quote

Provide the following details and we'll prepare a customized proposal:

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
