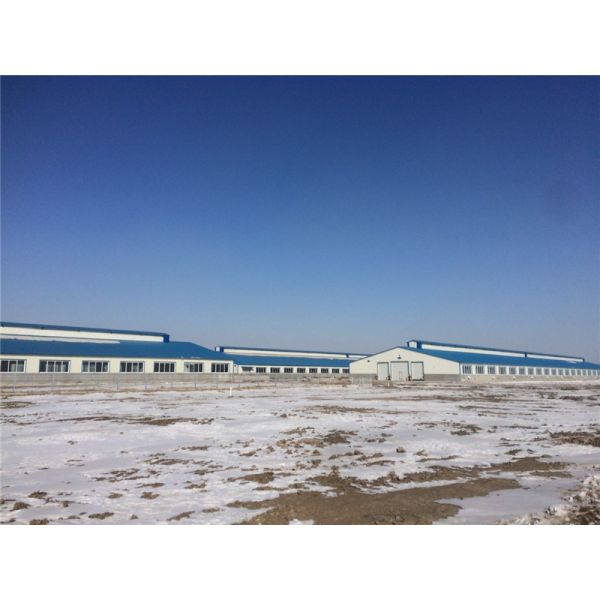

Prefabricated Insulation Steel Cowshed with Sandwich Panel
Prefabricated Insulation Steel Cowshed with Sandwich Panel
Prefabricated Insulation Steel Cowshed with Sandwich Panel
Prefabricated Insulation Steel Cowshed with Sandwich Panel
Prefabricated Insulation Steel Cowshed with Sandwich Panel
Prefabricated Insulation Steel Cowshed with Sandwich Panel
Prefabricated Insulation Steel Cowshed with Sandwich Panel
Prefabricated Insulation Steel Cowshed with Sandwich Panel
Specifications
Brand Name :
Ruly Steel
Model Number :
Ruly0424
Certification :
SGS, BV, ISO
Place of Origin :
China
MOQ :
300 Square Meter
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
20000 Square Meter Per Month
Delivery Time :
15 ~ 20 Days
Packaging Details :
As request
Application :
Pre Steel Structure Warehouse
Features :
Insulation Steel Structure Warehouse
Type :
Steel Structure Warehouse
Working scope :
Design,Fabrication, Installation
Raw steel material :
Q235B, Q355B, ASTM A36
Service life :
50 Years
Wall and Roof :
Steel cladding sheet
Surface treatment :
Painting
Description
Prefabricated Insulation Steel Structure Cowshed With Sandwich Panel
Product Specifications
Attribute Value
Application Pre Steel Structure Warehouse
Features Insulation Steel Structure Warehouse
Type Steel Structure Warehouse
Working scope Design, Fabrication, Installation
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Steel cladding sheet
Surface treatment Painting
Steel Structure Cowshed With Sandwich Panel
This prefabricated insulation steel structure warehouse utilizes an internationally common portal frame system that efficiently bears and transfers loads through connected steel plates and profiles. The structure features:
Material Specifications
Component Specification
Main Steel Frame (Column/Beam) Q235, Q355 Welded H Section Steel
Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical & Horizontal support Q235 Angle Steel, Round Bar or Steel Pipe
Roof panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet
Wall panel Sandwich Panel / Corrugated Steel Sheet
Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Performance Specifications: Wind Resistance Grade 12 | Earthquake-resistance 8 Grades | Live load on Roof 120kg/Sqm | Structure Usage Up to 50 years
Finishing Options: Wide array of colors and textures available. Paint options include Alkyd painting (two primary, two finish painting) in gray, red, white, epoxy zinc, or Galvanized.
Prefabricated Insulation Steel Cowshed with Sandwich Panel Prefabricated Insulation Steel Cowshed with Sandwich Panel Prefabricated Insulation Steel Cowshed with Sandwich Panel
Key Advantages
  • Space Efficiency: Enables flexible partitioning with 6% more effective indoor area compared to traditional buildings
  • Energy Saving: Lightweight wall panels provide excellent thermal insulation, reducing energy consumption by 50%
  • Safety: Superior ductility and deformation capacity ensure excellent seismic and wind resistance (Grade 12 wind resistance, Grade 8 earthquake resistance)
  • Lightweight: Total weight approximately half of concrete structures, reducing foundation costs
  • Fast Construction: 1000m² building can be completed in just 20 days with 5 workers
  • Eco-Friendly: 100% recyclable materials with minimal construction waste and sand/stone usage
