Semi Hermetic 9hp Compressor All Models R404a 4CES-9Y-40S 4CC-9.2Y-40S 11.3kw
Semi Hermetic 9hp Compressor All Models R404a 4CES-9Y-40S 4CC-9.2Y-40S 11.3kw
Semi Hermetic 9hp Compressor All Models R404a 4CES-9Y-40S 4CC-9.2Y-40S 11.3kw
Semi Hermetic 9hp Compressor All Models R404a 4CES-9Y-40S 4CC-9.2Y-40S 11.3kw
Specifications
Model Number :
4CES-9Y/4CC-9.2Y
Certification :
CE 3C
Place of Origin :
Germany
MOQ :
1
Price :
1USD
Payment Terms :
T/T
Supply Ability :
1000 pieces
Delivery Time :
30 days
Packaging Details :
wooden boxes
Type :
Refrigeration Compressor
Application :
Refrigeration Parts
Max operating curr :
nt: 20.2A
model :
4CES-9Y
Voltage :
380v-420v /3 Ph / 50Hz
Refrigerant :
R407c/r404a
Horse power(hp) :
9HP
Max. Power input :
11.3kw
Displacement(m3/ :
32.48
Max. pressure (LP/ :
19/32 bar
net weight :
90.5kg
Description
Semi Hermetic 9hp Compressor All Models R404a 4CES-9Y-40S 4CC-9.2Y-40S 11.3kw
Product Overview

Semi-hermetic 9hp compressor available in all models including R404a 4CES-9Y-40S and 4CC-9.2Y-40S configurations.

Standard Configuration

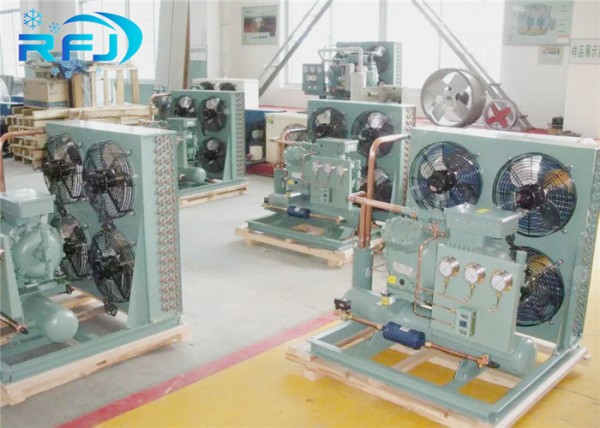

  • Cold room condensing unit
  • Compressor with crankcase heater
  • Oil pressure safety switch (except octagon compressor)
  • Shell and tube type condenser
  • Dryer filter and gauge panel
  • B5.2 refrigeration oil
  • Shielding gas
  • Low-temperature compressor with cooling fan
  • Double-stage compressor with intercooler
Key Features
  • High quality components from world famous brands
  • Effective shell and tube type condenser for high energy efficiency ratio
  • Water cooled packaged unit design
  • Compact structure, sturdy and durable construction
  • Convenient installation process
  • Wide compatibility with refrigerants R22, R134a, R404a, R507a, etc.
Technical Specifications
Overall Dimensions
Condensing Unit Model Compressor Model Length L(A) (mm) Width W(B) (mm) Height H(C) (mm)
SPB03WL2CES-3Y1010350720
SPB04WL4EES-4Y1010350720
SPB05WL4DES-5Y1080350760
SPB06WL4CES-6Y1080350760
SPB09WL4TES-9Y1120350800
SPB12WL4PES-12Y1120350800
SPB14WL4NES-14Y1220400850
SPB18WL4HE-18Y1220400850
SPB23WL4GE-23Y1320400950
SPB28WL6HE-28Y1620400950
SPB34WL6GE-34Y1620400950
SPB44WL6FE-44Y19004001000
Installation Dimensions
Condensing Unit Model Compressor Model Length L(D) (mm) Width W(E) (mm) Installation Bore
SPB03WL2CES-3Y780300Φ18
SPB04WL4EES-4Y780300Φ18
SPB05WL4DES-5Y850300Φ18
SPB06WL4CES-6Y850300Φ18
SPB09WL4TES-9Y890300Φ18
SPB12WL4PES-12Y890300Φ18
SPB14WL4NES-14Y890350Φ18
SPB18WL4HE-18Y990350Φ18
SPB23WL4GE-23Y1080350Φ18
SPB28WL6HE-28Y1400350Φ18
SPB34WL6GE-34Y1400350Φ18
SPB44WL6FE-44Y1680350Φ18

Note: We reserve the right to modify the above overall and installation sizes without prior notice.

Packaging & Shipping
  • Export packaging tailored to product dimensions
  • Carton and free-fumigation wooden pallet
  • Complete free-fumigation wooden case available
  • Shipping typically effected 25-30 days after order placement
Our Services
  • One year warranty for complete machine and one year for compressors
  • Pre-sale services:
    • Customer operation condition analysis
    • Equipment selection and consultation
  • After-sales services:
    • Compressor refrigeration condensing unit and racks design engineering
    • Installation guidance and technical proposals
    • On-site equipment testing with overseas engineer availability
