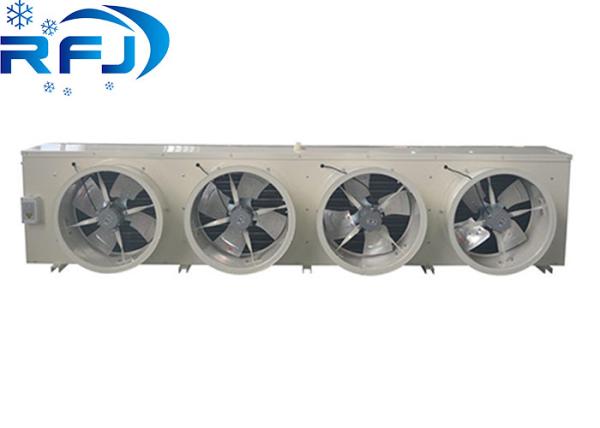

Refrigeration Cooling Mounted Evaporator Air Cooling For Cold Room
Refrigeration Cooling Mounted Evaporator Air Cooling For Cold Room
Specifications
Brand Name :
RFJ
Model Number :
AE301A4F/AE304C6 BT301R3/BT405R5 series
Certification :
CE, CCC, RoHS, UL
Place of Origin :
China
MOQ :
1pcs
Price :
discussed
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
Carton box
Mounting :
Ceiling Mount
Power Supply :
Electric
Application :
cold storage
Material :
Stainless Steel
Operating Voltage :
380/400 VAC
frequency :
50/60hz
color :
white
Type :
Condenser, Air Cooler
Description

Refrigeration Ceiling Mounted Evaporator Air Cooling For Cold Room

Industrial Refrigeration Evaporators Air Cooling For Cold Room.

Wide range of cold quantity;Most of the installation have needle valve;Wiring board positive installation;Cabinet design

1.easy to open the crust

2.wide range of cold quantity;

3.Most of the installation have needle valve;

4.Wiring board positive installation;

5.Cabinet design

6.with a strong rope, be used for maintenance wet pan when fixing.

Note: BMT- mesotherm cooler

BLT-low temp. cooler

BMT series for medium temperature:

Specifications:

300mm Fin Spacing 3.5mm
Models AE301A4F AE301A6F AE302A3F AE302A4F AE302A6F AE303A4F AE303A6F AE304A6F
SC1 KW Ta 10℃ R22 2.3 2.7 3.9 4.7 5.5 7 8 9.4
Te -0℃ R404A 2.3 2.8 3.9 4.7 5.5 7 8.1 9.5
Tube Length m 13 19 19 26 39 39 58 71
Surface ㎡ 6.3 9.5 9.5 12.6 18.9 18.9 28.4 34.7
Circuit Vol. dm³ 1 1.5 1.5 2 3.1 3.1 4.6 5.6
Fan Mot.No. 1 1 2 2 2 3 3 4
Air Flow m³/h 1000 850 2160 2000 1700 3000 2550 3200
Air Throw m 3 3 5 4 4 6 5 7
Fan Mot.Amper A 0.42 0.42 0.84 0.84 0.84 1.26 1.26 1.68
Fan Mot.Power W 85 85 170 170 170 255 255 340
In Tube Inch. 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Out Tube Inch 5/8 5/8 5/8 5/8 7/8 7/8 7/8 7/8
Net Weight kg 13 16 19 22 28 32 40 52
Drawing No. ㊲ ㊲ ㊳ ㊳ ㊳ ㊴ ㊴ ㊵
300mm Fin Spcing 7mm
Models AE301C4 AE301C6 AE302C3 AE302C4 AE302C6 AE303C4 AE303C6 AE304C6
SC2 KW Ta 0℃ R22 1.3 1.6 2.2 2.6 3.2 4 4.9 5.9
Te -8℃ R404A 1.3 1.6 2.3 2.7 3.3 4.1 4.9 6
SC3 KW Ta -18℃ R22 0.9 1.1 1.5 1.9 2.3 2.7 3.2 3.8
Te -25℃ R404A 0.9 1.1 1.5 1.9 2.3 2.7 3.3 3.9
Tube Length m 13 19 19 26 39 39 58 71
Surface ㎡ 3.4 5 5 6.7 10.1 10.1 15.1 18.4
Circuit Vol. dm³ 1 1.5 1.5 2 3.1 3.1 4.6 5.6
Fan Mot.No. 1 1 2 2 2 3 3 4
Air Flow m³/h 1150 1020 2500 2300 2040 3450 3060 4000
Air Throw m 4 4 6 5 5 7 6 8
Fan Mot.Amper A 0.42 0.42 0.84 0.84 0.84 1.26 1.26 1.68
Fan Mot.Power W 85 85 170 170 170 255 255 340
Electric Defrost A 4.5 6.8 9.1 9.1 13.6 13.6 20.5 24.5
Electric Defrost W 1000 1500 2000 2000 3000 3000 4500 4500
In Tube Inch. 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Out Tube Inch 5/8 5/8 5/8 5/8 7/8 7/8 7/8 7/8
Net Weight kg 13 16 19 22 28 32 40 52
Drawing No. ㊲ ㊲ ㊳ ㊳ ㊳ ㊴ ㊴ ㊵

300mm Fin Spacing 4.0mm
Models BT301R3 BT302R3 BT302R4 BT302R5 BT303R4 BT303R5 BT304R5
t1=-3℃ Capacity KW 3.1 5.2 7.5 8.4 11 12.6 15.7
t2=2℃ GIycoI FIow 0.16 0.27 0.39 0.44 0.57 0.66 0.81
ta=10℃ Pressure Drop kPa 93.5 46.9 108.6 60.3 101.6 73.7 69.6
Tube Length m 16 27 36 45 53 66 81
Surface ㎡ 9.8 16.3 21.7 27.2 31.9 39.9 48.9
Circuit Vol. dm³ 2.2 3.7 4.9 6.2 7.2 9 11.1
Fan Mot.No. 1 2 2 2 3 3 4
Air Flow m³/h 1350 2500 2400 2350 3600 3500 4600
Air Throw m 4 6 6 5 7 6 6
Fan Mot.Amper A 0.3 0.6 0.6 0.6 0.9 0.9 1.2
Fan Mot.Power W 90 180 180 180 270 270 360
Electric Defrost A 2.3 3.6 3.6 3.6 5.5 5.5 6.8
Electric Defrost W 1500 2400 2400 2400 3600 3600 4500
In Tube Inch. 1/2 5/8 5/8 5/8 5/8 7/8 7/8
Out Tube Inch 1/2 5/8 5/8 5/8 5/8 7/8 7/8
Net Weight kg 22 34 35 37 56 59 66
Drawing No. ㊶ ㊷ ㊷ ㊷ ㊸ ㊸ ㊹
400mm Fin Spacing 4.0mm
Models BT401R4 BT402R3 BT402R4 BT402R5 BT403R4 BT403R5 BT404R5 BT405R5
t1=-3℃ Capacity KW 6.7 9.5 12.4 14.6 20.4 24.2 29.2 38.7
t2=2℃ GIycoI FIow I/s 0.35 0.49 0.64 0.76 1.06 1.26 1.51 2.01
ta=10℃ Pressure DropkPa 94.4 66.3 65.1 61.2 104.6 106.5 92 107.5
Tube Length m 28 42 56 70 84 105 129 172
Surface ㎡ 17 25.4 34 42.4 51 63.6 77.7 103.6
Circuit Vol. dm³ 3.8 5.8 7.7 9.6 11.5 14.4 17.6 23.5
Fan Mot.No. 1 2 2 2 3 3 4 5
Air Flow m³/h 2600 5500 5200 4900 7800 7350 9500 12000
Air Throw m 7 10 9 9 10 10 11 12
Fan Mot.Amper A 0.5 1 1 1 1.5 1.5 2 2.5
Fan Mot.Power W 200 400 400 400 600 600 800 1000
Electric Defrost A 2.3 4.5 4.5 4.5 6.8 6.8 8.2 10.9
Electric Defrost W 1500 3000 3000 3000 4500 4500 5400 7200
In Tube Inch. 5/8 5/8 7/8 7/8 7/8 7/8 1-1/8 1-1/8
Out Tube Inch 5/8 5/8 7/8 7/8 7/8 7/8 1-1/8 1-1/8
Net Weight kg 35 51 54 57 80 85 105 130
Drawing No. ㊺ ㊻ ㊻ ㊻ ㊼ ㊼ ㊽ ㊾
