Digital Innovative Temperature Controller
Digital Innovative Temperature Controller
Digital Innovative Temperature Controller
Digital Innovative Temperature Controller
Digital Innovative Temperature Controller
Digital Innovative Temperature Controller
Digital Innovative Temperature Controller
Digital Innovative Temperature Controller
Specifications
Brand Name :
Dixell
Model Number :
XR Series
Certification :
CE/ UL
Place of Origin :
China/Italy
MOQ :
1pcs
Price :
discussed
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
Carton box
Control Type :
Digital
Application :
Refrigeration Parts
Colour :
Black
Usage :
temperature control
Export Markets :
Global
Power supply :
110, 230Vac
Description

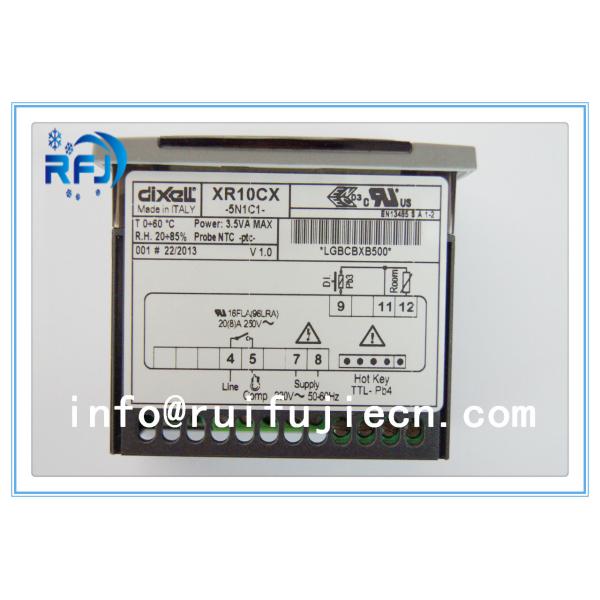

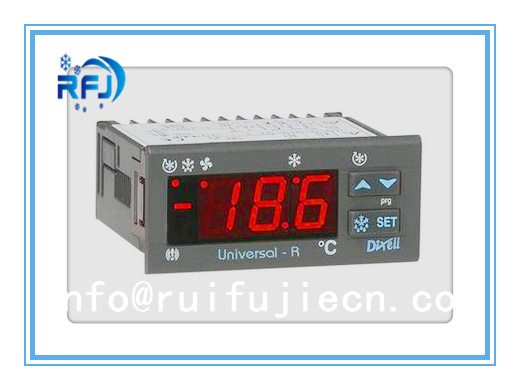

DIXELL Digital innovative temperature controller with off cycle defrost 110, 230Vac XR Series XR10CX ,XR20CX,XR60CX

DIXELL digital temperature controller

Specifications:

Dixell Controller

DIGITAL CONTROLLER WITH "OFF CYCLE" DEFROST

Generals

  1. Power supply: 110, 230Vac
  2. Probe inputs
  3. Thermostat: NTC
  4. Digital inputs
  5. Alarm, start defrost, AUX, door switch, pressure switch: Configurable
  6. Relay outputs
  7. Compressor: 8A, 20A optional

Product details:

1.Shell: ABS sublight flame retardant plastic;

2.Dimensions: front 32x74 mm;Deep 60 mm

3.Mounting dimensions: fixed in the open hole for 71x29mm panel;

4.Display: 3 red digital tubes, 14.2 mm high;Input: no. 3 NTC or PTC input

5.Digital input: 1 channel passive digital signal input

6.Output relay: compressor/plus hotline: 20(8)A 250Vac

7.Data storage: electrically erasable electronic writing memory (EEPROM).

8.Control level: 1B;Environmental level: 2;Software level: A;

9.Maximum insulation voltage: 2500V;Grade of overvoltage: II;

10.Working temperature: 0 ~ 60 ° C;Storage temperature: - 30 ~ 85 ° C.

11.Relative humidity: 20~85RH% (unexposed)

12.Measure and control temperature range: NTC: - 40 ~ 110 ° C;PTC: - 50 ~ 150 ° C

More Models as below:

XR01CX-5N0C1 XR02CX
XR03CX-5N0C0 XR03CX
XR04CX-5N0C1 XR04CX
XR06CX-5N0C1 XR06CX
XR10CX-5N0C1 XR10CX
XR30CX-5N0C1 XR30CX
XR40CX-5N0C1 XR40CX
XR60CX-5N0C1 XR60CX
XR30CX-5R0C1 XR20CX
XR60CX-5R0C1 XR70CX

Digital Innovative Temperature ControllerDigital Innovative Temperature Controller
