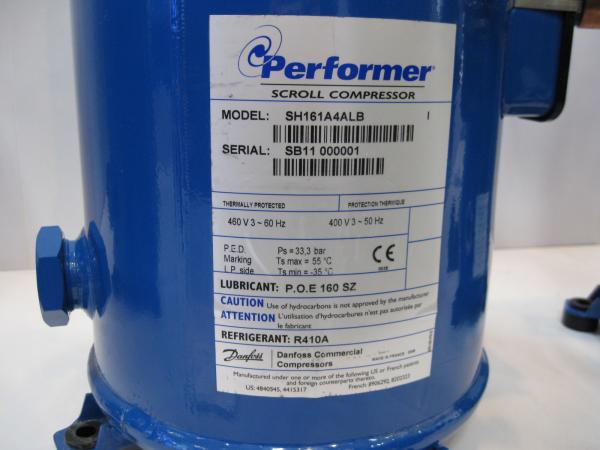

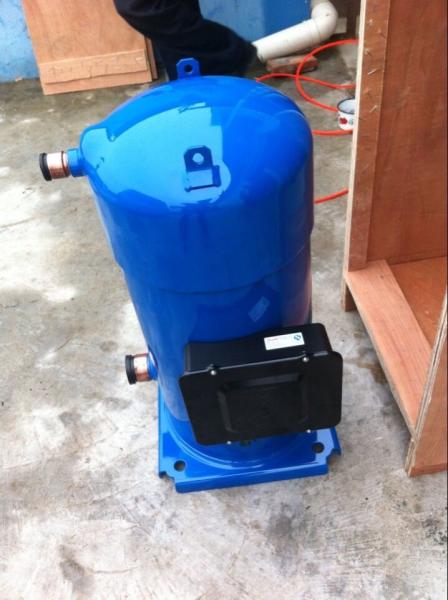

13 HP Air Conditionary Scroll compressor SH161A4ALB R410a 380V/50HZ
13 HP Air Conditionary Scroll compressor SH161A4ALB R410a 380V/50HZ
13 HP Air Conditionary Scroll compressor SH161A4ALB R410a 380V/50HZ
13 HP Air Conditionary Scroll compressor SH161A4ALB R410a 380V/50HZ
13 HP Air Conditionary Scroll compressor SH161A4ALB R410a 380V/50HZ
13 HP Air Conditionary Scroll compressor SH161A4ALB R410a 380V/50HZ
13 HP Air Conditionary Scroll compressor SH161A4ALB R410a 380V/50HZ
13 HP Air Conditionary Scroll compressor SH161A4ALB R410a 380V/50HZ
Specifications
Brand Name :
Performer
Model Number :
SH161
Certification :
CE, ROHS
Place of Origin :
China/Europe
MOQ :
1pcs
Price :
discussed
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000pcs per month
Delivery Time :
7-10 working days after receiving payment
Packaging Details :
Wooden case
Piston Type :
scroll
Configuration :
Stationary
Power Source :
AC Power
Lubrication Style :
Lubricated
Gas :
R404A/ R134A/R22/
Drive Mode :
Electric
Horse Power :
13 HP
Watt :
47200
Btu/h :
160900btu
KW :
14.43kw
Net Weight :
69.00 KG
Gross Weight :
75.00KG
Color :
Blue
Type :
Scroll
Description

13 HP Air Conditionary Scroll compressor SH161 R404A/ R134A/R22

Specification:

Maneurop Compressor
1,SH380,SH300,SH240,SH180,SH161
2,MT,MTZ series
3,SH,SY,SZ,SM series
4,MTM,MTZ,LTZ tandem series
Type: Hermetic scroll compressors
Producer: Performer
Series: SH

Model: SH161

Technical data
Displacement [m³/h]: 26,4
Swept volume [cm³/rev]: 151,7
RPM [min-1]: 2900
Weight [kg]: 69
Oil charge [dm³]: 3,3
Oil type: 160SZ
Maximum system test pressure low side / high side: 33/45
Maximum number of starts without softstart [1/h]: 12
Refrigerant charge limit [dm³]: 7,9
Sound power [dB]: 73,5
Refrigerant: R410A

Connections

milimeters inches
Suction connection with supplied sleeve: 35 1 3/8''
Discharge connection with supplied sleeve: 22 7/8''
Standard equipment
  • rubber vibration absorbers
  • oil sight glass
  • oil equalization

Optional equipment
  • belt type heater
  • soft-start kit
  • discharge thermostatic protection

Application
  • medium evaporating temperature
    (R410A from 20 ºC to -30 ºC)

Performer compressors is a type of scroll compressors used for both 50Hz and 60Hz,

can be used for R22a,R407c

1. SM/SY series for R22

2. SZ series for R407c

3. Horse power range from 7 HP to 25 hp

SM/SZ series.

*7 to 25 HP.

*R22/R407C refrigerant

COMPRESSOR MODELS FOR R22:

SM084

SM090

SM100

SM110

SM115

SM120

SM125

SM148

SM160

SM161

SM175

SM185

SY240

SY300

COMPRESSOR MODELS FOR R407C:

SZ084

SZ090

SZ100

SZ110

SZ115

SZ120

SZ125

SZ148

SZ160

SZ161

SZ175

SZ185

SZ240

SZ300

SM series:

SM084-4VM(7HP)

SM090-4VM(7.5HP)

SM100-4VM(8HP)

SM110-4VM(9HP)

SM115-4VM(9.5HP)

SM120-4VM(10HP)

SM125-4VM(10HP)

SM148-4VM(12HP)

SM160-4VM(13HP)

SM185-4VM(15HP)

SZ seires:

SZ084-4VM(7HP)

SZ090-4VM(8HP)

SZ100-4VM(8HP)

SZ110-4VM(9HP)

SZ120-4VM(10HP)

SZ148-4VM(12HP)

SZ161-4VM(13HP)

SZ/Y185-4VM(15HP)

We can supply more compressor models as below:

Model Refrigerant Power Net Weight
SZ100-3/9VM R134A/R407C 8HP 72KG
SZ110-3/9Vm 9HP 72KG
SZ120-3/9VM 10HP 80KG
SZ125-3RM 10HP 80KG
SZ148-3/9VAM 12HP 86KG
SZ161-T3/9VC 13HP 86KG
SZ/Y185-3/9CAM 15HP 103KG
SZ240A3/9CBM 20HP 160KG
SZ300A3/9CBM 25HP 160KG
SM084-4VM R22 7HP 72KG
SM090-4VM 7.5HP 72KG
SM100-4VM 8HP 72KG
SM110-4VM 9HP 80KG
SM112A4ACB 9HP 80KG
SM115-4CAM 9.5HP 80KG
SM120-4VM 10HP 80KG
SM148-4VAM 12HP 86KG
SM125-4CAM 10HP 80KG
SM124A4ACB 10HP 80KG
SM147A4ACB 12HP 86KG
SM161-4VAM 13HP 86KG
SM160-4CBM 13HP 93KG
SM175-4CAM 14HP 103KG
SM175-4RM 14HP 103KG
SM185-4CAM 15HP 103KG
SM185-4RM 15HP 103KG
SY240A4CBM 20HP 160KG
SY300ACBM 25HP 160KG
SY300A4CAM 25HP 160KG
SY380A4CBM 31HP 225KG
