RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
Specifications
Brand Name :
RUIDA
Model Number :
RDC5121G
Certification :
CE FCC ROHS
Place of Origin :
Mainland China
Price :
Negotiable - Inquire Within
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
240*160*120
MOQ :
50
Supply Ability :
100 sets/day
Delivery Time :
5-8 work days
Axis :
2
Laser source :
CO2 glass tube, CO2 RF tube and UV lasers
Laser channel :
1
Drive mode :
External servo/steeping driver
Communication :
USB
Firmware :
Remote upgrade mainboard and panel program
Encryption :
Support
Software :
RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Panel :
2''character screen + keys
Language :
Simplified Chinese, traditional Chinese, English and Japanese
Description

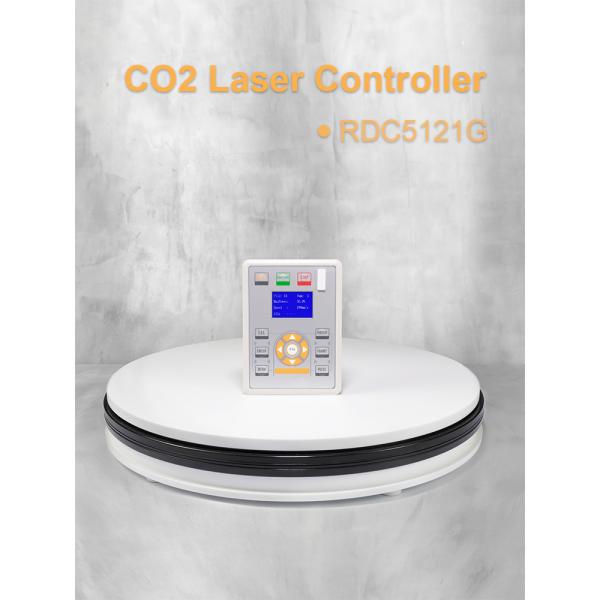

Ruida RDC5121G CO2 Laser Controller For Non-Metal Processing With 2-Axis Control And USB Communication

Discroption of RDC5121G:

The RDC5121G is a cost-effective control system designed for laser cutting and engraving, capable of operating offline. It supports 2-axis control and XY-axis interpolation, compatible with both CO2 glass tube and metal RF laser tubes, and offers single laser control. Featuring a 2-inch character display, it is designed for offline operations and is widely applicable in various non-metal processing industries.

Key Feature:

1. Autonomous Operation: Capable of standalone functioning without the need for continuous connectivity.
2. USB and Flash Disk Support: Facilitates data transfer and operation through USB and U flash disk.
3. Compact Design: The panel and mainboard are integrated, resulting in a compact and space-saving design.
4. Multi-Axis Motion Control: Supports two motion axes and offers a variety of laser interfaces.
5. Software Compatibility: Compatible with the standalone application software RDWorksV8, supporting plug-in software and virtual printing.
6. Non-Metal Cutting Specialization: Ideal for industries dealing with leather, fabric, signage, crafts, gift items, toys, and 3C applications.

RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication

Technical Parameters:

Parameters RDC5121G
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Drive mode External servo/steeping driver
Axis 2
Laser channel 1
Double heads synchronous Not Support
Communication USB
Panel 2'' character screen + keys
Feeding Not Support
Encryption Support
Firmware Remote upgrade mainboard and panel program
Rotary Y axis rotation
Engraving Plane engraving, slope engraving and gray engraving
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language Including simplified Chinese, traditional Chinese, English and Japanese
Size L110mm*W150mm*H25.5mm
Accessories Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
