RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
Specifications
Brand Name :
RUIDA
Model Number :
RDC6445G-MOD5
Certification :
CE FCC ROHS
Place of Origin :
Mainland China
Price :
Negotiable - Inquire Within
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
MOQ :
50
Delivery Time :
5-8 work days
Packaging Details :
Carton Packing
Axis :
4
Pecision :
+/-0.5 pulse
Laser channel :
2
Communication :
Ethernet, USB and WIFI (optional)
Virtual print :
Support
Panel :
5˝touch screen based on MODBUS protocol
Customize :
Support
Laser source :
CO2 glass tube, CO2 RF tube and UV lasers
Encryption :
Support
Feeding :
U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Description

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Controller

Discroption of RDC6445G-MOD5:

The RDC6445G-MOD5 system based on the MODBUS RTU communication protocol -With open-source HMI, provide the source code of HMI for customers to customize HMI operation pages based on the configured development environment.Compatible with most touch screens based on this protocol in the market.

Product feature:

1. Adopt HMI open-source system. Users can quickly customize HMI operation pages based on the configured development environment.
2. Based on MODBUS RTU communication protocol, it is compatible with most touch screens based on this protocol.
3. Support 4 motion axes, two laser interfaces and multi-channel general IO input and output.
4. Support single/double laser head processing, double heads synchronous processing and ultra-wide segmentation cutting processing.
5. Worked with independent application software RDWorksV8. support plug-in software and virtual printing.
6. Focus on non-metal cutting, suitable for leather, fabric, sign, craft gift, toy and 3C application fields.

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller

Technical Parameters:

Parameters RDC6445G-MOD5
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Laser channel 2
Double heads synchronous Support
Communication Ethernet, USB and WIFI (optional)
Panel 5˝touch screen based on MODBUS protocol. Users can customize the operation interface
Laser cutting Single beam
Feeding U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption Support
Onboard clock Support(the system time can be modified.)
Firmware Support the remote upgrade of mainboard and panel program
Rotary Y or U axis rotation mode is optional
Engraving Plane engraving, slope engraving and gray engraving
Processing Support resume processing after power failure
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language Simplified Chinese, English

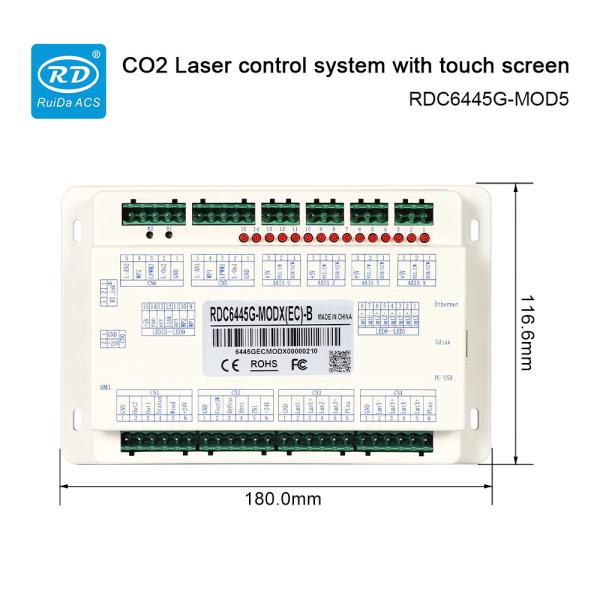

Size Panel:L81*W143.5*H16.6mm
Mainboard:L180*W116.6*H33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
