RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
Specifications
Brand Name :
RUIDA
Model Number :
RDV6332M-NET
Place of Origin :
Mainland China
Price :
Negotiable - Inquire Within
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Certification :
CE FCC ROHS
MOQ :
50
Supply Ability :
100 sets/day
Delivery Time :
5-8 work days
Packaging Details :
Carton Packing
Axis :
3
Laser source :
High power CO2 glass tube laser and RF laser
Laser channel :
2
Communication :
Ethernet, USB and WIFI (optional)
Feeding :
Z axis feeding, sheet feeding
Panel :
3.5''color screen + keys, Linux operating system
Encryption :
Support
Height controller :
Metal follow height control system
Software :
MetalCut
Firmware upgrade :
Panel and mainboard support remote upgrading
Description

Ruida RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller


Discroption of RDV6332M-NET:

RDV6332ANM-NET is a non-metal visual image laser cutting control system based on RDC6332M. It supports standard CO2 cutting and engraving of non-metal materials, independent setting of two laser channels and the positioning of non-metal height controller and vision mark point.

Product Feature:

1.Support metal and non-metal mixed cutting worked with high power CO2 laser source.
2.Worked with metal height controller, the system supports multi-channel auxiliary gas control.
3.The industrial camera based on network interface, supports the positioning cutting of Mark point.
4.The metal and non-metal mixed cutting are widely used in advertising industry.

RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller

RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting ControllerRUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting ControllerRUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting ControllerRUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller


Technical Parameters:

Parameters RDV6332M-NET
Laser source High power CO2 glass tube laser and RF laser
Axis 3
Laser channel 2
Communication Ethernet, USB and WIFI (optional)
Panel 3.5” color screen + keys, Linux operating system
Feeding Z axis feeding, sheet feeding
Height controller Metal follow height control system
Auxiliary gas Support multi-channel auxiliary gas control
Encryption Support
Onboard clock Support
Firmware Remote upgrade of mainboard and panel program
Camera Cameras of 1.3 and 5 megapixels are available. Lens of 8~12 is available.
Light source LED red and white circular light source
Cutting Metal and non-metal mixed cutting; Mark point vision positioning cutting
Engraving Plane engraving, slope engraving and gray engraving
Software MetalCut, support punching, lead, bridge and micro connection, RDWorks V8
Language Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean, Italian

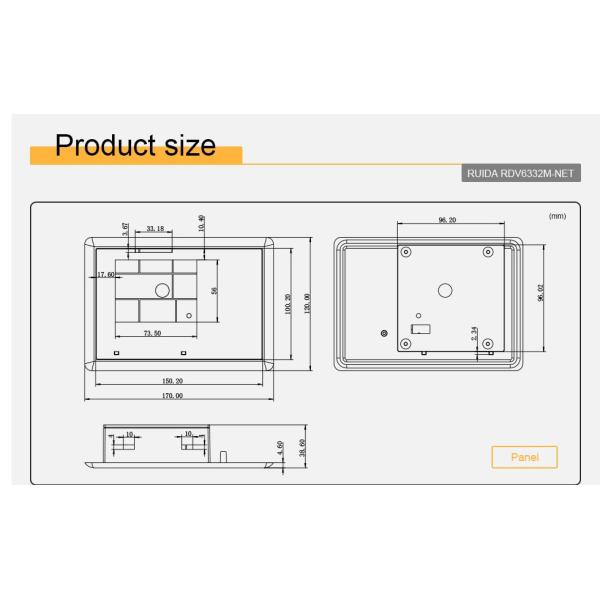

Size Panel: L170mm*W120mm*H38.6mm
Mainboard: L220.5mm*W134mm*H29.6mm
Accessories Wireless handle, RD-APP and RD-WIFI



RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting ControllerRUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting ControllerRUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
RUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting ControllerRUIDA RDV6332M-NET Visual Image CO2 Laser Mixed Cutting Controller
