Specifications
Brand Name :
Ruida
Model Number :
RDM4024V-PCI
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable, contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-3 work days
Packaging Details :
Carton
Laser source :
CO2, fiber and UV
Axis :
4 motion axes + 2 galvanometer shafts
Communication interface :
PCI
Axis control interface :
Pulse + dir or +/- pulse, differential two-terminal output
Camera :
1.3, 3, 5, 12 and 20 megapixels industrial network camera are available
Light source system :
Circular light source, OPDX and strip source are available
System function :
Feature matching, gray matching, custom template visual positioning marking
Installment encryption :
Support
Software :
RDMarkVision
Language :
Chinese and English
Description

Ruida Laser Marking Controller RDM4024V PCI with 4 motion axes and 2 galvo axes supporting CO2 fiber and UV laser applications

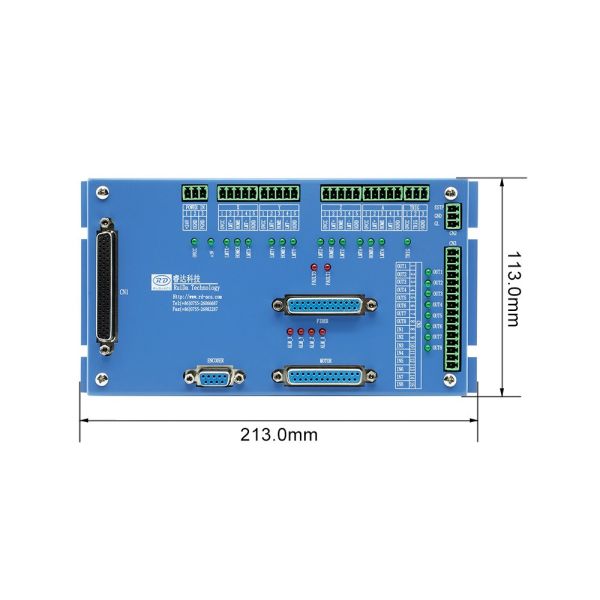

Description Of Ruida Controller RDM4024V-PCI

This system delivers high-precision vision positioning marking, specifically designed for 3C electronics applications.
It is a PCI-interface motion controller integrating industrial cameras and advanced image processing algorithms for accurate recognition and positioning.

The controller supports 4 motion axes plus 2 galvanometer axes, and features rich laser interfaces along with multiple external I/O resources.
A complete optical tooling and illumination system ensures stable performance and consistent marking quality.

Parameter RDM4024V-PCI
Laser CO2, fiber and UV
Axes 4 motion axes + 2 galvanometer shafts
Communication interface PCI
Axis control interface Pulse + dir or +/- pulse, differential two-terminal output
Camera 1.3, 3, 5, 12 and 20 megapixels industrial network camera are available
Light source system Circular light source, OPDX and strip source are available
System function Feature matching, gray matching, custom template visual positioning marking
Installment encryption Support
Firmware upgrade Remote upgrade of mainboard program
Software RDMarkVision
operating system WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language Chinese and English

Key Functions of Vision-Assisted Marking System

  1. Advanced graphics and image recognition enable precision vision positioning marking with intelligent target feature learning

  2. Works with RDMarkVision software, featuring automatic correction for vision-assisted galvanometers, supporting visual positioning recognition, assembly line anti-duplicate marking, and custom motion path recognition

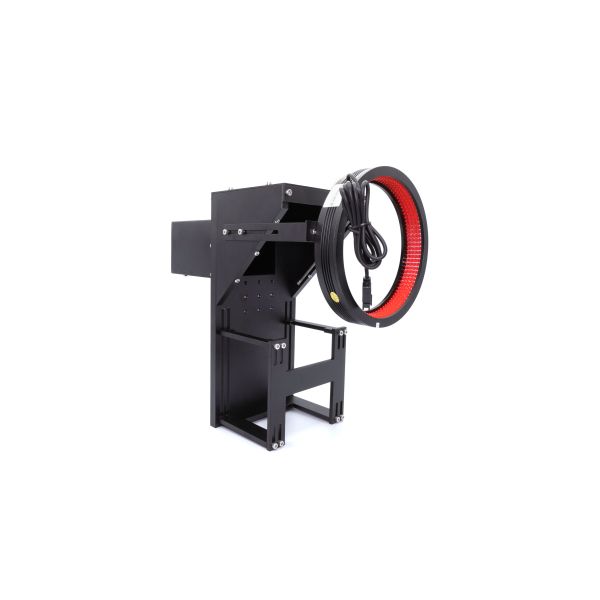

  3. Complete optical fixture and illumination system for stable and consistent marking quality

  4. Supports multiple visual positioning methods, including feature matching, grayscale matching, and custom templates

  5. Compatible with CO₂, UV, and fiber laser marking systems, offering versatile material and application support

Ruida Laser Marking Controller RDM4024V PCI with 4 motion axes and 2 galvo axes supporting CO2 fiber and UV laser applications

Application Fields

The system supports multiple laser types for versatile marking applications:

  • CO₂ Laser: Ideal for wood, leather, plastics, and paper marking

  • Fiber Laser: Perfect for metals and alloys such as stainless steel, aluminum oxide, copper oxide, as well as jewelry, electronic components, batteries, chargers, and switches

  • UV Laser: Designed for precision marking in electronics, including plastic, PVC, PCBs, cables, chips, LCD screens, glass, and food packaging

Ruida Laser Marking Controller RDM4024V PCI with 4 motion axes and 2 galvo axes supporting CO2 fiber and UV laser applications

Software RDMarkVision(Free)

Support PLT, DXF, DSB, DST, SVG, BMP, JPG and other file formats import, display and edit functions, support image file import and processing. Support simplified Chinese, traditional Chinese, English and other languages

Ruida Laser Marking Controller RDM4024V PCI with 4 motion axes and 2 galvo axes supporting CO2 fiber and UV laser applications

Ruida Laser Marking Controller RDM4024V PCI with 4 motion axes and 2 galvo axes supporting CO2 fiber and UV laser applications

Product Certification

All products passed CE, RoHS and FCC certification, in line with safety production standards.

Ruida Laser Marking Controller RDM4024V PCI with 4 motion axes and 2 galvo axes supporting CO2 fiber and UV laser applications

Package List

Ruida Laser Marking Controller RDM4024V PCI with 4 motion axes and 2 galvo axes supporting CO2 fiber and UV laser applications

Shipping and Payment

Ruida Laser Marking Controller RDM4024V PCI with 4 motion axes and 2 galvo axes supporting CO2 fiber and UV laser applications
