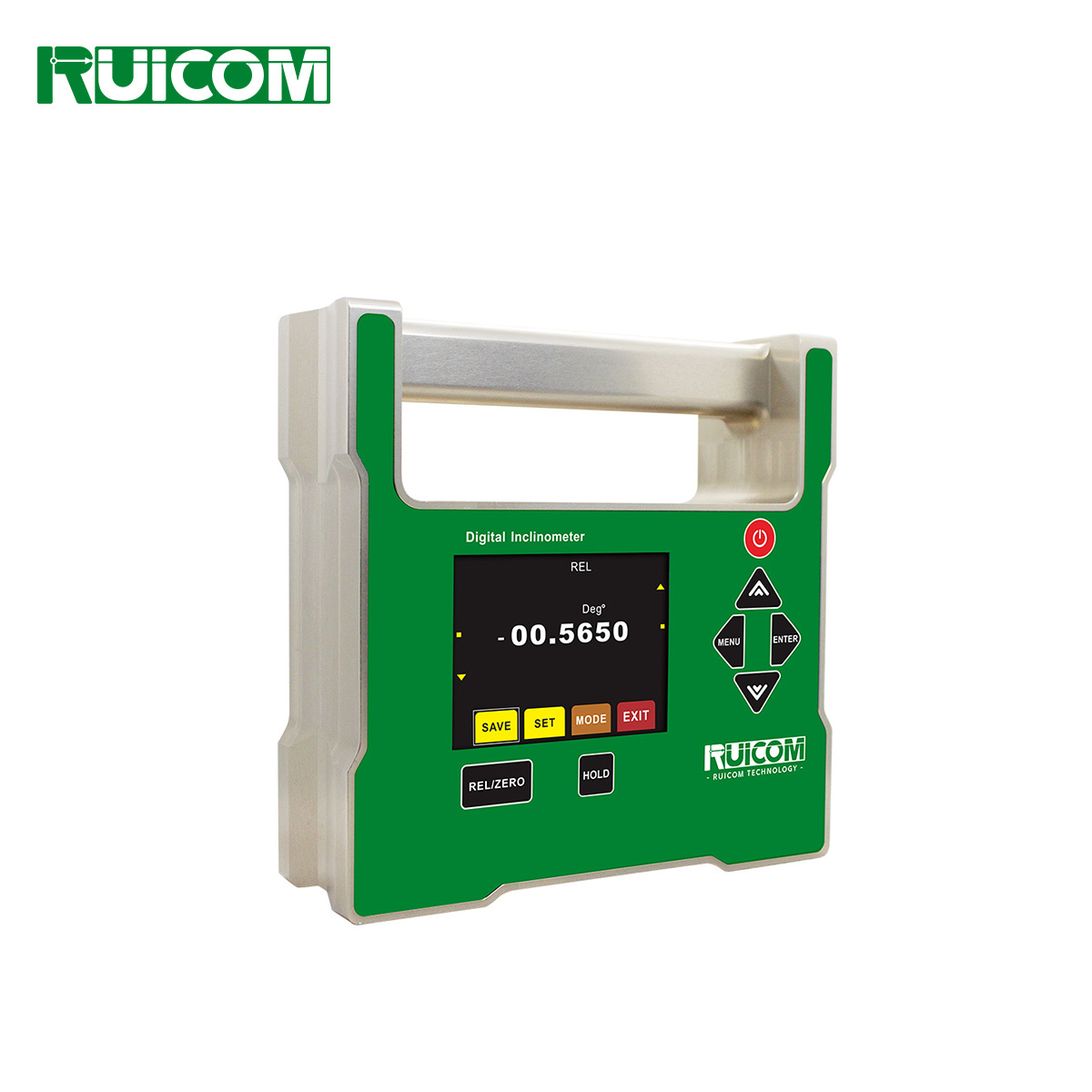

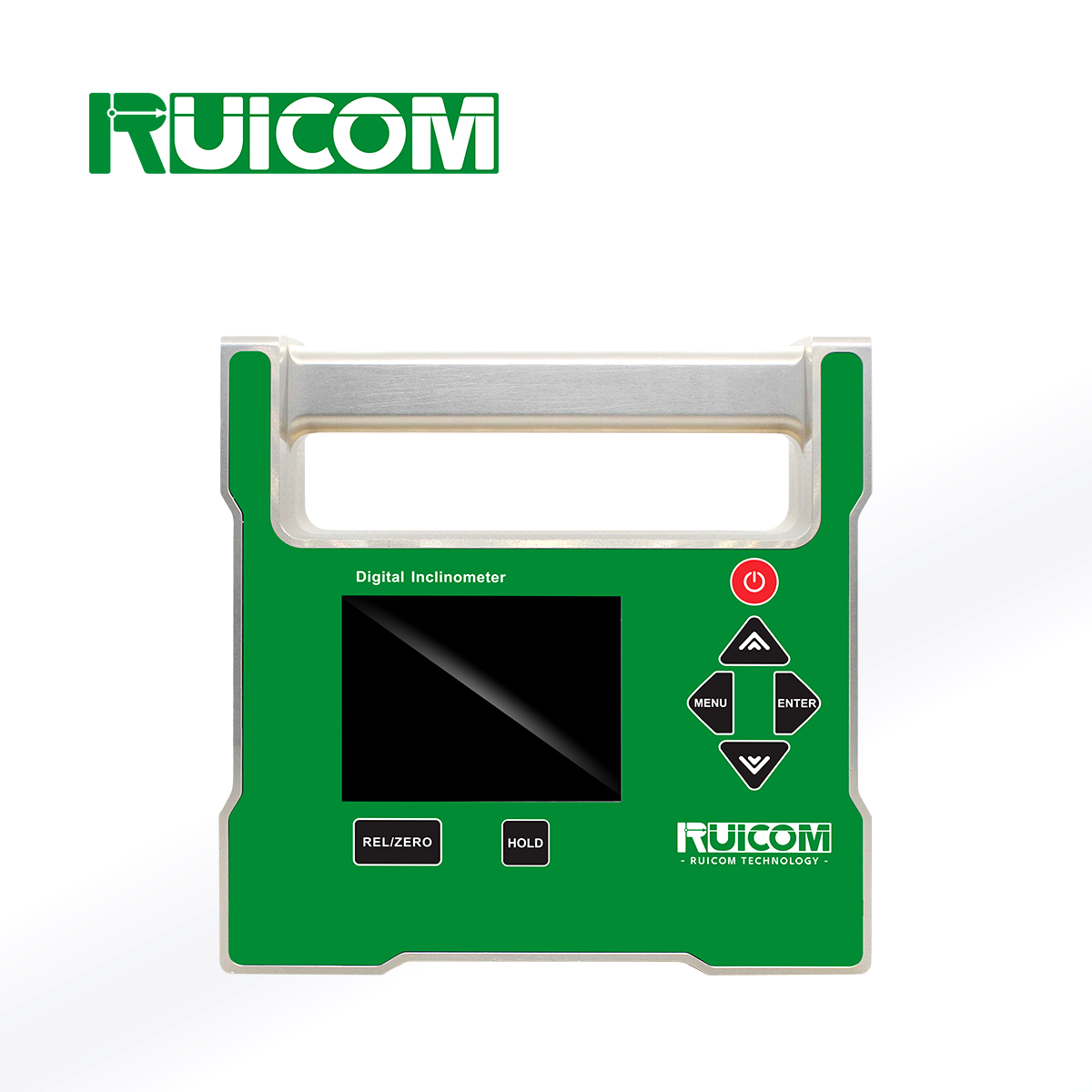

GDS850 High Precision Handheld Digital Inclinometer Single Axis
GDS850 High Precision Handheld Digital Inclinometer Single Axis
GDS850 High Precision Handheld Digital Inclinometer Single Axis
GDS850 High Precision Handheld Digital Inclinometer Single Axis
GDS850 High Precision Handheld Digital Inclinometer Single Axis
GDS850 High Precision Handheld Digital Inclinometer Single Axis
Specifications
Model Number :
GDS850
Measurement Range :
±30°
MOQ :
1
Brand Name :
RUICOM
Axis :
Single Axis
Supply Ability :
100000 pieces/year
Payment Terms :
T/T
Delivery Time :
7-15days
Certification :
CE, RoHS
Place of Origin :
Shenzhen, China
Description

The GDS850 is a level gauge developed by RUICOM Technology based on a high-precision tilt measurement platform. It uses a built-in MEMS sensor to sense the Earth's gravitational field, thereby obtaining the horizontal tilt angle of an object. Its built-in 32-bit microprocessor can perform high-resolution sampling of the weak current and tilt angle ratio signals from the front end, achieving an accuracy of 0.002° and a resolution of 0.0005°. The device supports on-site data saving and playback, is suitable for leveling and measuring on high-precision platforms, and features good scalability, ease of operation, industrial-grade reliability, and a competitive price-performance ratio, making it competitive in the international market.


Technical Characteristics

❖ Measurement range: ±30°;

❖ Optimal accuracy: <0.002°;

❖ Angular resolution: 0.0005°;

❖Capable of recording key measurement data;

❖ Customers can calibrate the zero point themselves;

❖ Dual strong magnetic measuring surfaces on the bottom left.

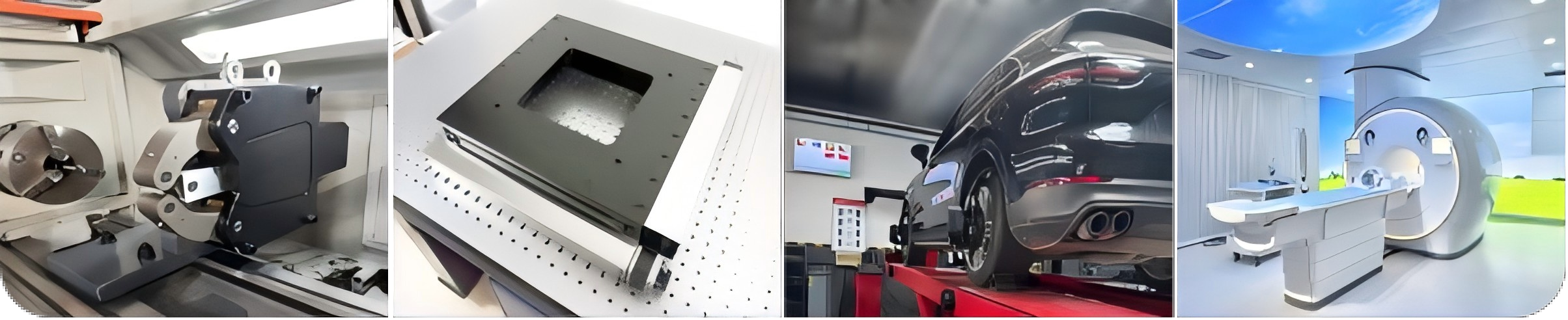

Application Field

❖ Architectural surveying ❖ Vehicle alignment and four-wheel calibration

❖ Road and slope gradient detection ❖ Medical equipment attitude measurement

❖ Tooling and fixture leveling and control ❖ Camera pan-tilt head angle calibration

❖ Mechanical equipment installation and leveling ❖ Pipeline laying and angle control

GDS850 High Precision Handheld Digital Inclinometer Single Axis


Specifications

GDS850

Parameter

Unit

Angle Measurement Range

±30

°

Measuring Axis

Single axis

Maximum Measurement Accuracy

<0.002 (＜5°) <0.003 (5°-30°)

°(RMS)

Angle Measurement Resolution

0.0005

°

Measurement Mode

degrees, millimeters/meters Two modes can be set

/

LCD

64-color true-color luminous display screen

/

LCD Viewable Area Size

L60*W45

mm

Operating Temperature

-10°~ +70℃

°/℃

Operating Humidity

85

%RH

Power Supply

2A AA batteries

/

Battery Continuous Working Time

6

h

Vibration Resistance

10g@11ms, triaxial (half-sine wave)

g

Shock Resistance

10grms / 10~100Hz

g

Weight

1200g

g

Waterproof Rating

IP54

/

Material

Anodized aluminum alloy

/

Dimensions

L140*W140*H45mm

mm


Product Dimensions

Housing: 140×140×45mm

GDS850 High Precision Handheld Digital Inclinometer Single Axis
