Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys
Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys
Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys
Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B120KP-DT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Dimension :
120.0mm x 110.0mm x 30.0mm
Interface :
USB, PS/2, RS232
Mounting :
Desktop movable
Material :
304 stainless steel
Key travel :
0.45mm short stroke
Description
APPLICATION
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gasstations, cash machines (ATMs/CDM), Internet public phones etc.

Descriptions:

MECHANICAL DATA
Actuator/keys: 16 keys
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
Switch life: more than 1 million of operations.
G.W.: 1.0KGs
Dimensions: 120.0mm x 110.0mm x 30.0mm
ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20°C to +60°C
Storage temperature: -30°C to +70°C
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.


RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP68(front panel)
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min

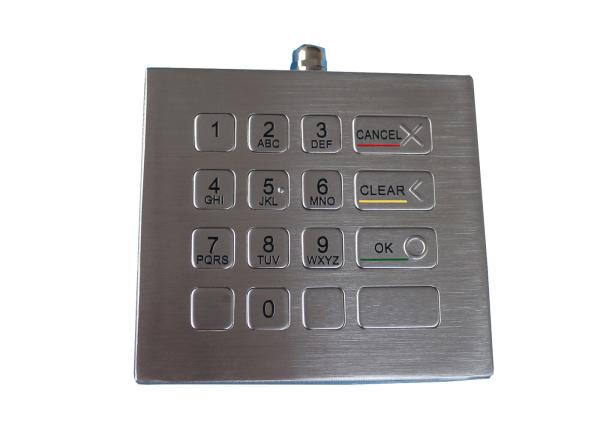

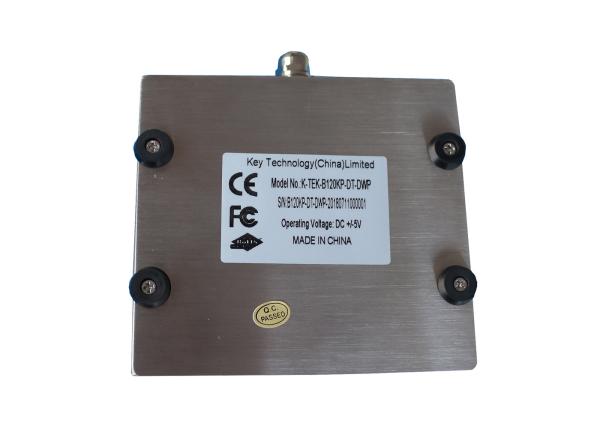

Actual Photo:

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys

Our Exhibitions:

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys

Our Sample room:

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys

Desktop IK09 Vandal Proof Keypad Brushed Metal RS232 With 16 Keys
