Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC
Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC
Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC
Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC
Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC
Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M312TP-FN-BL-NV-EMC-151B-DT
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Application :
Military
Material :
Silicone Rubber
Keys :
89
Backlight :
Yes
Interface :
Aviation plug or USB2.0
Mounting Housing :
aluminum housing
Description

DIMENSIONS: 312.0mm x 215.1mm x 22.0 ~40.4mm (L x W x H)

Special Features:

1: 89 keys IP67 dynamic ruggedized silicone rubber military keyboard with sealed and tough touch pad for fast and accurate cursor position
2: 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, the overall key layout is compact, with military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment,
3: FN+CLEAN combination key to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from computer. The electronics controller module is shielded and protected by aluminum housing, inclined mountable desk top version with VESA mounting holes on backside, white backlight included (red/green/blue optional).
4: Military level, designed to Meet MIL-STD-461G with EMC and MIL-STD-810F (wide temperature, shock, vibration, fungus, humidity etc.), with strong anti-interface, stability and low radiation performance.



MECHANICAL DATA:

Key

89 keys

Key top style

Protuberant rectangular keys with tactile feeling

Touchpad cover

Composite

X/Y position sensing resolution

40 counts/mm

X/Y position reporting

Relative

Output

Aviation plug or USB2.0

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5 VDC ± 0.25V

Current rating (active mode)

 50mA (non-backlight) , 300mA (with backlight on)

Key Size
12.2mm x 13.3mm for normal keys, 12.0mm x 10.0mm for FN(F1,F2....F12) keys, 22.9mm x 13.3mm for Enter key,
28.9mm x 13.3mm for Shift key, and 101.2mm x 13.3mm for Space bar key
Operating temperature:
-40℃ to +60℃

G.W.

 2.0KGs

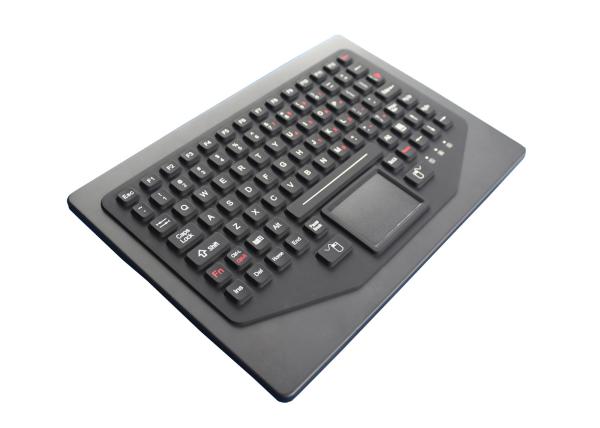

Front View
Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC

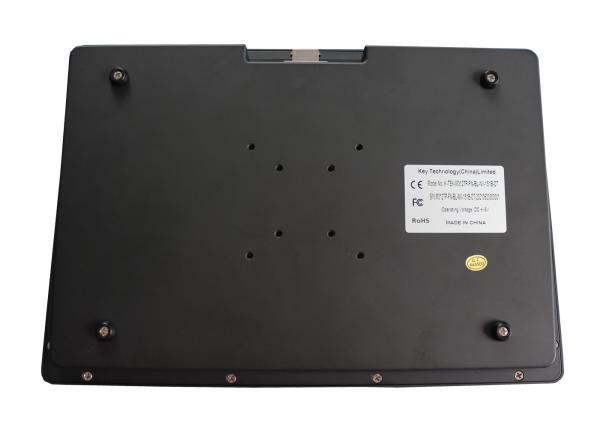

Back View
Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC


Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC


Wide Temperature Silicone Rubber Keyboard IP67 Dynamic With EMC
