Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk
Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk
Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk
Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk
Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk
Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk
Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk
Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk
Specifications
Brand Name :
IKB-MKB
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
US
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Model Number :
K-TEK-A12KP-AC-BL
Panel mounting :
Rear panel mounting
Key numbers :
12 keys
Materials :
Zinc alloy
Switch life :
More than 5 million of operations
Dimensions :
69.0mm x 72.00mm
Interface :
Dot matrix
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Description

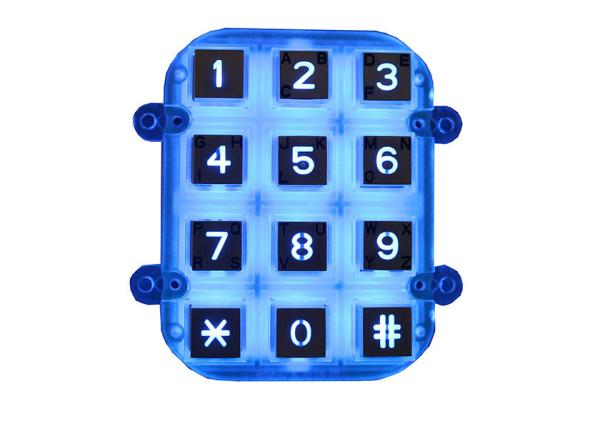

IP65 Vandal Proof Panel Mount 12 Keys Metal Keypad For Access Entry Kiosk


Descriptions:
12 keys compact format IP 65 vandal proof metal dot matrix keypad with Zinc alloy chromed keys and frame, with industrial PCB with carbon-on-gold key switch with long stroke 2.0mm, rear panel mounted, dot matrix keypad without electronics controller. Blue backlight Included.
Dimensions: 69.0mm x 72.00mm (front panel)


Main components
1) Alloy chrome-plated button and framework
2) Natural electrical conductive silicon rubber
3) Epoxy resin gilding


PCB Users choice
1)Button chrome-plated colors: polished or sandblasted chrome.
2) Zinc alloy – plated of the framework’s colors: polished or sandblasted chrome

MECHANICAL DATA ELECTRICAL DATA
Keys: 12 keys, Zinc alloy
Key Size: 10.0mm x 10.0mm
Key travel: 2.0mm
Switch life: more than 5 million of operations.		 Working voltage: DC 9v+/-5%
Lifespan: >5 years
Key switch: Natural electrical conductive silicon rubber
Pin pitch space: 2.54mm
Working temperature: -20℃+60℃
Storage temperature:-30℃+70℃
Operating RH: 30-90%
Atmospheric pressure 80~106kPa
Force 160-180 grams, nimble dial-up
Contact resistance<100 Ω

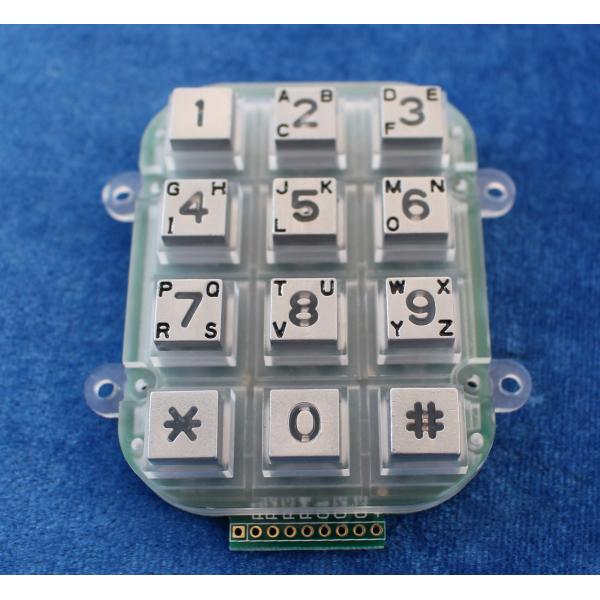

Actual Photo:

Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk

Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk

Our Company:

Panel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry KioskPanel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry KioskPanel Mount 12 Keys Metal Mechanical Keyboard Zinc Alloy IP65 For Access Entry Kiosk
