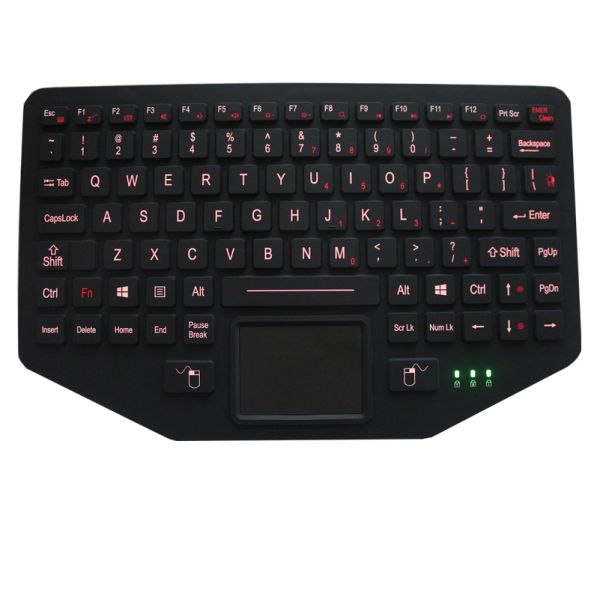

5VDC 91 Keys IP67 Dynamic Silicone Rugged Keyboard with touchpad
5VDC 91 Keys IP67 Dynamic Silicone Rugged Keyboard with touchpad
5VDC 91 Keys IP67 Dynamic Silicone Rugged Keyboard with touchpad
5VDC 91 Keys IP67 Dynamic Silicone Rugged Keyboard with touchpad
5VDC 91 Keys IP67 Dynamic Silicone Rugged Keyboard with touchpad
5VDC 91 Keys IP67 Dynamic Silicone Rugged Keyboard with touchpad
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M275TP-FN-BL-MS-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
OEM :
Yes
application :
military
connection :
USB, PS2
material :
rubber
Housing :
optional
backlight :
red
Description

5VDC 91 Keys IP67 Dynamic Silicone Rugged Keyboard with touchpad


DIMENSIONS: 284.8mm x 179.5mm (L x W)

DESCRIPTION:

91 keys IP67 dynamic water proof sealed & ruggedized silicone rubber industrial keyboard with full keyboard
functionalities with sealed & ruggedized tough touchpad for fast and accurate cursor position, 12 FN keys (F1, F2...F11,F12)
are on the top line for easy operation, with industrial PCB with industrial membrane key switch technology with 1.5mm with
extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial
keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key for easy
cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, avoid mis-operation during
cleaning process, adjustable industrial backlight included, top panel mounted version. VESA mountable super flat desk top
version with robust ABS polycarbonate case optional, industrial level. military level optional.

Special Features:

1. Keyboard with NVIS-compliant red adjustable backlighting included, while NVIS backlighting makes this keyboard ideal

for aviation or vehicle applications where night vision goggles are necessary


2. Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality

The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt,
grease and corrosive liquid, which means it can withstand directed hose water, disinfectants, environmental
contaminants and heavy industrial use.


3. FN + Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval

with minimal downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
Special durable-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.5mm key travel.

4. With firm tactile key feel, key travel 1.5mm key travel.

5. Actuation Force: Square key: 0.6N+/-0.1N Rectangular key: 1.5N+/-0.1N

6. Integrated capacitive multi-touch touchpad for mouse and scroll functionality.


7. keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality

8. ease of customizing with multiple languages, to accommodate foreign or custom variants

9. Ease of customizing with multiple languages, to accommodate foreign or custom variants.

USB connection (compatible with USB 1.1, 2.0, and 3.x); 5VDC +/-10%, max 250 mA, plug directly into computer like
keyboard operation, inclusive of waterproof CAP optional for USB connector
Low-profile keys for easy cleaning
Key


10. Key life: 5 million

MECHANICAL DATA:

Key

91keys

Key top style

Protuberant rectangular keys with tactile feeling.

Touchpad cover

Composite, Integrated capacitive multi-touch touchpad for mouse and scroll functionality

X/Y position sensing resolution

40 counts/mm

X/Y position reporting

Relative

Output

PS2 or USB

Tracking speed

Maximum 1,016 m/sec

Power supply voltage

5 VDC ± 0.25V

Current rating (active mode)

Key Size

Cable Length

2.0m

G.W.

 1.0KGs

Actual photos

5VDC 91 Keys IP67 Dynamic Silicone Rugged Keyboard with touchpad

5VDC 91 Keys IP67 Dynamic Silicone Rugged Keyboard with touchpad

APPLICATIONS:

This keyboard provides full-size versatility in a rugged, compact design with the added convenience of an integrated touchpad.
For working in low-light areas. This keyboard is ideal for use in environments ranging from manufacturing to material handling
to medical settings. The tactile keys allows for easy data entry, while its robust polycarbonate case protects it against any
hazardous environment.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc.;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses

ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%
Current Rating: 30mA (non-backlight) , 300mA (with backlight on)
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan> 5 years
Switch Contact Material: Industrial membrane key switch technology
Interface: PS2, USB available.
Cable length: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

MAIN FEATURES:

Keyboard with NVIS-compliant red adjustable backlighting included, while NVIS backlighting makes this keyboard ideal
for aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt,
grease and corrosive liquid, which means it can withstand directed hose water, disinfectants, environmental
contaminants and heavy industrial use.
FN + Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval
with minimal downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
Special durable-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.5mm key travel.
Actuation Force: Square key: 0.6N+/-0.1N Rectangular key: 1.5N+/-0.1N
Integrated capacitive multi-touch touchpad for mouse and scroll functionality.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
USB connection (compatible with USB 1.1, 2.0, and 3.x); 5VDC +/-10%, max 250 mA, plug directly into computer like
keyboard operation, inclusive of waterproof CAP optional for USB connector
Low-profile keys for easy cleaning
Key life: 5 million

RELIABILITY

RoHS , CE, FCC, ESD,
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
