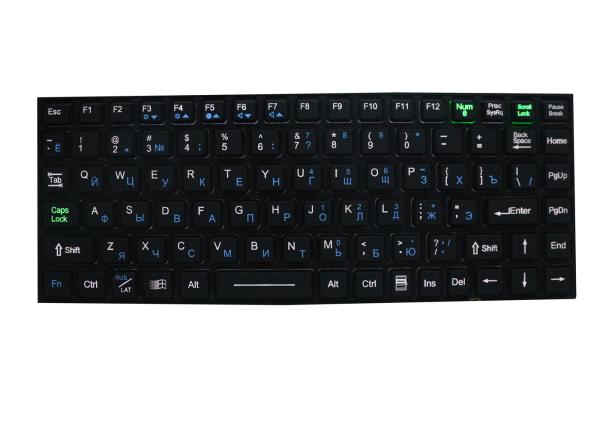

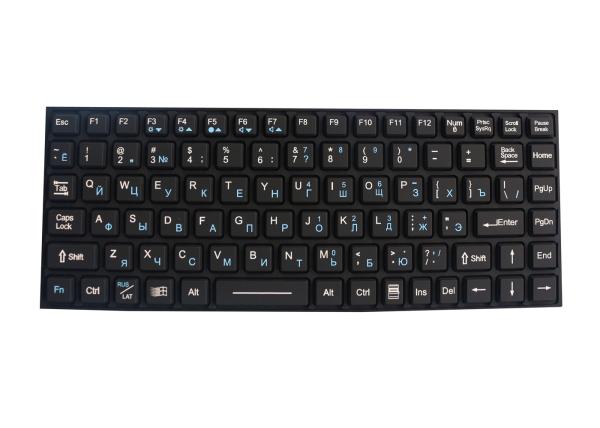

IP67 PS2 Industrial Silicone Rubber Keyboard Dynamic Rugged Panel Mount
IP67 PS2 Industrial Silicone Rubber Keyboard Dynamic Rugged Panel Mount
IP67 PS2 Industrial Silicone Rubber Keyboard Dynamic Rugged Panel Mount
IP67 PS2 Industrial Silicone Rubber Keyboard Dynamic Rugged Panel Mount
IP67 PS2 Industrial Silicone Rubber Keyboard Dynamic Rugged Panel Mount
IP67 PS2 Industrial Silicone Rubber Keyboard Dynamic Rugged Panel Mount
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M284-FN-IL-OEM
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
application :
military/industrial
connection :
USB, PS2
material :
rubber
Key life :
5 million
key :
89 keys
G.W. :
0.50KGs
Dimensions :
284.00mm x 109.00mm x 12.6mm (L x W x H )
Description

Custom Industrial Silicone Rubber Keyboard IP67 dynamic Rugged Panel Mount

MECHANICAL DATA:

Key 89keys

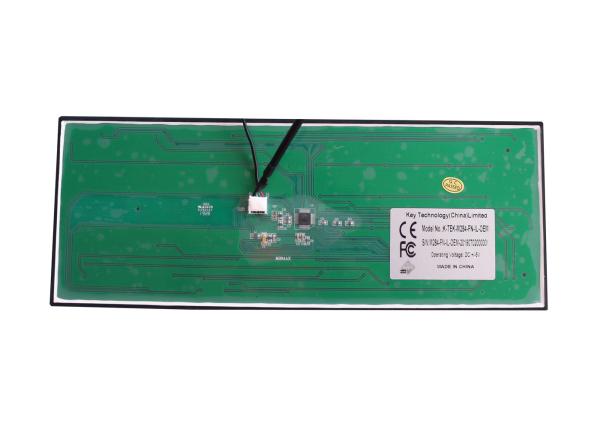

Switch Contact Material Carbon-on-Gold key switch technology with gold PCB.
Current Rating 30mA (non-backlight), 300mA (with backlight on)
Key top style Protuberant rectangular keys with tactile feeling.
EMC Standard EN 55032:2015 EN 55035:2017
MIL-STD-810F (wide temperature, shock, vibration, humidity)
Lifespan 5 years
Cable length: Standard 2.0m, customized length available.
Interface matrix FPC, PS2 & USB optional.
G.W. 0.5KGs
Dimensions: 284.00mm x 109.00mm x 12.6mm (L x W x H )
Key life 5 millions
APPLICATIONS:
This ruggedized and compact design keyboard can be good for working in low-light areas, it is also available with optional LED backlighting.This keyboard is ideal for below wide applications:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses

DESCRIPTION:

*89 keys IP67 dynamic waterproof silicone rubber keyboard
*Carbon-on-gold key switch 12 FN keys (F1, F2...F11, F12) on top line for easy operation
*Industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm)
*With extremely good tactile feeling for fast and accurate data input without any noise
*Durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment
*Top panel mounting, industrial backlight optional.
IP67 PS2 Industrial Silicone Rubber Keyboard Dynamic Rugged Panel Mount
IP67 PS2 Industrial Silicone Rubber Keyboard Dynamic Rugged Panel Mount
IP67 PS2 Industrial Silicone Rubber Keyboard Dynamic Rugged Panel Mount

MAIN FEATURES:
Keyboard provides rugged, compact design, rugged construction for reliable functionality.
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquid,
which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special durable-coating for excellent mechanical and chemical resistance.
With firm tactile key feel, key travel 1.50mm key travel.
Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Low-profile keys for easy cleaning
Key life: 5 millions
RELIABILITY
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
