Compact Format 2.0mm Key Travel Black Metal Keyboard dynamic waterproof
Compact Format 2.0mm Key Travel Black Metal Keyboard dynamic waterproof
Compact Format 2.0mm Key Travel Black Metal Keyboard dynamic waterproof
Compact Format 2.0mm Key Travel Black Metal Keyboard dynamic waterproof
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A340KP-FN-BT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Dimensions: :
340.0mm x 125.0mm (front panel)
G.W. :
1.80KGs
Keys Materials :
stainless steel
Key Travel :
2.0mm
Certifications :
CE, RoHS,FCC,etc
Protection level :
IP67
Description

Industrial Metallic Black Keyboard Waterproof for Navy Marine

DESCRIPTION:

- 102 keys compact format IP67 dynamic waterproof vandal proof stainless steel industrial keyboard
- With fully sealed and ruggedized industrial PCB electronics controller
- With carbon-on-gold key switch technology
- With long -stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise,
- Wth integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation.
- 1.5mm stainless steel back plate with water-tight gasket for easy and tightened sealing with cabinet or panel,
- Rear panel mounting solution.
- High quality durable black titanium electroplated on the top stainless steel plate and keys.
- It is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt,
salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 340.0mm x 125.0mm (front panel)

Compact Format 2.0mm Key Travel Black Metal Keyboard dynamic waterproof

Compact Format 2.0mm Key Travel Black Metal Keyboard dynamic waterproof

Special Features:

1,The keyboard can be dynamic washable with water and other liquids.

2,The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing
to take the keyboard away from PC.
3,Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,
functionality, longevity and high protection level.
4,Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof
especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
5,Waterproof execution according to IP67 protection from top panel, rear stainless steel plate with mounting holes
for easy tightly mounting to enclosure or panel.
6,An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input
without any noise. With firm tactile perception for comfortable operation.
7,Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to
prevent lettering rub-off.
8,Metal keys are protected against twisting and levering which cannot be dislodged from front, or defaced
removing key covers.
9,Ease of customizing with multiple languages, to accommodate foreign or custom variants.
10,Complete electronic modules including controller in close consultation with our customers are available.
11,PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.

Applications:

-Navy/Marine

-Unsupervised or semi supervised varied access applications,

-Internet terminals and information kiosks at universities.

Specification:

MECHANICAL DATA

Key

102 keys, super quality brushed stainless steel with black titanium

Key top style

Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,
14.0mm x 28.0mm for enter key,
14.0mm x 100mm for space bar.

Switch life

more than 5 million of operations

Actuation Force

1.2N +/-0.1N for key 14.0mm x 14.0mm (pressure point)
2.0N +/-0.1N for key 14.0mm x 28.0mm (pressure point)

Front Plate:

1.5mm thickness super quality brushed stainless steel

Back Plate:

 1.5mm thickness super quality brushed stainless steel

G.W.:

1.80KGs

ELECTRICAL DATA

Supply Voltage

+5V DC +/-5%

Current Rating

appr. 30mA

EMC Standard:
EMC Standard: EN 55032:2015, EN 55035:2017

Lifespan

> 5 years

Switch Contact Material:

Carbon-on-Gold key switch technology PCB.

Interface:

PS2, USB available.

OS:
All Windows, Linux, Unix, Mac OSX, Vxworks, Android,(U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min

Actual Pictures:

Front View

Compact Format 2.0mm Key Travel Black Metal Keyboard dynamic waterproof

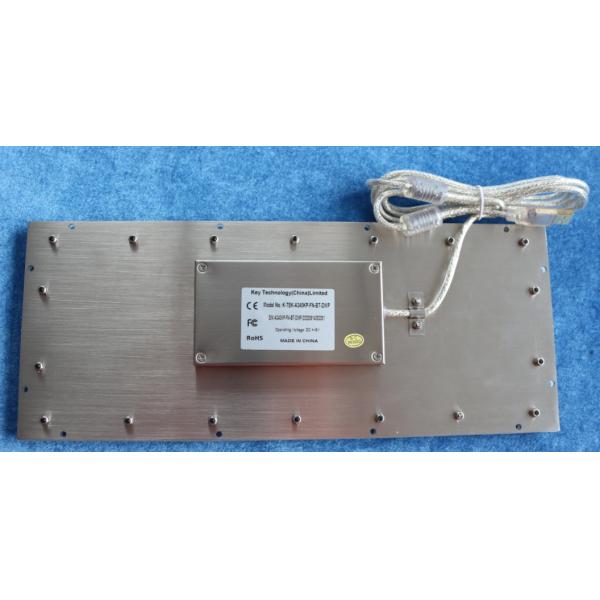

Back View

Compact Format 2.0mm Key Travel Black Metal Keyboard dynamic waterproof

Compact Format 2.0mm Key Travel Black Metal Keyboard dynamic waterproof

FAQ
Key Technology (China) Limited
www.rugged-key.com
www.key-tek.cn

1: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.

2. If I need customized products , what is the delivery date time and price ?

A:The price is according to the way you want customize your keyboard. Delivery time usually is 2-3 weeks.

3. Can you customize the surface and program of your product according to my requirements?

A:Yes. You need to provide the surface draft !

3.Is your keyboard waterproof and vandal proof?

A:We do have waterproof vandal proof metal keyboards. Tell us is for indoor or outdoor, we can recommend you the right product.

4. What's the warranty of your products?
A:One year
