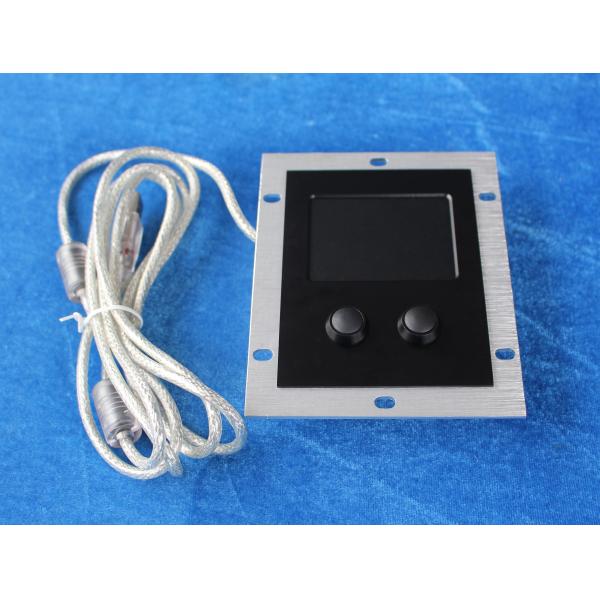

Rear Panel Mounting Industrial Touchpad Pointing Device With Mounting Holes
Rear Panel Mounting Industrial Touchpad Pointing Device With Mounting Holes
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B83TP-BT
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Metal stainless steel
Color :
Black
Application :
Kiosk, medical, railway, navy
Keys :
2 keys
Interface :
USB port, PS2 port
Weight :
0.8 KGs
Mounting :
Rear Panel mounting
Description

Rear Panel Mounting Industrial Touchpad Pointing Device With Mounting Holes

Main Features:

1. Rear panel-mounting


2. Compatible with WINDOWS98/ME/2000/XP


3. 2 buttons over the industrial touchpad


4. Designed to operate in harsh environments, making it ideal for application in public place


5. Dust-proof and liquid-proof, IP65 waterproof


6. PS/2 or USB interface

7. IP65 Sealed and Ruggedized Touchpad with scroll function optional

8. CE, FCC, RoHS, IP65, ESD

Specifications:

ITEM

SPECIFICATION

Mechanical

Front Plate

Quality brushed stainless steel

Touchpad thickness

1.3 mm PCB thickness inclusive of mylar layer

Validated touch width

46.50mm (max)

Validated touch length

62.50mm (max)

Mounting Rack

Aluminum alloy

Back Metal Cover

Rear side integrated electronics protected by a metal cover

Touchpad lifespan

> 10 Mio times

Dimensions

Touchpad: 65.0mm x 49.0mm;

Front Mounting Panel: 83.0mm x 110.0mm (front panel),

Rear Mounting Panel: 107.0mm x 134.0mm

Interface

PS2 and USB both available

Electrical

Power supply

5V DC+ 5%,

Work current

4.0 mA (normal)

X/Y position sensing resolution:

1000 points/inch (40 points/mm)

X/Y position reporting:

Relative

Tracking speed:

Maximum 1,016 m/sec

Protection level:

IP65 (front panel)

Static Release:

15 KV (front panel)

EMC Standard:

EN55022(B)

Environmental

Operating temperature:

-20°C to +60°C

Storage temperature:

- 30°C to + 70°C

Operating RH:

10%-95%

Atmospheric pressure:

60-106Kpa

Reliability

MTBF

>20000h

MTTR

< 30min

Key switch lifespan

>5 million actuations

OS

OS is under All windows, Linux, Unix, Mac OS9 / OSX

Packing Details

Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

Rear Panel Mounting Industrial Touchpad Pointing Device With Mounting Holes

Rear Panel Mounting Industrial Touchpad Pointing Device With Mounting Holes
