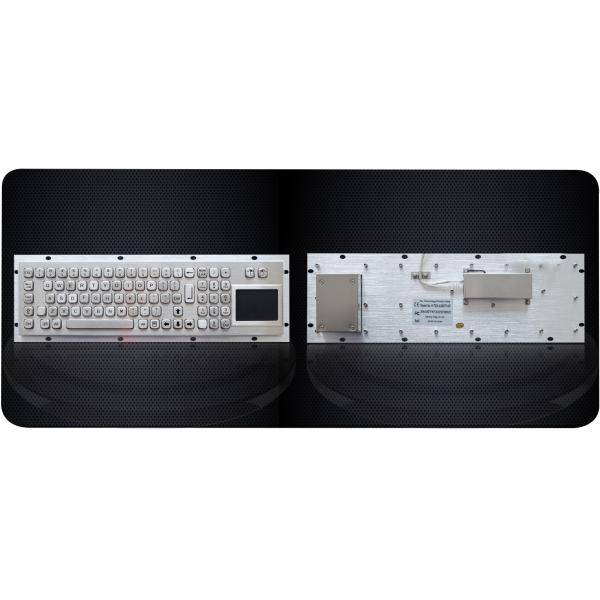

Industrial Metal Keyboard With Touchpad With USB Or PS2 Interface
Industrial Metal Keyboard With Touchpad With USB Or PS2 Interface
Industrial Metal Keyboard With Touchpad With USB Or PS2 Interface
Industrial Metal Keyboard With Touchpad With USB Or PS2 Interface
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A392TP-KP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Keys :
81 keys (including 2 mouse buttons)
Switch life :
more than 5 million of operations
Touchpad cover :
Composite
Interface :
PS2, USB available
Key travel :
1.50±0.10mm
Dimensions :
392.0mm x 110.0mm (top panel)
Name :
Touchpad keyboard
Description

Customized vandal proof industrial metal keyboard with USB or PS2 interface

DESCRIPTION: 81 Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.5mm±0.1mm) with extremely good tactile feeling for fast and accurate data input without any noise, with numeric keypad, rear panel mounting solution.

DIMENSIONS: 392.0mm x 110.0mm (top panel)

Industrial Metal Keyboard With Touchpad With USB Or PS2 Interface

MECHANICAL DATA
Actuator/keys 81 keys (including 2 mouse buttons)
Key top style Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel 1.50±0.10mm
Actuation Force 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
Switch life more than 5 million of operations
Touch pad sealed and ruggedized tough touchpad
Touchpad cover Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Output (self-detectable depending on cable) PS2 or USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5VDC ± 0.25V
Current rating (active mode) < 10 mA
G.W. 1.80KGs
ELECTRICAL DATA
Supply Voltage +5V DC ± 5%
Current Rating 50mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Carbon-on-Gold key switch technology PCB
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 30-90%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP65
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
