Waterproof Kiosk Metal Keyboard Backlight Atm Machine Keyboard
Waterproof Kiosk Metal Keyboard Backlight Atm Machine Keyboard
Waterproof Kiosk Metal Keyboard Backlight Atm Machine Keyboard
Waterproof Kiosk Metal Keyboard Backlight Atm Machine Keyboard
Waterproof Kiosk Metal Keyboard Backlight Atm Machine Keyboard
Waterproof Kiosk Metal Keyboard Backlight Atm Machine Keyboard
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-A308-FN-BL
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Dimensions :
308.0mm x 145.0mm (front panel)
Key Travel :
1.5mm±0.1mm
Supply Voltage :
+5V DC ± 5%
Interface :
PS2, USB available
Backlight :
Blue, Red, White optional
Keys :
87 keys
Switch life :
more than 5 million of operations
Name :
industrial backlight keyboard
Description

Vandal proof and water proof kiosk keyboard

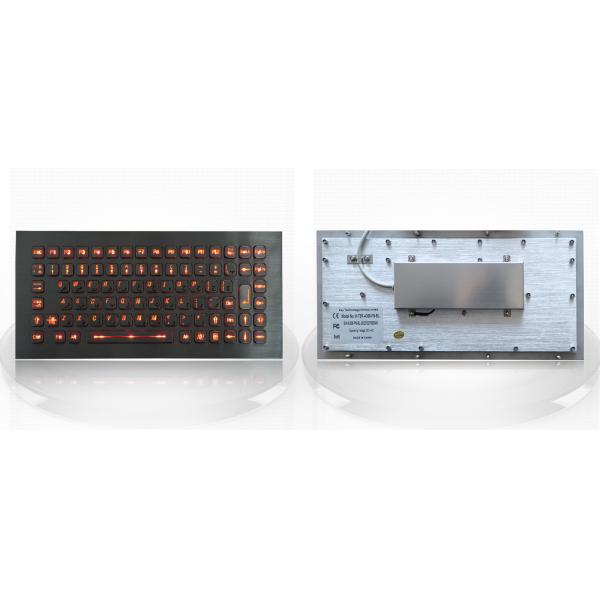

DESCRIPTION: 87 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with function keys on the top line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate input without any noise, top stainless steel plate with threaded bolt for front mounting. Stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial backlight included. (Blue, Red, White colors etc. optional).

DIMENSIONS: 308.0mm x 145.0mm (front panel)

Waterproof Kiosk Metal Keyboard Backlight Atm Machine Keyboard

MECHANICAL DATA
Actuator/keys 87 keys
Key top style Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
Key travel 1.50±0.10mm
Actuation Force 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
Switch life more than 5 million of operations
G.W. 1.50KGs
ELECTRICAL DATA
Supply Voltage +5V DC ± 5%
Current Rating 30mA when backlight is off, 300mA with backlight on
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Carbon-on-Gold key switch technology PCB
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 30-90%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP65
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

KEY TACHNOLOGY CHINA LIMITED

Waterproof Kiosk Metal Keyboard Backlight Atm Machine Keyboard
