Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B343TP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Keys :
69 keys
Switch life :
more than 10 million of operations
Touchpad cover :
Composite
Interface :
PS2, USB available
Key travel :
0.45mm
Dimensions :
343.0mm x 105.0mm (front panel)
Description

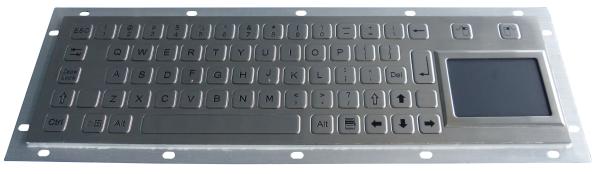

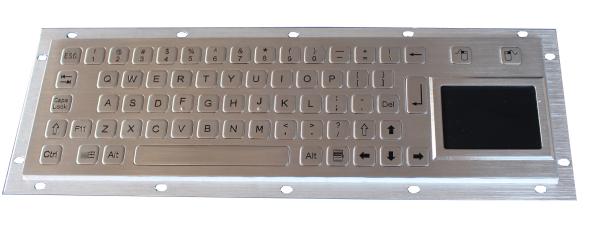

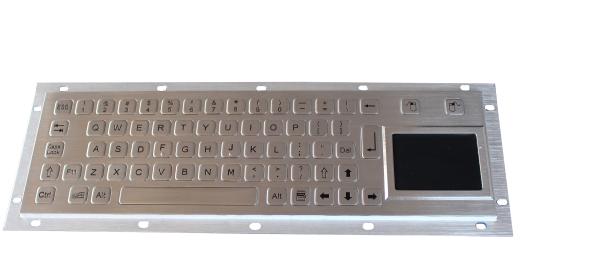

Brushed IP65 Kiosk Metal Industrial Keyboard With Touchpad with rear panel mount

Descriptions:


1. 68 keys compact format IP65 dynamic vandal proof stainless steel keyboard
2. with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional)
3. industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for
stable and accurate data input

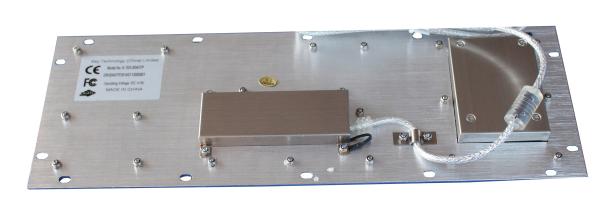

4. rear panel mounting


Special Features:


1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,functionality, longevity and high protection level.


2. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.


3. Waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel.


4. An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation


5.Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.


6. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.


7. Ease of customizing with multiple languages, to accommodate foreign or custom variants.


8. Complete electronic modules including controller in close consultation with our customers are available.


9. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate.

MECHANICAL DATA

Key

68 keys, super quality brushed stainless steel

Key top style

Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,
14.0mm x 28.0mm for enter key,
14.0mm x 100mm for space bar.

Key travel

0.45mm

Switch life

more than 5 million of operations

Actuation Force

2.0N+/-0.1N for Normal key 14.0mm x 14.0mm (pressure point)
4.0N+/-0.1N for Enter key 14.0mm x 28.0mm (pressure point)

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

3.0mm thickness brushed & oxidized aluminium

G.W.

1.80KGs

Dimensions

343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel)


Brushed IP65 Kiosk Metal Industrial Keyboard With Touchpad  , rear panel mount


Brushed IP65 Kiosk Metal Industrial Keyboard With Touchpad  , rear panel mount
