Specifications
Brand Name :
ZL
Model Number :
ZL-3066
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
ISO 7886 Professional Colour Touch Screen Medical Syringe Slide Performance Tester is packaged within wooden case.
Name :
ISO 7886 Professional Colour Touch Screen Medical Syringe Slide Performance Tester
Force Range :
0N~100N
Accuracy :
Error ±1% of full scale value
Test Speed :
5~1000mm/min
Capacity :
0.1mL~100mL any choice
Test Time :
30±1s
Dimensions :
400mm(L)×290mm(W)×275mm(H)
NW :
15KG
Description

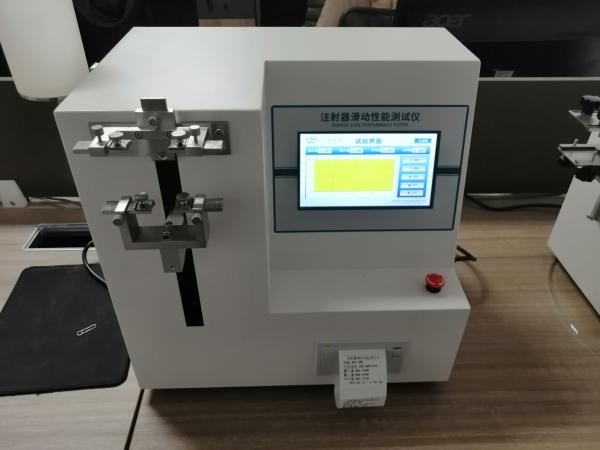

ISO 7886 Professional Colour Touch Screen Medical Syringe Slide Performance Tester
This professional medical syringe slide performance tester features a 7" colour touch screen and intelligent control system for accurate testing of syringe sliding properties according to international standards.
Key Features
  • 7" professional colour touch screen interface
  • English menu display with real-time force monitoring
  • Displays start force, average force, push back maximum and minimum forces
  • Records graph of mandrel movement and force
  • Intelligent controller with automatic syringe capacity selection
  • Automatic test result judgment with micro-printer output
Testing Principle
The syringe body is fixed while applying force to one end of the mandrel. The system tests the pull and thrust forces of the mandrel against the syringe body at controlled speeds.
Testing Standards Compliance
Conforms to GB 15810-2019, ISO 7886-1, ISO 8537-2016, YY 0497-2018, YB 00112004, and other relevant standards.
Application
Suitable for determining the sliding properties of various medical syringes.
Technical Parameters
Force Range 0N ~ 100N
Accuracy Error ±1% of full scale value
Test Speed 5 ~ 1000 mm/min
Capacity 0.1mL ~ 100mL (any choice)
Test Time 30±1s (waiting time from pull test end to thrust test start)
Dimensions 400mm(L) * 290mm(W) * 275mm(H)
Net Weight 15kg
