Specifications
Brand Name :
ZL
Model Number :
ZL-2823D
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
30 work days
Packaging Details :
ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine is packaged within wooden case.
Product name :
ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine
Working Platforms :
350×350 mm
Max. load :
30KG
Maximum impact height range :
1200mm
Peak acceleration :
20-1500g
Pulse duration :
0.5—30ms
Voltage :
AC220V 50Hz
Power :
1.5kw
Description

ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine

Description:

Mainly suitable for impact testing of electronic products, aerospace, ships, military, automotive components, transportation and other fields. It can be used with waveform generator for half-sine wave impact test.

Meet standards:

GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E and other test standards.

ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine

Technical Parameter:

Working Platforms 350×350 mm
Worktop material High strength, high quality aluminium alloy
Max. load 30kg
Maximum impact height range 1200mm
Peak acceleration 20—1500 g
Pulse duration 0.5—30ms
Machine size 1100 × 800 × 2450mm
N.W. About 1350 kg
Voltage AC220V 50Hz
Power 1.5KW
Measurement systems
Input channels 2
Sampling frequency 192KHz
Input form Voltage, charge
Voltage range -10V--+10V
Coupling method AC,DC,ICP
Shock waveform Half Sine
Communication interface USB 2.0
Standard support National Standard, National Military Standard, US Military Standard, User Defined Standard
Operating systems Microsoft Windows7/10
System accelerometers
Output method Electric charge type
Sensitivity 3.93pC/g
Frequency range 0.5—12KHz
Acceleration range ±2500g
Operating environment -40~+160℃
Other
Power supply Single phase,220V±10％
Compressed air 0.5—0.8Mpa
Temperature RT～40℃
Humidity 25℃＜85RH％

ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine

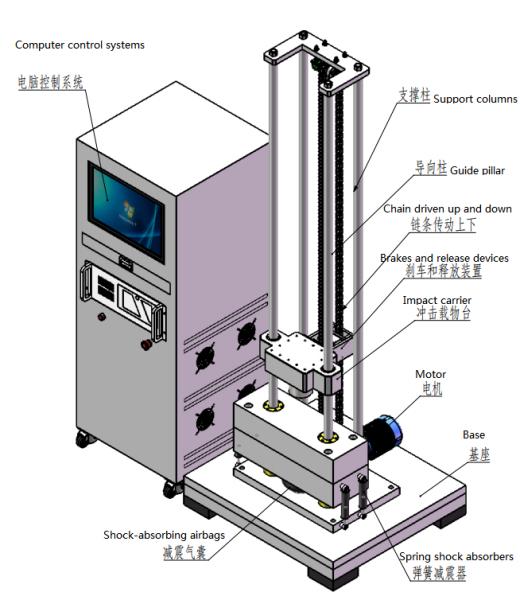

Equipment performance:

The main introduction of the impact machine

1. Working platform: High strength imported aluminium alloy working platform.

2. Lifting mechanism: motor driven ball screw lifts the working platform.

3. Lifting height control: The lifting height is measured by the photoelectric encoder assembly installed on the base, the photoelectric encoder measurement has high precision, strong anti-interference ability and high reliability, which ensures the repeatability of the impact.

4. Braking system: using pneumatic brake and strong friction brake to prevent secondary impact braking function, preventing secondary rebound

5.Buffer system: effectively reduce the impact of the impact test on the ground, the design of the self-buffer system, consisting of base, damper, air bag.
