Specifications
Brand Name :
ZL
Model Number :
ZL-2823B
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
ISO 15989 ASTM D5946 Contact Angle Goniometer for Plastics Film and Sheeting Corona Treated Polymer Film is packaged within wooden case.
Product name :
ISO 15989 ASTM D5946 Contact Angle Goniometer for Plastics Film and Sheeting Corona Treated Polymer Film
Type :
Scientific research type
Size (L*W*H) :
760*200*640mm
Experiment Platform :
160*200mm
Platform Movement range :
60*35*80mm
Lens Front And Rear Adjustment :
30mm
Lens tilt Adjustment :
±10°
Zoom :
±3mm
Description

ISO 15989 ASTM D5946 Contact Angle Goniometer for Plastics Film and Sheeting Corona Treated Polymer Film

Principle:

ISO 15989 ASTM D5946 Contact Angle Goniometer for Plastics Film and Sheeting Corona Treated Polymer Film

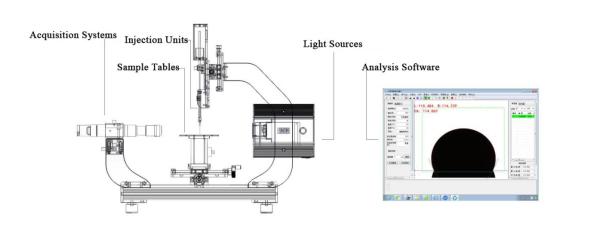

As shown above, the contact angle measuring instrument is mainly composed of five major parts: light source, injection unit, sample tables, acquisition system and analysis software, and the equipment adopts the principle of optical imaging.

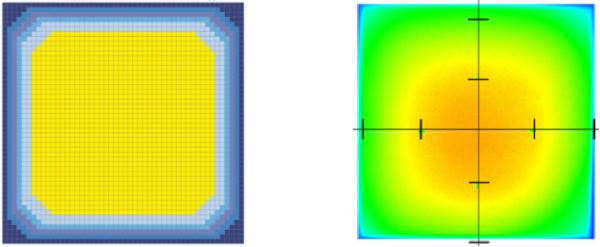

Light source adopts intensive LED cold light design, uniform luminescence, image cleaning and long life;

Injection unit adopts high-precision syringe pump for liquid feeding, controlled by software with quantitative and fixed speed, stable drops and accuracy up to 0.01 µl;

Sample tables adopts three-dimensional manual fine adjustment platform, flexible operation, accurate positioning, sample stage can be customized according to the actual sample size

The acquisition system adopts black and white imported CCD camera, with stable shooting, clear and reliable images, the lens adopts German industrial grade imported configuration, adjustable 0.7-4.5 times magnification, imaging without distortion and distortion;

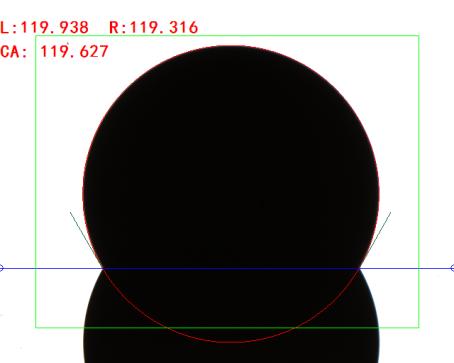

The analysis software is powerful and has the ability of one-key automatic fitting, with the most leading international fitting method, to meet the accurate fitting of various droplet forms.

Specifications:

Equipment Specifications
Equipment Mainframe
Dimension800mm(L)×190mm(W)×640mm(H)
Weight16KG
Adjustment of The Whole machineWhole machine level test/adjustment
Power Supply
Voltage100～240VAC
Power50W
Frequency50/60HZ
Space
Platform Size160mm×200mm
Maximum Specimen280×∞×60mm
Sample Table AdjustmentThree-dimensional manual adjustment (upgradeable to automatic)

Front and rear adjustment Manual, 60mm travel, 0.1mm accuracy

Left/right adjustment manual, 35mm travel, 0.1mm accuracy

Up and down adjustment manual, 80mm travel, 0.1mm accuracy

Camera Systems
Maximum Image5000(H) x 4000(V)
Maximum Frame rate200fps (upgradable to higher frame rates)
SensorSONY 1/1.8"
SpectrumB&W/color
ROICustom
Display Line WidthCustom
Exposure TimeCustom
Power Supply5 VDC USB Interface
TransmissionUSB3 Vision
Microscope Head
Focal Length130mm±5mm (zoom adjustment)
Magnification10x
Angle Of Vie Adjustment±10°
Resolution Scale4～14um
Acquisition System AdjustmentDownward/upward/level view
Light Source
TypeSingle wavelength industrial LED (cold light)
Wavelength470nm
Light Fieldφ50mm
Light Point96 grains intensive type
Lifetime50000Hour
Injection System
Drip MethodPrecision micro syringe pumps
Control MethodSoftware digital control
Drip Accuracy0.01μl
SyringeHigh-precision gas-tight syringe
Volume100μl/500μl/1000μl (500μl standard)
Needle0.51mm all stainless steel superhydrophobic needle (standard)
Speed1μL/min ～2000μL/min
Software
Contact Angle Range0～180°
Resolution0.01°
Contact Angle measurement methodFully automatic, semi-automatic, manual
Analysis Method

Hanging drop method, stop-drop method (2/3 state), bubble capture method,

seat-drop method, seat-needle method, insert plate method

Analysis MethodStatic analysis, automatic liquid increase and reduction dynamic analysis, wetting dynamic analysis, real-time analysis, bilateral analysis, forward and backward angle analysis
Test MethodCircle method, ellipse/slanting ellipse method, differential circle/differential ellipse method, Young-lapalace, wide-height method, tangent method, interval method
