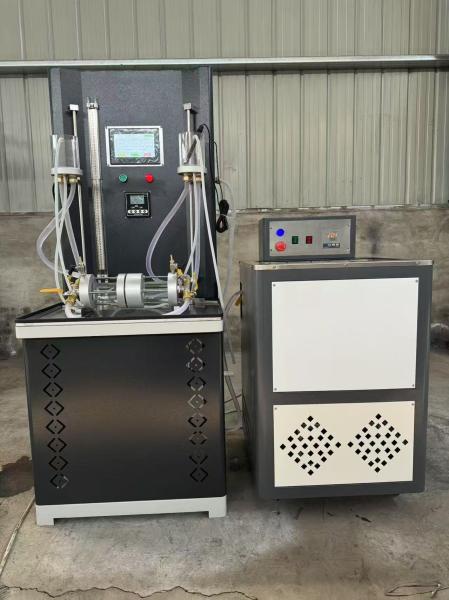

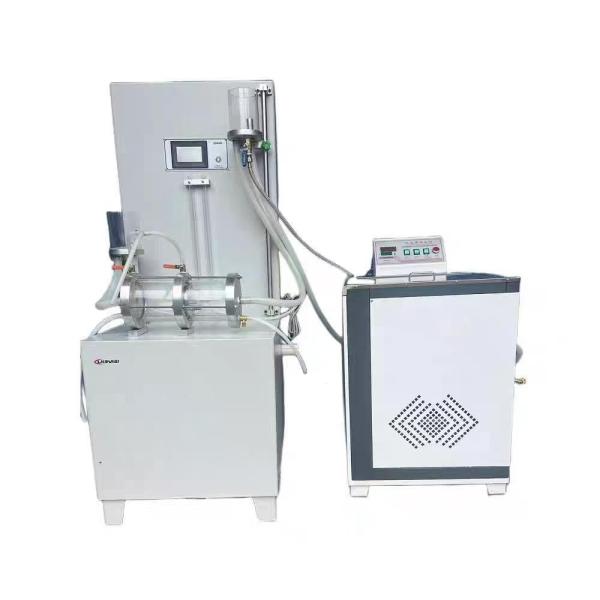

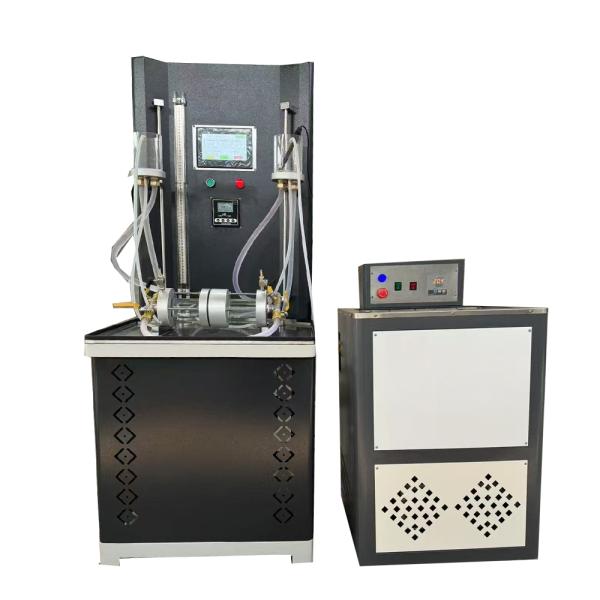

Geosynthetic Vertical Permeameter with Standar ISO 11058 ASTM D4491 EN ISO 10776 ASTM D4716

The geotextile vertical permeability testing instrument is a horizontal constant-head testing instrument designed and manufactured in accordance with the latest national standard GB/T15789-2005 and the newly released "Highway Engineering Geotextile Test Procedures" by the Ministry of Transport (JTG E50-2006). It is suitable for conducting vertical permeability tests on various geotextiles and composite woven fabrics with permeability properties under a constant water head. The national computer software copyright certificate number for the geotextile vertical permeability tester: Soft Copyright Registration No. 2452896.

Related Standards: GB/T15789-2005 Method A JTG E50-2006 T114-2006 Vertical Performance Test (Constant Water Head Method)

Principle Overview: The flow velocity (in mm/s) of water flowing perpendicularly to the surface of the geotextile under a unit hydraulic gradient.

Instrument feature:
1. This machine is equipped with a 7.8-inch high-definition touch color screen system and a Chinese menu operation interface.

2. The test fixture is made of high-quality aluminum alloy, which is corrosion-resistant, easy to clean, and elegant.

3. A transparent organic glass test chamber is used to prevent water splashes and dust from entering.

4. The American DuPont powder and electrostatic painting process is adopted, which is cured at a high temperature of 200°C and does not fade.

5. Sample clamping method: horizontal flow, sample placed in water, and sample is held by a force rod.

6. The amount of water permeability and collection volume is measured using a graduated cylinder and displayed with high-definition scales.

7. The entire machine has no exposed plastic hoses. A zero-pipe experimental chamber is used to effectively prevent bubble formation and ensure accurate data.

8. The digital setting of water head difference, automatic positioning, and high precision.

Technical parameter:

1. Display: 7.8-inch true-color touch display, with Chinese menu operation

2. Digital water level measurement sensor range: 0 - 500mm

3. Sensor resolution: 0.01mm

4. Water head adjustment range: 0 - 250mm

5. Clamping cylinder inner diameter: Φ50 ± 0.1mm

6. Sample holding method: Horizontal flow, sample in water, force rod clamping for sample

7. Experimental chamber: Fully transparent organic glass test chamber, zero pipeline connection, effectively preventing bubble formation

8. Water head adjustment: Digital setting of water head difference, automatic positioning, with an accuracy of up to 0.02mm

9. Time counter: 0 - 999s (accuracy 0.1s)

10. Thermometer range: 0 - 99℃ (accuracy 0.1℃)

11. Measuring cylinder: 1000mL (accuracy 10mL)

12. Power supply: AC 220V ± 10% 50Hz

13. Overall appearance of the instrument: 800 × 650 × 1900 (mm)

14. Weight: 150Kg
