Specifications
Brand Name :
ZL
Model Number :
ZL-7057B
Certification :
CE,ISO
Place of Origin :
Guangdong,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 Sets
Delivery Time :
7-10 days
Packaging Details :
Shoelace Abrasion Tester with ISO 22774 ASTM D6770 SATRA TM174 Standard will be Packaged in wooden case （fumigation free）
Name :
Shoelace Abrasion Tester with DIN 4843 SATRA TM 154 Standard
Fixtures :
4
Counter :
0-999,999 cycles
Speed :
60±6 cycles per minute (cpm)
Applied Load :
250±3 grams
Compliance Standards :
DIN 4843, QB/T 2226, SATRA TM 154
Description

Shoelace Abrasion Tester with DIN 4843 SATRA TM 154 Standard

Scope of Application:

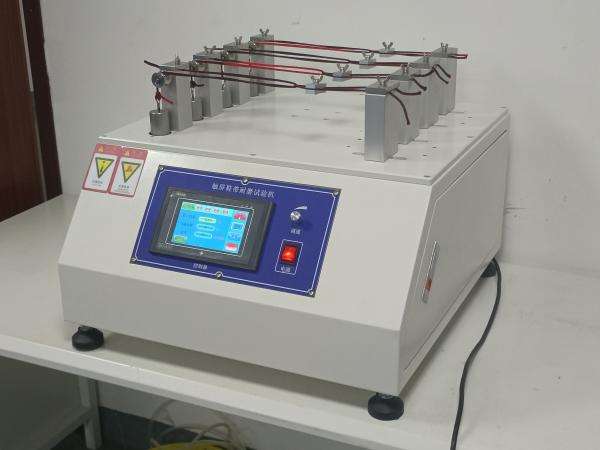

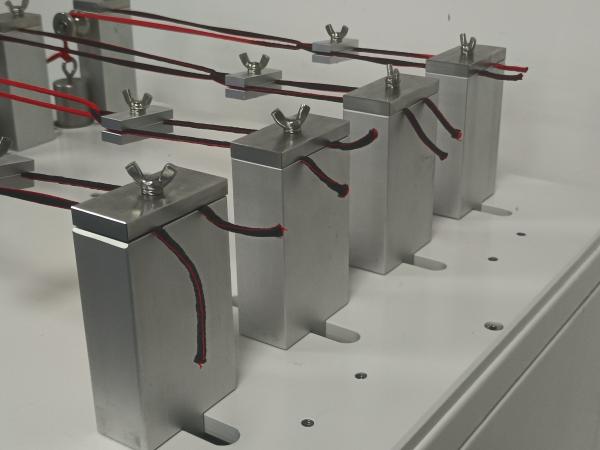

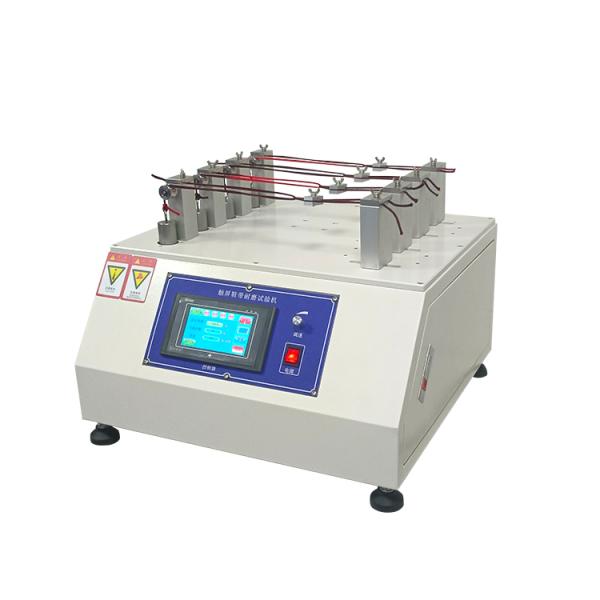

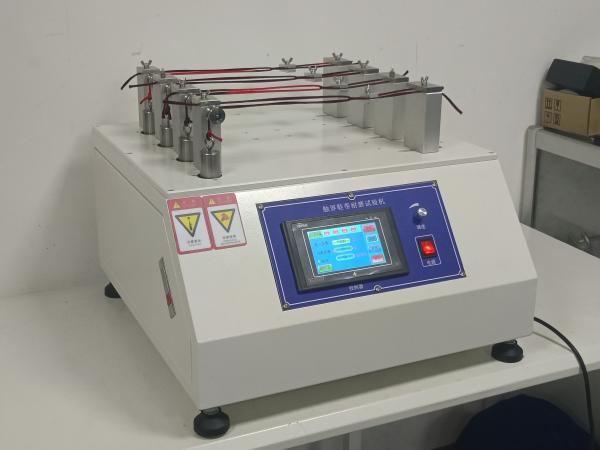

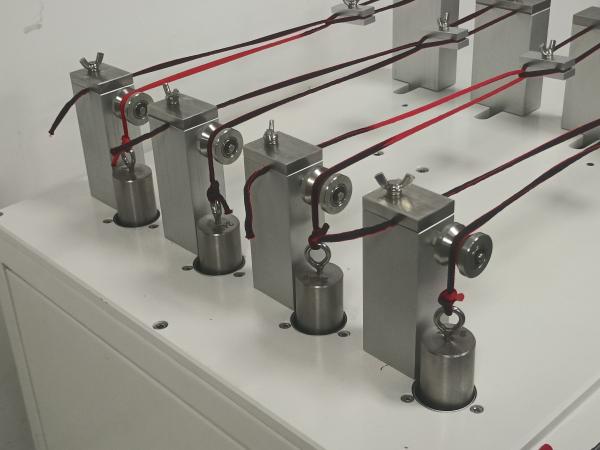

The shoelace wear tester is used to test the wear resistance of shoelaces. The shoelace installation method is: take two shoelaces, hook the middle sections together to form one right and one left, and clamp the two ends of the right lace with the right clamp (moving clamp) of the shoelace wear tester. After clamping, the two ends are naturally 25mm apart. Then clamp one end of the left lace with the left clamp (fixed clamp), and put the other end in the pulley groove, and hang a weight below. The clamping point is naturally 35+5mm away from the wheel groove. During the test, the moving clamp moves back and forth in a straight line at a constant speed to make the middle sections of the two shoelaces rub against each other. The number of frictions is recorded when the test reaches the specified number of frictions or the shoelaces break.

Product Specifications:

Controller Touch screen control
Fixtures 4 sets
Counter 0-999,999 cycles
Speed 60±6 cycles per minute (cpm)
Applied Load 250±3 grams
Motor AC variable-speed motor
Dimensions Approx. 66×58×42 cm
Power Supply AC 220V
Compliance Standards DIN 4843, QB/T 2226, SATRA TM 154
