Horizontal Torsion Spring Tester 5000 mN·m Max Torque ±1% Accuracy
Horizontal Torsion Spring Tester 5000 mN·m Max Torque ±1% Accuracy
Specifications
Brand Name :
ZL
Model Number :
ZL-2121
Certification :
CE,ISO
Place of Origin :
Guangdong,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
40 sets / month
Delivery Time :
15-20 work days
Packaging Details :
Horizontal Torsion Spring Testing Machine will be Packaged in wooden case
Name :
Horizontal Torsion Spring Testing Machine
Maximum Test Torque :
1-5000 mN﹒m
Measurement Range :
5～500 （mN﹒m）, 0.01～1 （N﹒m，Can be customized
Angle resolution :
0.1°
Measuring angle range :
0~ ±9999.9°
Specimen rotation diameter :
φ100mm
Specimen length :
150mm
Loading method :
manual
Accuracy :
±1%
Description

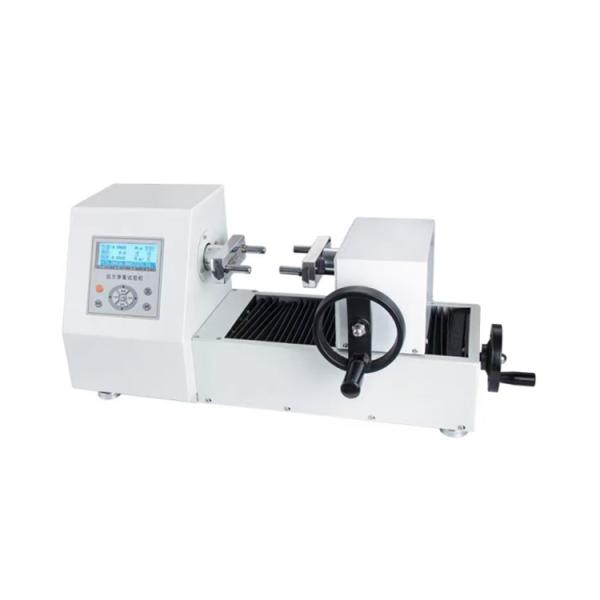

Horizontal Torsion Spring Testing Machine

Product Overview:

The Horizontal Torsion Spring Testing Machine is an intelligent multi-functional instrument designed for testing various torsion springs, including spiral springs and elastic torque components. It features high precision, user-friendly operation, and portability, making it ideal for electrical, light industrial, mechanical manufacturing, and research applications.

Product Features:

1. High precision, high resolution, fast sampling speed, large screen display.

2. Upper and lower limits can be set, with sound and light alarm function

3. Three parameter display (torque value, rotation angle, spring stiffness).

4. Three units N·m, kgf·cm, Ibf·in can be converted to each other.

5. Real-time, peak, automatic peak three modes can be switched at will.

6. Peak hold, automatic release function, release time can be set freely.

7. Automatic shutdown function without operation, time can be set freely.

8. Large storage capacity, can save 99 sets of test data.

9. Automatic shutdown function without operation, time can be set freely.

10. Built-in micro printer (optional).

11. USB interface communicates with PC, can be connected to computer for synchronous testing.

Technical Specifications:

1.Measurement parameters:

Model Maximum Test Torque Measurement Range

Minimum Reading Value

(N﹒mm)
ZL-500A 500 mN﹒m 5～500 (mN﹒m) 0.01 mN﹒m
ZL-1000A 1000 mN﹒m 10～1000(mN﹒m) 0.1 mN﹒m
ZL-2000A 2000 mN﹒m 20～2000(mN﹒m) 0.1 mN﹒m
ZL-5000A 5000 mN﹒m 50～5000(mN﹒m) 0.1 mN﹒m
ZL-1 1 N﹒m 0.01～1 (N﹒m) 0.0001 N﹒m
ZL-2 2 N﹒m 0.02～2 (N﹒m) 0.0001 N﹒m
ZL-5 5 N﹒m 0.05～5 (N﹒m) 0.0001 N﹒m
ZL-10 10 N﹒m 0.1～10 (N﹒m) 0.001 N﹒m
ZL-20 20 N﹒m 0.2～20 (N﹒m) 0.001 N﹒m
ZL-30 30 N﹒m 0.3～30 (N﹒m) 0.001 N﹒m
ZL-50 50 N﹒m 0.5～50 (N﹒m) 0.001 N﹒m

2. Angle resolution: 0.1°

3. Measuring angle range: 0~ ±9999.9°

4. Specimen rotation diameter: φ100mm

5. Specimen length: 150mm

6. Loading method: manual

7. Accuracy: ±1%

8. Power supply: AC220V 50Hz

9. Dimensions: 710×320×290 (mm)

10. Weight: about 37.5Kg
