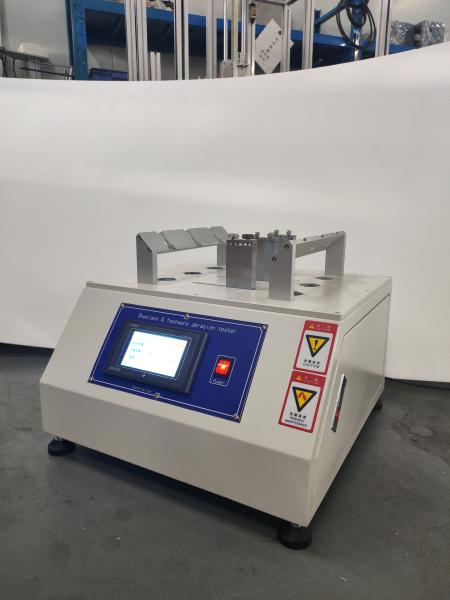

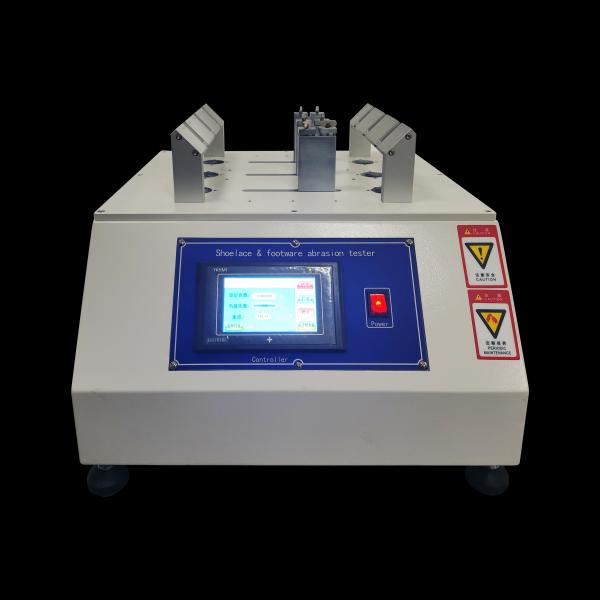

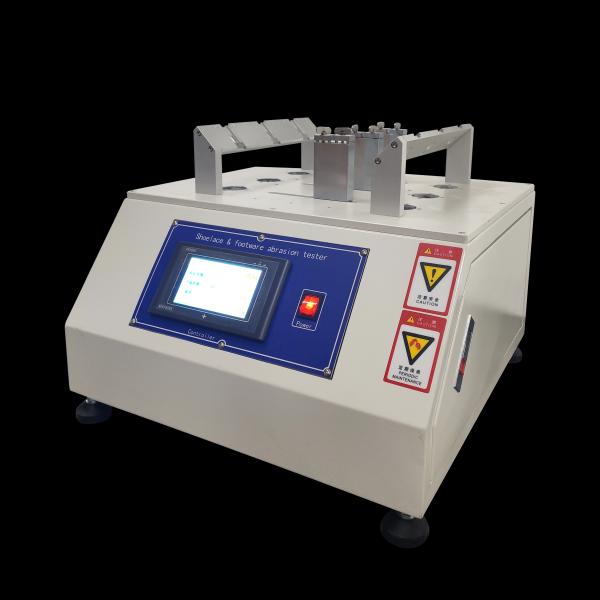

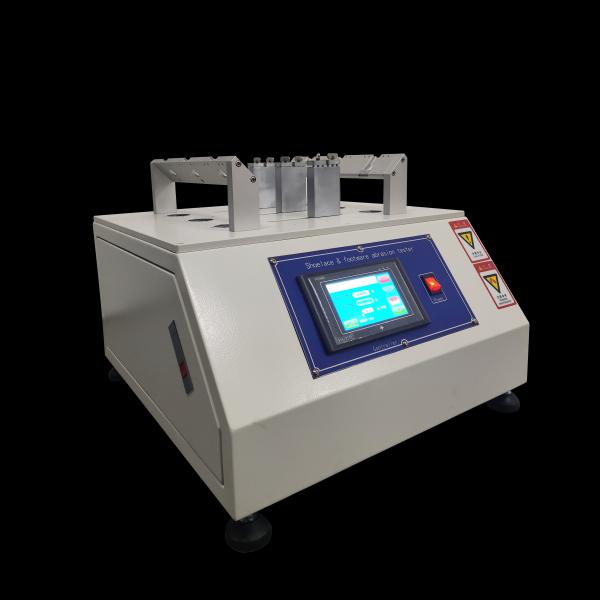

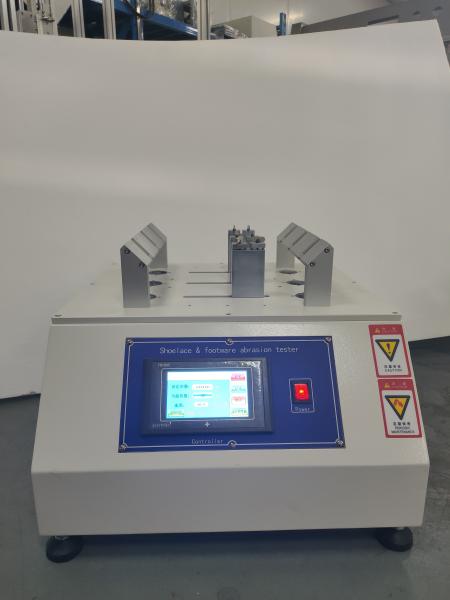

SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station
Specifications
Brand Name :
ZL
Model Number :
ZL-7057A
Certification :
CE,ISO
Place of Origin :
Guangdong,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
40 sets / month
Delivery Time :
7-10 days
Packaging Details :
SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine will be Packaged in wooden case
Name :
SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine
Stations :
6
Weight :
(450 ± 5) g
Stroke :
(76 ± 2) mm
Fiberboard :
(25 × 25 × 3) mm
Eyelet Hole Diameter :
Ø4.5 mm
Dimensions :
(55 × 56 × 40) cm
Description

SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine

Scope of Application:

This machine is suitable for testing all types of shoelaces and eyelets. One end of the shoelace is passed through an eyelet clamped by a fiberboard, with the shoelace and eyelet positioned at a 90° angle and the fiberboard and shoelace at a 45° angle. The shoelace is then tightened under standard tension and repeatedly pulled back and forth through the eyelet. The test stops when the shoelace is damaged. The test complies with the SATRA TM93 technical standard.

Product Specifications:

Stations 6 groups
Weight (450 ± 5) g
Stroke (76 ± 2) mm
Fiberboard (25 × 25 × 3) mm
Eyelet Hole Diameter Ø4.5 mm
Dimensions (55 × 56 × 40) cm
Power Supply 1-phase, AC 220V, 3A
