ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
Specifications
Brand Name :
ZL
Model Number :
ZL-9051B
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer is packaged within wooden case.
Product name :
ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
Model :
ZL-9051B
Printing Rubber Roller Specifications/Hardness :
φ76*130(mm)/ShoreA55
Proofing Speed :
four gears (20/30/40/45 (m/min)
Proofing Length :
150mm
Power Supply :
220V50HZ
Overall Dimensions :
500*425*350(mm)
Weight :
27kg
Description

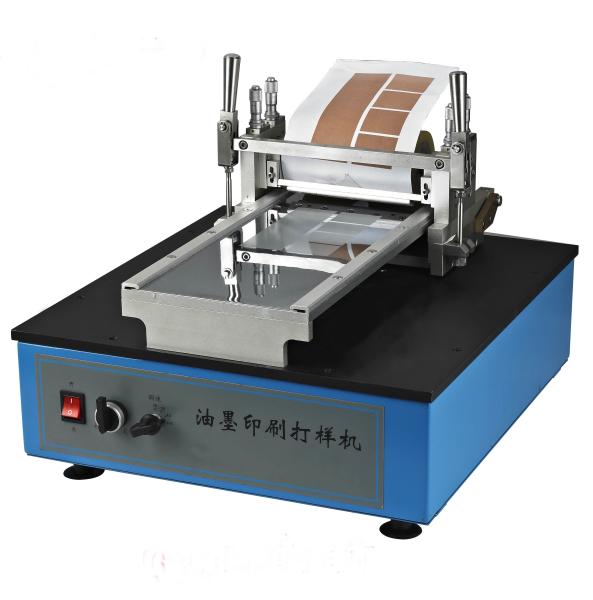

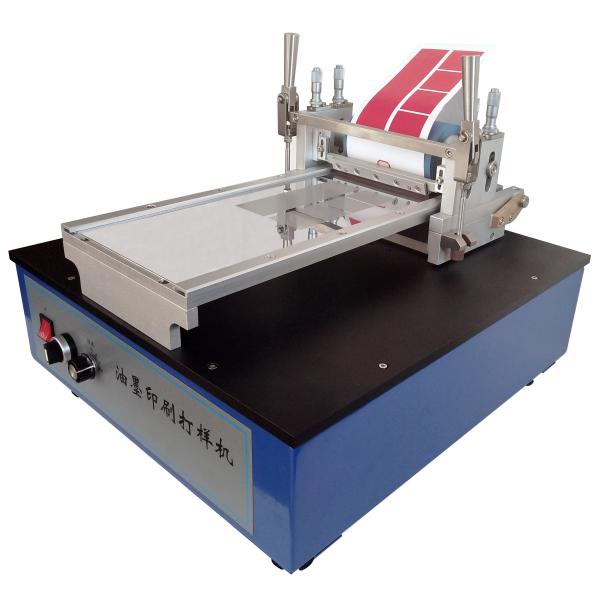

ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer

Overview:

Gravure ink proofer can print gravure inks quickly under the experiment condition,and the method is closed to the actual printing. The gravure ink proofer is used to laboratory production,ink printability test and ink product research.It adopts flat intaglio printing work directly for quick proofing in a varity of flexible substrates(such as plastic film,paper,etc.).It is so easy to operate.The machine is supplied with a special version of the gravure proofing.

Purpose:

(1) It is suitable for the production of printed samples and computer color matching samples that require good reproducibility.

(2) Make the company's own product color chart.

(3) Research and development of ink products.

(4) Inspection of incoming ink

Scope of Application:

1. The laboratory quickly prepares the gravure ink coating sample

2. Simulate the actual printing method

3. With engraving intaglio, a variety of optional styles are available

4. Suitable for all kinds of flexible proofs (film, paper, etc.)

The Main Technical Parameters:

Printing Rubber Roller Specifications/Hardness φ76*130(mm)/ShoreA55
Proofing Speed four gears (20/30/40/45 (m/min)
Proofing Length 150mm
Power Supply 220V50HZ
Overall Dimensions 500*425*350(mm)
Weight 27KG
Motor power 120W

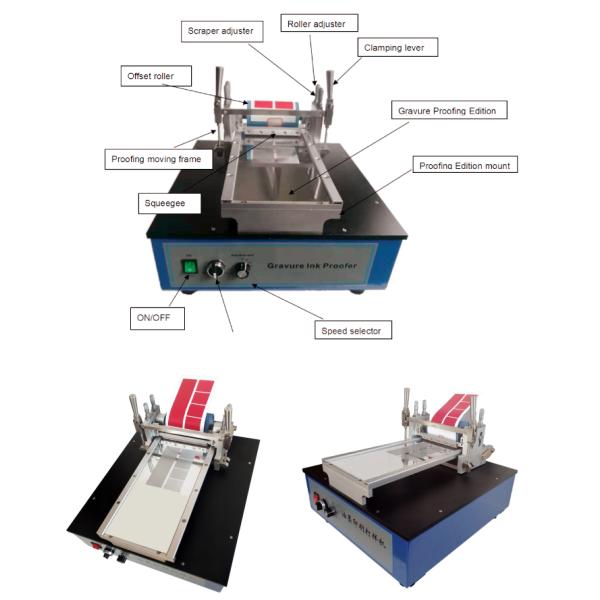

ISO 8791 Color Mixing Offset Printing Proofer Automatic Gravure Ink Proofer
