0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine For Customizable Printing Maximum Printing Width 110mm *365mm
Specifications
Brand Name :
ZL
Model Number :
ZL-9051A
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
ISO 8791 Offset Ink Gravure Printing Proofing Machine is packaged within wooden case.
Product name :
ISO 8791 Offset Ink Gravure Printing Proofing Machine
Model :
ZL-9051A
Control Voltage :
24VDC
Power :
0.5KW
Maximum Printing Width :
110mm (customizable) *365mm
Printing Speed :
0---260 m/min
Machine Size :
630mm*550mm*550mm
Accuracy :
value is less than 0.5
Weight :
105kg
Description

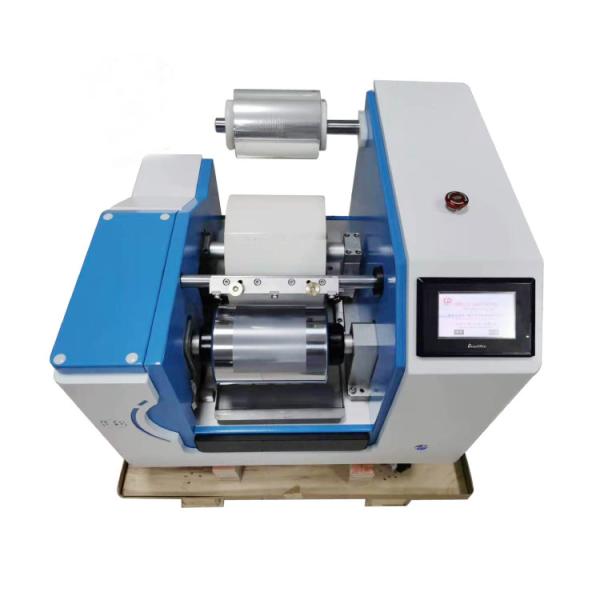

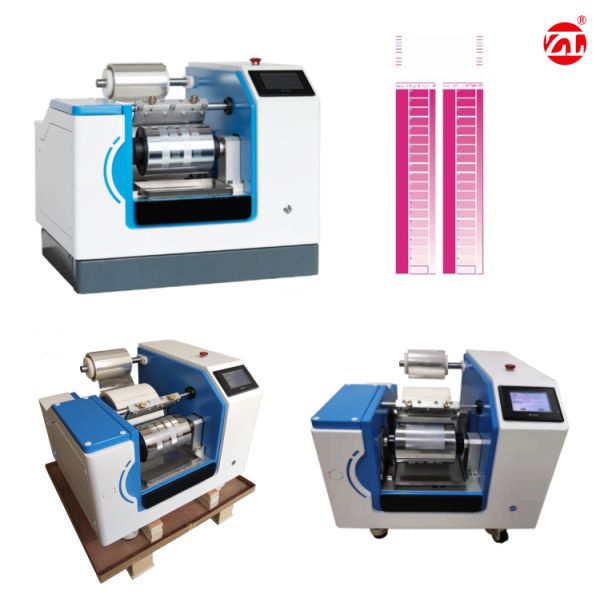

0.5KW ISO 8791 Offset Ink Gravure Printing Proofing Machine
This professional gravure printing proofing machine features a maximum printing width of 110mm * 365mm and offers customizable printing capabilities for precise color matching and testing.
Key Advantages
  • Utilizes gravure anilox stick and scraper for precise ink supply
  • Round pressed round structure closely mimics gravure proofing machine design
  • Proofing speed comparable to actual gravure printing machines
  • Superior coating and proofing repeatability compared to wire rods
  • Printing quality matches gravure printing machine standards
  • Easy operation with automatic positioning and electric closing
  • Simple cleaning process for gravure water-based inks
  • Customizable reticulated sticks with easy replacement
  • Flexible printing plate design for pattern and white ink proofing
Application Scope
Plate Making Companies:
  • Replaces manual ink scraping for rapid, accurate spot color debugging
  • Reduces proofing iterations and time on concave proof machines
  • Simplifies process curve production and color development
  • Enables quick customer color presentations during design phase
Printing Companies:
  • Minimizes ink waste during high-speed printing machine setup
  • Integrates with colorimeters and software to reduce residual ink inventory
Ink Manufacturing Companies:
  • Enables data management and color detection with spectrometers
  • Facilitates comprehensive ink testing for abrasion, fading, transfer, light, and heat resistance
Technical Specifications
Control Voltage 24VDC
Power 0.5KW
Maximum Printing Width 110mm (customizable) * 365mm
Printing Speed 0-260 m/min
Machine Size 630mm * 550mm * 550mm
Whole Machine Weight 105KG
Accuracy Δ value less than 0.5
