ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
Specifications
Brand Name :
ZL
Model Number :
ZL-9053
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester is packaged within wooden case.
Product name :
ISO 13468 ASTM D1003 Haze Meter Full Light Transmittance Plastic Film Haze Tester
Model :
ZL-9053
Standard :
ASTM D1003/D1044 and ISO13468/ISO14782
Illuminants :
D65,A,C
Test Apertures :
21mm and 7mm
Haze Repeatability :
Haze Repeatability Φ21mm aperture，Standard Deviation: within 0.05(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration)
Transmittance Repeatability :
≤0.1 unit
Integrating Sphere Size :
Φ154mm
Test Range :
0-100%
Haze Resolution :
0.01 unit
Description

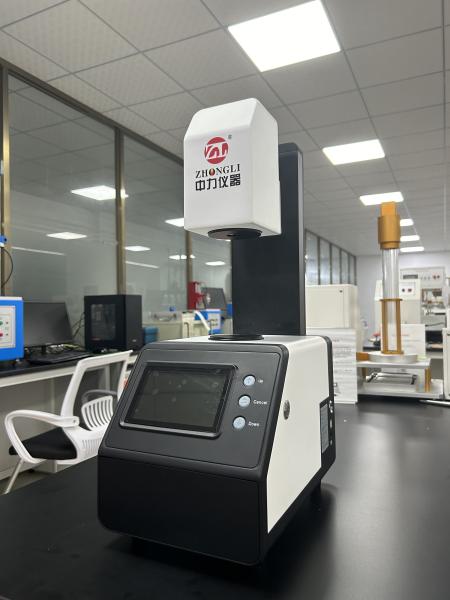

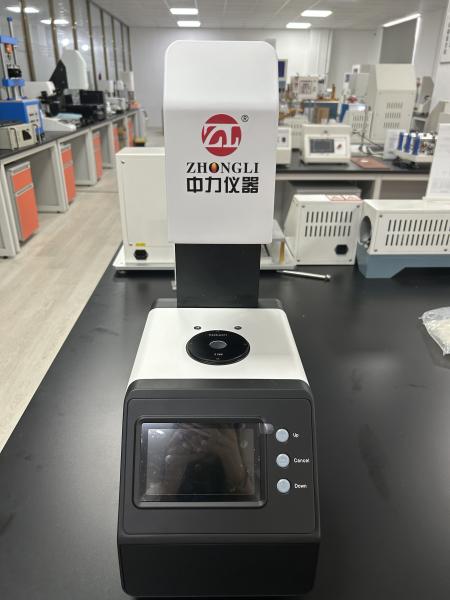

ISO 13468 ASTM D1003 Haze Meter - Full Light Transmittance Plastic Film Haze Tester
Professional haze meter for measuring light transmittance and haze in plastic films, glass, display screens, and packaging materials. Complies with international standards including ASTM D1003 and ISO 13468.
Instrument Advantages
  • Conforms to ASTM and ISO international standards: ASTM D1003, ISO 13468, ISO 14782, JIS K 7361 and JIS K 7136
  • Includes calibration certification from third-party laboratory
  • No warm-up required - ready to use immediately after calibration with 1.5-second measurement time
  • Three illuminants (A, C, D65) for haze and total transmittance measurement
  • 21mm test aperture with open measurement area - no sample size limitations
  • Horizontal and vertical measurement capability for sheets, film, liquid, and various materials
  • Long-life LED light source with 10-year lifespan
Technical Specifications
ModelZL-9053-TH100 Haze Meter
CharacterASTM D1003/D1044 and ISO13468/ISO14782 standard compliance. Open measurement area with vertical and horizontal testing capability. Applications: glass, plastic, film, display screen, packaging industries.
IlluminantsD65, A, C
StandardsASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410, JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136
Test ParameterASTM and ISO (HAZE), Transmittance (T)
Test Apertures21mm and 7mm
Instrument Screen7 inches touch screen with Android Software
Haze RepeatabilityΦ21mm aperture, Standard Deviation: within 0.05 (when a haze standard with value 40 is measured 30 times at 5-second interval after calibration)
Transmittance Repeatability≤0.1 unit
GeometryTransmittance 0/D (0 degree illumination, diffused receiving)
Integrating Sphere SizeΦ154mm
Light SourceFull spectrum LED light source
Test Range0-100%
Haze Resolution0.01 unit
Transmittance Resolution0.01 unit
Sample SizeOpen space, no size limit
Data StorageMass Storage, unlimited
InterfaceUSB
Power SupplyDC12V (110-240V)
Working Temperature+10 - 40 °C (+50 - 104 °F)
Storage Temperature0 - 50 °C (+32 - 122 °F)
Size310mm * 215mm * 540mm (L * W * H)
