ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester
ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester
Specifications
Brand Name :
ZL
Model Number :
ZL-9054
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester is packaged within wooden case.
Product name :
ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester
Model :
ZL-9054
Force Measurement Resolution :
0.001N
Force Measurement Accuracy :
0.2% or more
Sampling Frequency :
200Hz
LCD Display Life :
about 100,000 hours
Touch Screen Effective Touch Times :
about 50,000 times
Loading Speed :
0.1-1400cm/min
Temperature Control Accuracy :
±0.5℃
Heat Sealing Pressure Resolution :
0.1kPa
Description

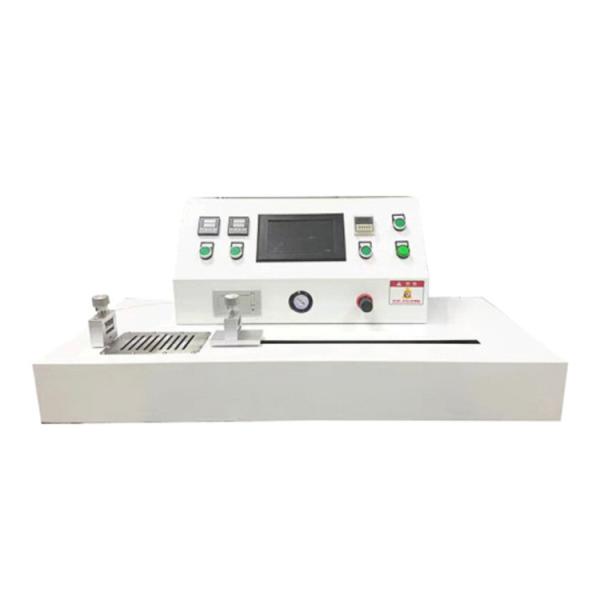

ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester
The packaging material hot tack and heat seal performance tester is developed and manufactured according to ASTM F1921, ASTM F2029 and other standards. This advanced testing equipment performs multiple test types including hot tack testing, heat seal testing, heat seal strength testing, and tensile testing.
Traditional heat seal testing involves placing sealed samples on a tensile machine after temperature drops to room temperature, resulting in higher force values. However, many manufacturers require measurement of sealing force at specific time intervals after sealing, before temperature reaches room temperature. This critical testing method, known as hot tack testing, simulates the actual time intervals between production line processes.
Key Product Features
  • Steplessly adjustable loading speed from 0.1 to 1400 cm/min, precisely meeting ASTM F1921 Method B requirements for hot-adhesive peeling speed of 1200 cm/min
  • Dual heating mode with digital PID temperature control for more accurate and faster temperature regulation
  • High-precision digital pressure sensor with digital display for intuitive and accurate heat sealing air pressure monitoring
  • Digital pressure controller for precise adjustment of heat sealing air pressure
  • Comprehensive test data analysis including average values, maximum values, minimum values, and standard deviation calculations for enhanced testing efficiency
Technical Specifications
Force Measurement Resolution 0.001N
Force Measurement Accuracy 0.2% or more
Sampling Frequency 200Hz
LCD Display Life Approximately 100,000 hours
Touch Screen Effective Touch Times Approximately 50,000 times
Loading Speed 0.1-1400 cm/min
Heat Sealing Time 10-99999 ms
Heat Sealing Temperature Room temperature - 200℃
Temperature Control Accuracy ±0.5℃
Heat Sealing Pressure Range 100-500 kPa
Heat Sealing Pressure Resolution 0.1 kPa
