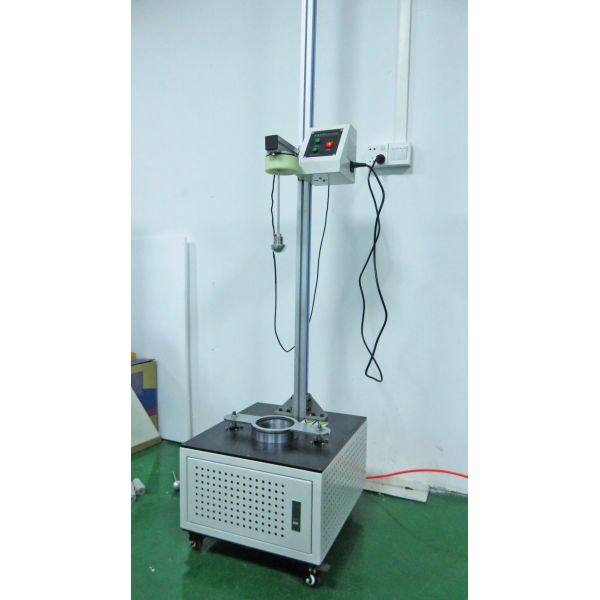

1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
Specifications
Brand Name :
ZL
Model Number :
ZL-3008C
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
100 set per month
Delivery Time :
3-7 Days
Packaging Details :
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine for Plastic Film will be Packaged in wooden case （fumigation free）
Name :
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine for Plastic Film
Model :
ZL-3008C
Maximum Impact Energy :
30J
Measuring Method :
A method, B method (optional)
Test Range :
Method A: 50~2000g Method B:300~2000g
Dropping Dart Head Half Diameter :
Method A: 38MM Method B: 50MM
Test Height :
0.3-1.8M manually adjustable
Test Conditions :
23°C 50%RH (standard)
Specimen Clamping :
Pneumatic
Fixture Inner Diameter :
125mm
Description
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
This precision testing instrument is designed to evaluate the impact resistance of plastic film materials using the free-falling dart method cascade approach.
Technical Documentation
Download Rubber Testing Machine PDF
Product Overview
The film drop dart impact testing machine implements requirements from international standards including GB/T9639, ASTM D1709, JIS K7124, and ISO7765-1:1988. This instrument determines the impact mass and energy when plastic film and sheet samples are damaged, making it ideal for food packaging QS certification and quality control applications.
Application Scope
This instrument is suitable for testing plastic films and thin sheets with thickness less than 1mm, and materials with a breaking mass range of 0.05~2kg.
Testing Principle
Under specified conditions, the instrument uses Method A to determine the mass of the falling body where the number of damaged samples reaches 50%.
Technical Specifications
Maximum Impact Energy 30J
Measuring Method Method A, Method B (optional)
Test Range Method A: 50~2000g
Method B: 300~2000g
Dropping Dart Head Diameter Method A: 38MM
Method B: 50MM
Test Height 0.3-1.8M manually adjustable
Test Conditions 23°C 50%RH (standard)
Specimen Clamping Pneumatic
Fixture Inner Diameter 125MM
1.8M Free Falling Film Resistance Drop Dart Impact Testing Machine For Plastic Film
