Specifications
Brand Name :
ZL
Model Number :
ZL-3008A
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
100 set per month
Delivery Time :
3-7 Days
Packaging Details :
Falling Ball Impact Test Machine Plastic Films Falling Dart Impact Tester will be Packaged in wooden case （fumigation free）
Name :
Falling Ball Impact Test Machine Plastic Films Falling Dart Impact Tester
Model :
ZL-3008A
Ball Weight :
112g, 198g, 225g, 357g, 533g (optional 1042g, 2280g)
Drop Height :
20 ~ 1500mm
Drop Height Scale :
minimum instruction 1cm
Machine Size :
W400 x D450 x H2200mm
Machine Weight :
40kg
Power Source :
1∮, 220V, 5A or designated
Description
Falling Ball Impact Test Machine Plastic Films Falling Dart Impact Tester
Product Overview
This precision testing instrument evaluates the impact resistance of various materials including plastics, ceramics, acrylic, glass fibers, and coated surfaces using controlled falling ball impact methodology.
Technical Documentation
Download Technical Specifications (PDF)
Operating Principle
The machine utilizes DC electromagnetic control technology. The steel ball is positioned beneath the magnetic chuck, where it is automatically secured. Upon activation, the chuck instantaneously releases the ball, allowing it to free-fall and impact the specimen surface. Drop height is precisely adjustable with altitude scale measurement, while various ball weights enable comprehensive impact testing across different material specifications.
Technical Specifications
Parameter Specification
Ball Weight Options 112g, 198g, 225g, 357g, 533g (optional 1042g, 2280g)
Drop Height Range 20 - 1500mm
Drop Height Scale Minimum instruction: 1cm
Machine Dimensions W400 * D450 * H2200mm
Machine Weight 40kg
Power Source 1∮, 220V, 5A or designated
Application Testing
  • Impact resistance testing of plastic films and sheets
  • Ceramic material durability assessment
  • Acrylic and polymer impact performance
  • Glass fiber reinforced material testing
  • Paint and coating adhesion strength evaluation

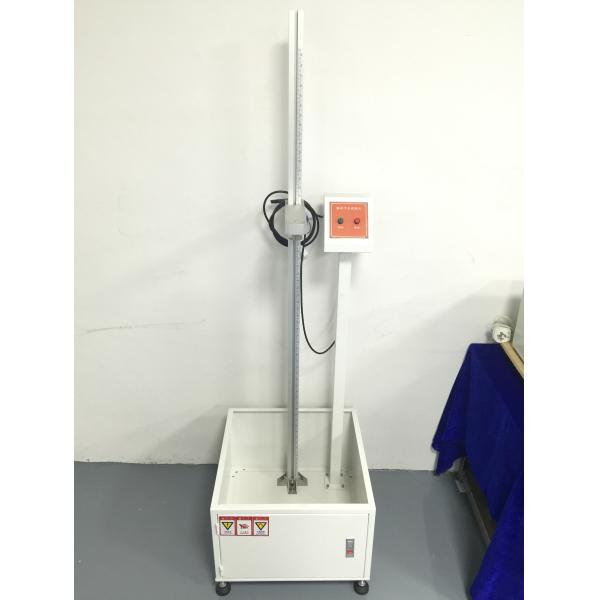

Product Image
Falling Ball Impact Test Machine Plastic Films Falling Dart Impact Tester
