Specifications
Brand Name :
ZL
Model Number :
ZL-3020
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,D/P,D/A
Supply Ability :
30 set per month
Delivery Time :
15-20 work days
Packaging Details :
PVC PP PE Extrusion Line Plastic Profile Fully Automatic Plastic Extruder Machine is packaged in wooden case.
Product name :
PVC PP PE Extrusion Line Plastic Profile Fully Automatic Plastic Extruder Machine
Model :
ZL-3020
Feeding method :
twin-screw quantitative feeding with stirring function
Hopper :
stainless steel, thickness ≥ 2mm
Feeding screw :
material 45#, hard chrome plated on the surface
Feeding hopper :
made of stainless steel, thickness δ=1.5mm
Screw diameter :
Ø21.7mm
Length-to-diameter ratio :
L/D=40:1
Description
PVC PP PE Extrusion Line Plastic Profile Fully Automatic Plastic Extruder Machine
View Product Details
Equipment Overview

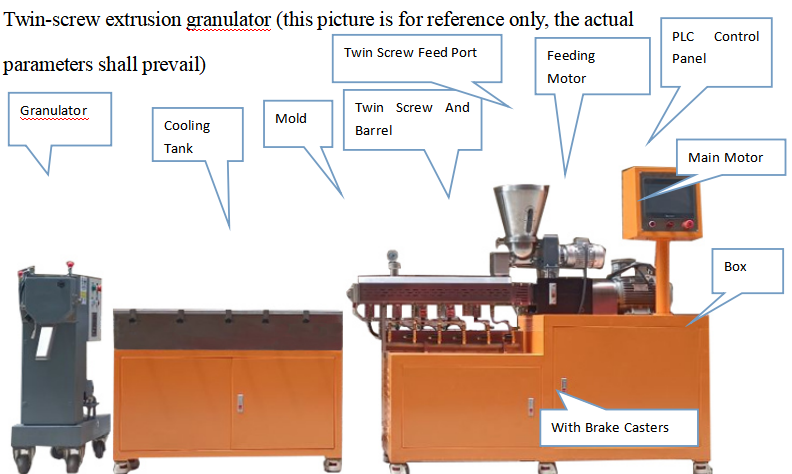

Product Introduction During the polymer extrusion process, the twin-screw granulator performs shearing, mixing, and extrusion of conveyed solid melt polymers at controlled temperatures. This process involves physical state changes, mixing morphology and structural transformations, and determines the relationship between the final mixture and material properties.
Working Principle Material enters through the feeding port and is kneaded into a ball that rolls forward along the screw groove under rotating screw action. Through shearing, compression, and stirring, the material undergoes further mixing and plasticization. Temperature and pressure gradually increase, creating a viscous flow state that passes through the machine head under specific pressure and temperature conditions to achieve the desired product shape.
Key Features
  • High-Quality Gearing: Gears manufactured from premium alloy materials with carburized and quenched tooth surfaces. Special grinding software ensures uniform tooth load distribution, high strength, low noise, and minimal vibration. Integrated减速 and torque distribution for compact structure.
  • Superior Screw and Barrel Design: Components made from wear-resistant materials with optimized surface finish to ensure material quality and extended machine service life.
  • Advanced Screw Construction: Building block structure with thread elements made from 38CrMoALA nitrided steel. High-temperature vacuum quenching heat treatment provides exceptional hardness, wear resistance, and corrosion resistance.
  • Efficient Heating System: Built-in heaters rapidly heat materials with precise temperature control to maintain stable physical and chemical properties while saving energy and facilitating maintenance.
  • Premium Enclosure: Stainless steel windshield cover provides attractive appearance and optimal heat dissipation.
Application Scope
Ideal for mixing and processing experiments involving engineering plastics, modified plastics, waste plastics, and color masterbatches. Provides homogenization, plasticizing, coloring, and filling modification capabilities.
  • Mixing, kneading, extrusion and granulation of general plastics, engineering plastics, elastomers and other materials
  • Blending modification of composite materials
  • Polymer filled reinforcement modification
