Specifications
Brand Name :
ZL
Model Number :
ZL-3028
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 set per month
Delivery Time :
7-10 days
Packaging Details :
ISO3582 ASTMD4986 Horizontal and Vertical Burning Tester Flammability Testing Machine Flame Tester will be Packaged in wooden case （fumigation free）
Name :
ISO3582 ASTMD4986 Horizontal and Vertical Burning Tester Flammability Testing Machine Flame Tester
Model :
ZL-3028
Inner Volume of the Box :
≥0.5 cubic meters
Flame Application Time :
0 ~ 99 minutes and 99 seconds
Afterflame Time :
0 ~ 99 minutes and 99 seconds
Burning Angle :
20°, 45°, 90°(ie 0°) adjustable
Power Supply :
AC 220V, 50Hz
Brand :
ZL
Description

ISO3582 ASTMD4986 Horizontal and Vertical Burning Tester Flammability Testing Machine Flame Tester

●Standard:

UL94, GBT2408

●Technical Description:

Horizontal Vertical Flame Tester is applicable to test and assess the burning characteristics of plastic material, according to the American UL94 standard and GBT2408 a parts for equipment and instruments in plastic material flammability test of relative clauses specified in the design and manufacturing, plastic parts of equipment and utensils horizontal, vertical flammability test, and equipped with gas flowmeter, adjust the flame size, simple and safe operation. This instrument can assess the flammability of materials or foam plastics such as: V-0, V-1, V-2, HB, 5V, HF-1, HF-2, HBF grade.

●Basic Specifications:

Model ZL-3028
Box volume ≥0.5 cubic meters, with glass viewing door
Timer Adopt high-precision timer, adjustable within 0 ~ 99 minutes and 99 seconds, accuracy ±0.1 seconds, combustion time can be set,
combustion duration can be recorded
Control system PLC + touch screen automatic control and manual control
Print function Automatic print data
Flame time 0 ~ 999.99 S can be set
Residual flame time 0 ~ 999.99 S can be set
Residual burning time 0 ~ 999.99 S can be set
Test gas more than 98% methane /37MJ/m3 natural gas(customer-owned)
Burning Angle 20 °, 45 °, 90 ° (i.e. 0 °) adjustable
Burner dimension parameters Ø 9.5±0.3 mm inner diameter nozzle, the nozzle effective length is 100±10 mm, with air conditioning holes
Flame height It can be adjusted from 20mm to 175mm according to standard requirements
Flowmeter 105ml/min standard
Product features Additionally equipped with lighting device, pumping device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas U-shaped pressure gauge and sample fixture
Optional device Equipped with air extraction device and combustible gas leakage alarm device
Power supply AC 220V±10% 50HZ

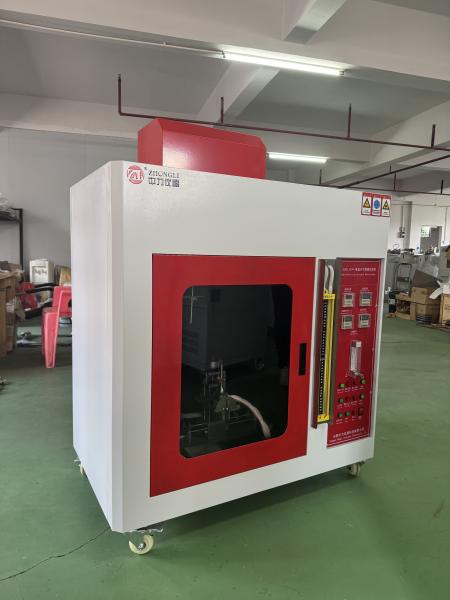

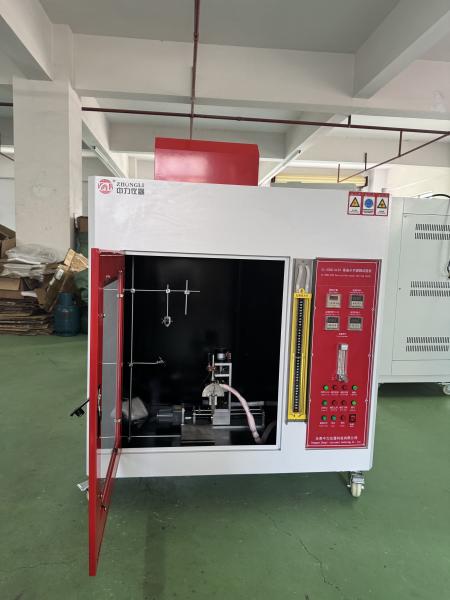

●Machine Picture:

ISO3582 ASTMD4986 Horizontal and Vertical Burning Tester Flammability Testing Machine Flame Tester
