Specifications
Brand Name :
ZL
Model Number :
ZL-1030
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
US $6000-8000/SET
Payment Terms :
L/C,D/A,T/T,MoneyGram,Western Union
Supply Ability :
30 SETS/month
Delivery Time :
14 work days
Packaging Details :
IEC60243 Voltage Breakdown Tester is Packed in a polybag, then packed as export safety wooden case
Name :
IEC60243 Voltage Breakdown Tester
Test voltage :
AC 0~50 kV
Continuously adjustable :
DC 0~50 kV
Transformer capacity :
10 KVA
Breakdown voltage :
0~50kV
Boost speed :
6 positions in 50, 100, 200, 500, 1000, 2000 (KV/S)
Boost speed regulation :
for automatic electric speed regulation
Voltage measurement accuracy :
≤ 2%
Leakage current selection :
1~20 mA
Description

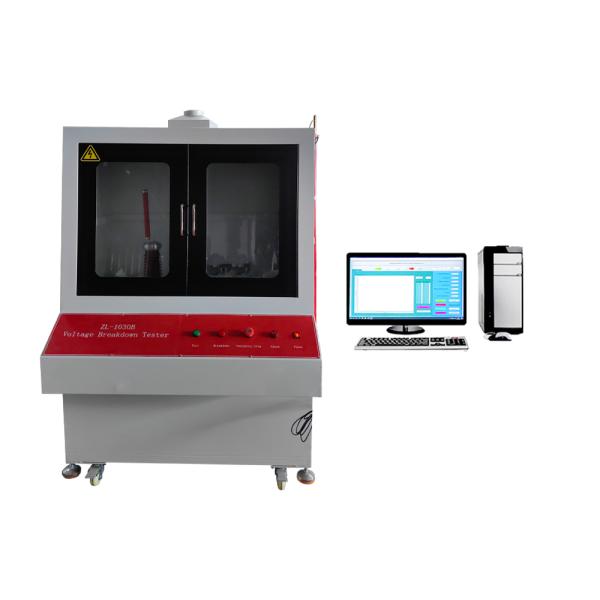

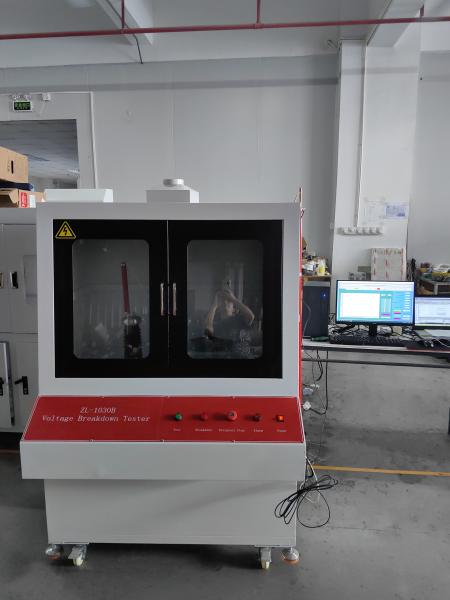

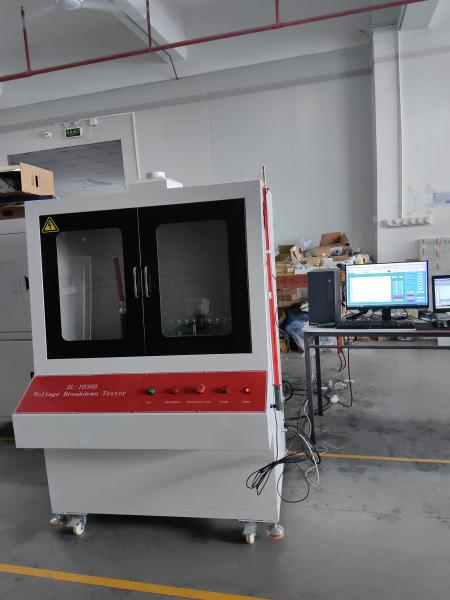

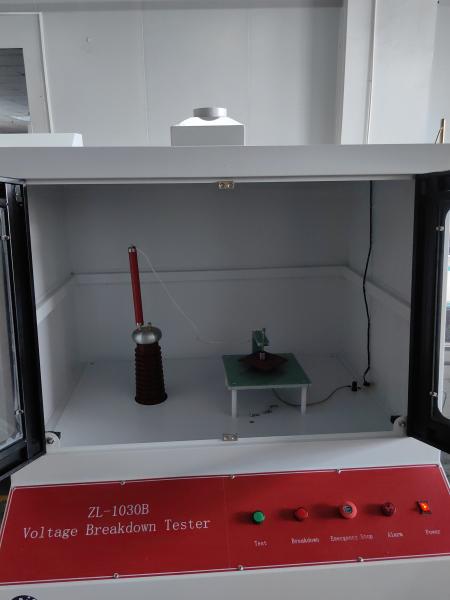

IEC60243 Voltage Breakdown Tester
The IEC60243 Voltage Breakdown Tester is designed for comprehensive electrical strength testing of solid insulating materials under power frequency and DC voltage conditions.
Applications
Primarily used for testing solid insulating materials including plastics, films, resins, mica, ceramics, silica gel, glass, insulating varnish, and similar materials. Performs measurements in air or liquid media to determine power frequency (48-62Hz) or corresponding DC voltage breakdown strength and withstand voltage duration.
Testing Capabilities
  • Continuous uniform boost or step-up boost voltage application
  • AC/DC voltage application until sample breakdown
  • Breakdown voltage value measurement and breakdown strength calculation
  • Rapid boost method for withstand voltage testing at specified values
Standards Compliance
Complies with IEC60243-1 "Test method for electrical strength of solid insulating materials - Test under power frequency", IEC 60243-2 "Test method for electrical strength of solid insulating materials - Corresponding to DC voltage test", and ASTM D149 test standard requirements.
Technical Parameters
Parameter Specification
Test Voltage AC 0-50 kV, continuously adjustable; DC 0-50 kV, continuously adjustable (100KV option available)
Transformer Capacity 10 KVA
Breakdown Voltage 0-50kV
Boost Speed 6 positions: 50, 100, 200, 500, 1000, 2000 (KV/S)
Boost Speed Regulation Automatic electric speed regulation
Voltage Measurement Accuracy ≤ 2%
Leakage Current Selection 1-20 mA
Test Methods DC test, AC test
Boost Mode Automatic program-controlled boost
Power Frequency 50Hz sine wave
Power Supply AC220V 50/60Hz
Dimensions 1400 * 1040 * 1500 mm (L * W * H)
Weight 200 KG
