Specifications
Brand Name :
ZL
Model Number :
ZL-3017
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 3,000.00 - 6,000.00 / unit
Payment Terms :
T/T,L/C,Western Union,D/P,D/A
Supply Ability :
30 set per month
Delivery Time :
15-20 days
Packaging Details :
Professional Rubber Testing Machine ABS Color Masterbatch Extruder Machine is packaged in wooden case.
Product name :
Single Screw Extruder Machine
Screw DIAMETER :
25mm
Screw Aspect Ratio :
25:1
Screw Compression Ratio :
3
Model :
ZL-3017
Main Motor Speed Regulation :
Inverter speed regulation (Holip)
Barrel Heating :
Stainless steel shell, electric heating
Description
High Quality Single Screw Extruder Machine
Efficient cable extruding tool for silicone rubber insulation and rubber making machinery
Download Technical Brief (PDF)
Overview
The single-screw extruder is the most versatile and fundamental piece of continuous mixing and shaping equipment in the polymer processing industry. Acting as the "heart" of plastics production, it utilizes a rotating screw inside a heated barrel to perform sequential operations including feeding, compaction, melting, mixing, homogenization, metering, and pumping. The final melt is continuously forced through a shaped die to produce products with constant cross-sections or to feed subsequent processes.
Working Principle (Three-Zone Model)
The core principle relies on drag-induced flow from the rotating screw, combined with friction and external heating from the barrel. The material undergoes three physical transitions:
  • Feed Zone (Solid Conveying): Granular or powdered material enters from the hopper. This zone has the deepest screw channel for solid conveying, where screw rotation pushes material forward while heating and friction begin preheating and compaction.
  • Compression Zone (Melting/Plasticating): The screw channel depth gradually decreases, creating compression. The compacted solid plug undergoes increasing shear and pressure, forming a melt film that is scraped off and collected until material is fully molten.
  • Metering Zone (Melt Pumping): This zone has the shallowest constant channel depth for homogenizing the melt, providing stable conveying, and acting as a precision pump to deliver material to the die at constant pressure, temperature, and flow rate.

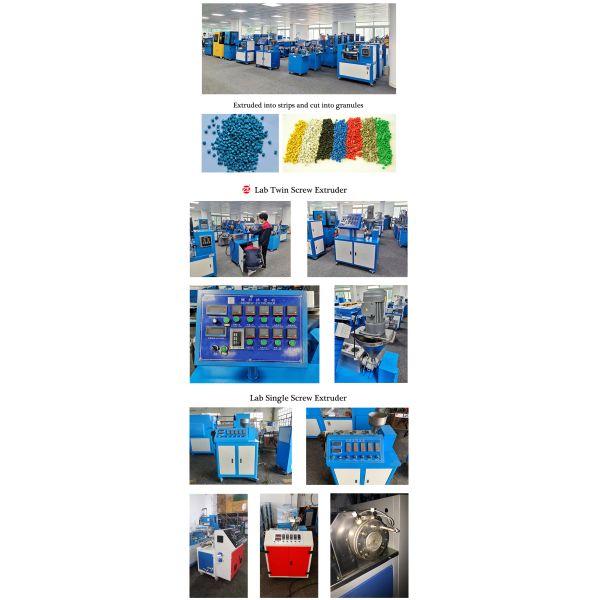

High Quality Single Screw Extruder Machine Efficient Cable Extruding Tool for Silicone Rubber Insulation Rubber Making Machinery
Technical Specifications
Component/Feature Specification
The Screw And Barrel Made of 38 CrMoAlA, quenched and tempered and nitrided
Screw Diameter 25mm
Screw Aspect Ratio 25:1
Screw Compression Ratio 3
Main Motor Power 1KW
Main Motor Speed Regulation Inverter speed regulation (Holip)
Barrel Heating Stainless steel shell, electric heating
Heating Power Diameter of tank heater from first area to second land area: 60*180*220V*900W
Die Head Heater (Seventh Zone) 120*40*220V*400W
Electrical Components Huibang 45*45 temperature control meter, Andre contactor, Shanghai Jinghao button, Holip 1.5KW inverter
