Specifications
Model Number :
ZL-3043B
Impact energy :
0-25J, adjustable via test height.
Brand Name :
ZL
MOQ :
1
Delivery Time :
14 work days
Impact height :
0-500mm, adjustable by user.
Price :
UDS4000
Support anvil :
Material 45# steel, height 180±30mm, top spherical with radius 100±1mm.
Sensor :
Dynamic force sensor, measuring range 0-20000N, frequency 10kHz, accuracy 1.5%
Certification :
CE
Packaging Details :
wooden case packaging
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Impact hammer :
Material 45# steel, mass 2.5±0.01kg, impact surface circular, φ80±2mm.
Data system :
Sampling frequency 10kHz, sampling time 50ms, lower acquisition limit 500N, accurate to 1N.
Supply Ability :
50
Name :
Safety Gloves Impact Testing Machine
Place of Origin :
China
Description

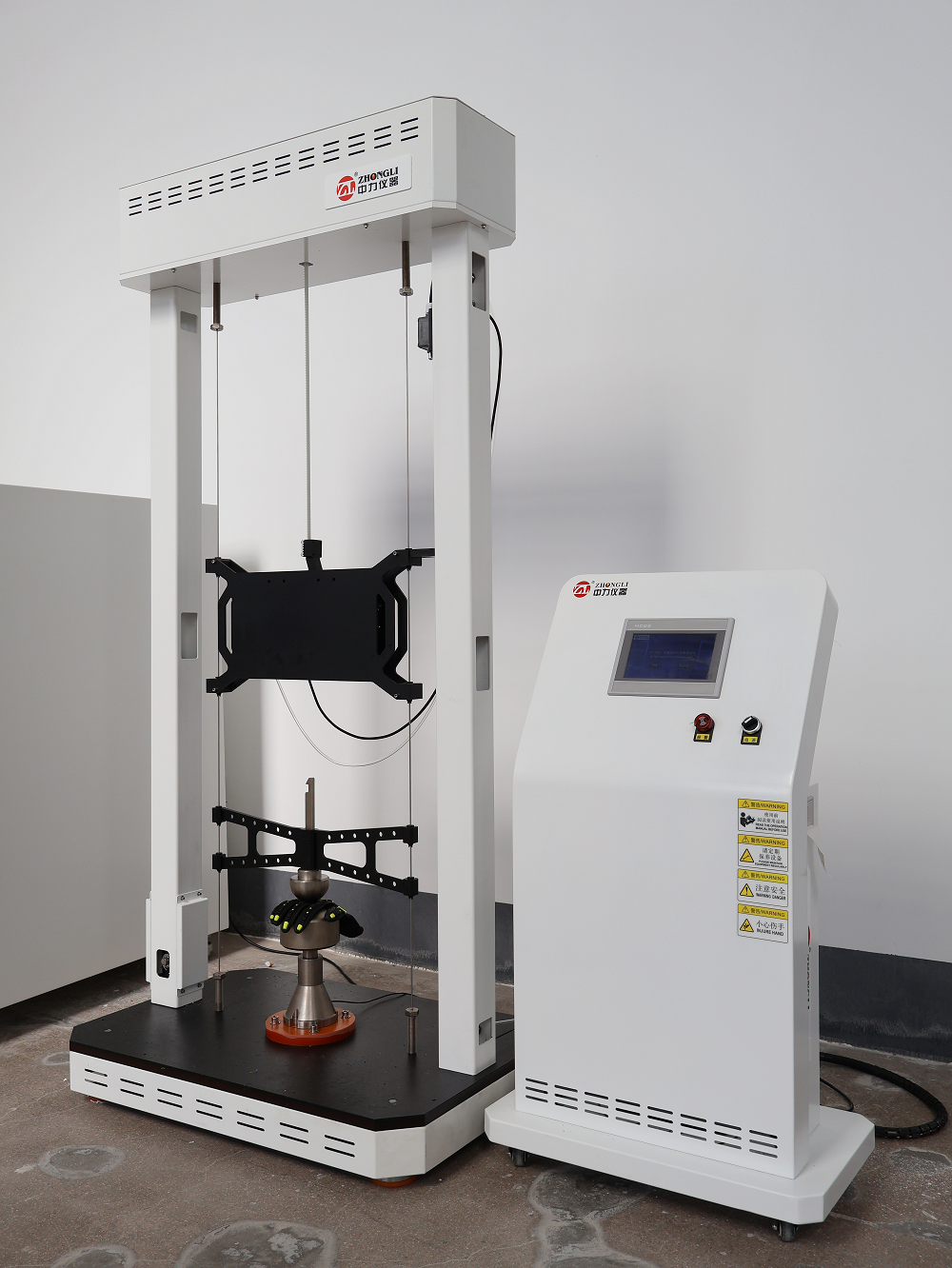

EN 388 EN13594 EN1621 Safety Gloves Impact Testing Machine
Product Overview

Manufactured in accordance with relevant standards, this testing machine is primarily used for impact resistance testing of mechanical hazard protective gloves. It is widely utilized in special labor protective equipment supervision and inspection stations, safety production science research institutes, product quality inspection institutes, glove manufacturers, and user organizations.

Key Features
  • The overall control system adopts a PLC touch screen control structure. All related operations can be completed via the touch screen
  • The dynamic force sensor utilizes US PCB ICP technology sensor, offering high accuracy
  • The touch screen automatically displays and locks the maximum dynamic force value
  • The calibration sensitivity of the dynamic sensor can be input via the touch screen, facilitating easy calibration
  • Height is automatically acquired and processed using an encoder. The touch screen allows setting and real-time display of height; lifting stops automatically when the set height is reached
  • The impact hammer lifting and release parts adopt a guide rail structure to ensure smooth dropping
  • The release device employs pneumatic release, with an audible alarm before release
Technical Specifications
Component Specifications
Impact Hammer Material 45# steel, mass 2.5±0.01kg, impact surface circular, φ80±2mm
Support Anvil Material 45# steel, height 180±30mm, top spherical with radius 100±1mm
Sensor Dynamic force sensor, measuring range 0-20000N, frequency 10kHz, accuracy 1.5%
Data System Sampling frequency 10kHz, sampling time 50ms, lower acquisition limit 500N, accurate to 1N
Impact Height 0-500mm, adjustable by user
Impact Energy 0-25J, adjustable via test height
Power Supply AC220V, 50Hz
Applicable Standards
  • EN 388
  • GB24541-2022 "Hand Protection - Mechanical Hazard Protective Gloves"
