Specifications
Model Number :
ZL-6042
Brand Name :
ZL
MOQ :
1
Delivery Time :
14 work days
Total Lamp Power :
4 kW
Effective Exposure Area :
Approx. 500 mm × 500 mm
Certification :
CE
Price :
UDS13000
Spectral Wavelength & Irradiance Intensity :
Spectral wavelength 300–400 nm (UVB + UVA); Irradiance intensity:100 W/m² ~ 250 W/m²
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Exterior Dimensions :
Approx. 1000 × 1100 × 1850 mm (W × D × H), subject to actual dimensions
Number of Lamps :
2 pieces
Supply Ability :
50
Interior Dimensions :
500 × 500 × 600 mm (W × D × H)
Place of Origin :
China
Packaging Details :
wooden case packaging
Description

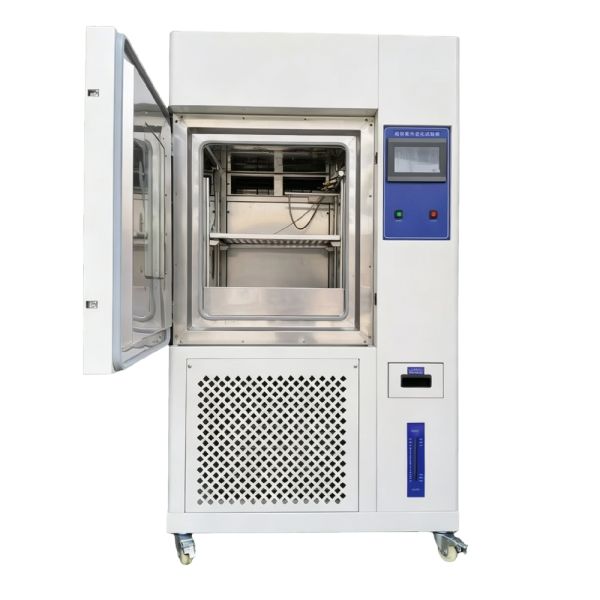

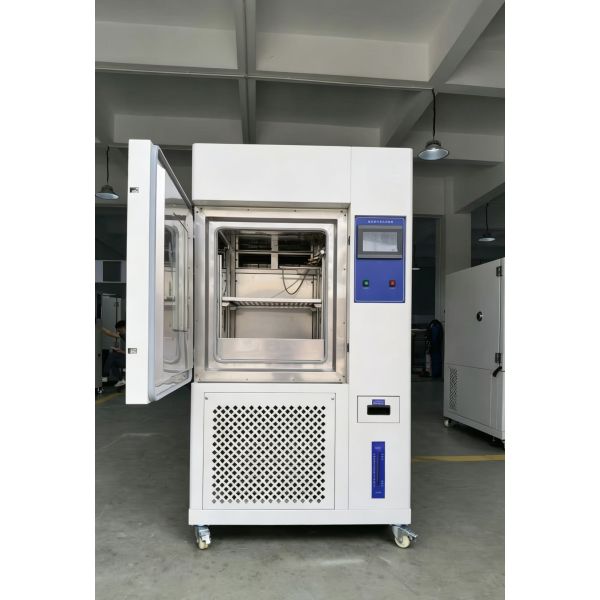

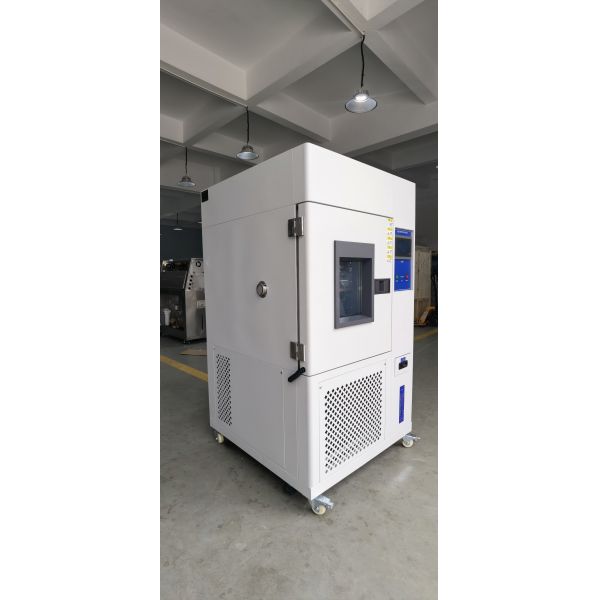

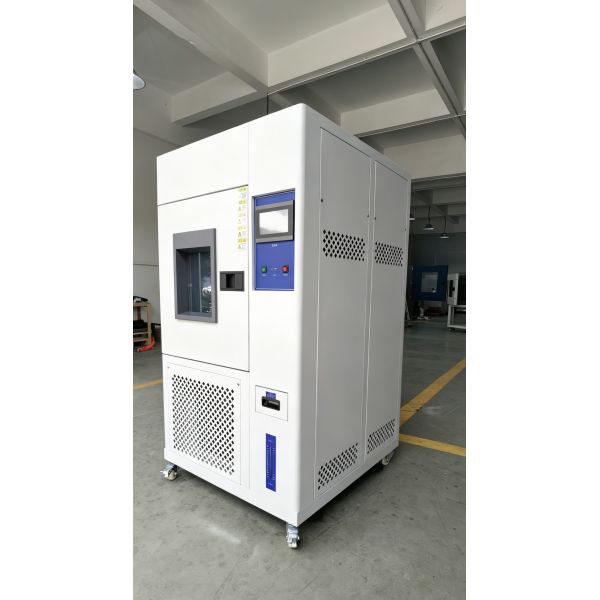

IEC 61215 High-Intensity Metal Halide UV Aging Test Chamber
Product Overview

This equipment utilizes metal halide lamps to replicate damaging light waves found in various environmental conditions, delivering reliable environmental simulation and accelerated testing for scientific research, product development, and quality control applications.

By exposing material specimens to the combined light and thermal radiation of xenon arc lamps, this chamber evaluates the light resistance and weatherability of materials under high-temperature light sources. It serves critical testing needs across multiple industries including automotive, paint, rubber, plastic, pigment, adhesive, fabric, aerospace, marine, electronics, and packaging.

The weathering test chamber supports new material selection, modification of existing materials, and assessment of durability changes resulting from material composition adjustments. It effectively simulates the degradation processes that occur when materials are exposed to sunlight under diverse environmental conditions.

Compliant Standard: IEC 61215
Technical Specifications
Parameter Specification
Interior Dimensions 500 × 500 × 600 mm (W × D × H)
Exterior Dimensions Approx. 1000 × 1100 × 1850 mm (W × D × H), subject to actual dimensions
Spectral Wavelength & Irradiance Intensity Spectral wavelength 300-400 nm (UVB + UVA); Irradiance intensity: 100 W/m² ~ 250 W/m²
Effective Exposure Area Approx. 500 mm × 500 mm
Number of Lamps 2 pieces
Total Lamp Power 4 kW
Lamp Service Life Approx. 1,000 ~ 1,200 hours

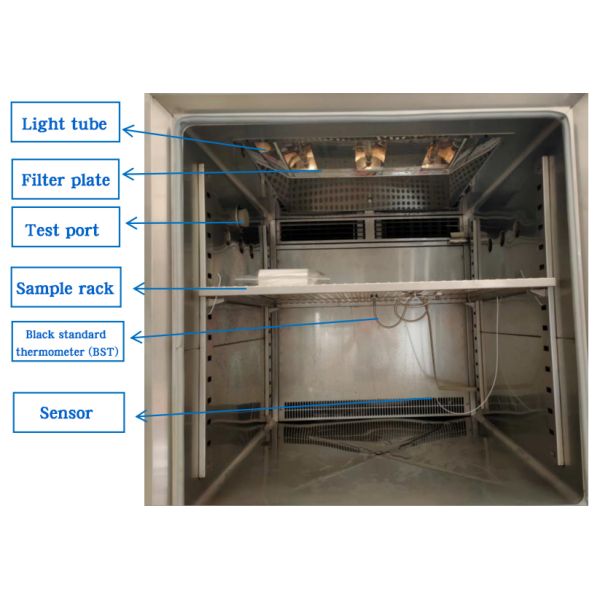

Light Source Type Metal halide lamp
Chamber Temperature Range RT+10°C ~ 70°C
Black Standard Temperature Range 40°C ~ 100°C adjustable (light cycle); 25°C ~ 85°C (dark cycle)
Thermometer Black Standard Thermometer (BST)
Irradiance Meter Intelligent fully automatic irradiance compensation
Temperature Accuracy ±0.1°C
Temperature Fluctuation ±0.5°C
Temperature Deviation ±3°C
Humidity Range 30% ~ 98% RH (during dark cycle); 20% ~ 60% RH (during light cycle)
Humidity Accuracy ±1% RH
Humidity Fluctuation ±3% RH
Humidity Deviation ≤ ±5% RH
Light Cycle Time Continuously adjustable from 1 second to 999 hours, 59 minutes, 59 seconds
Rain Cycle Adjustable interval (intermittent) rain, 1-240 minutes
Spray Cycle 18 min / 102 min or 12 min / 48 min (spray time / non-spray time)
Spray Water Pressure 0.12 ~ 0.15 MPa
Spray Nozzle Aperture Ф0.8 mm
Door Seal Silicone rubber compression sealing device
Sample Rack Material SUS304 stainless steel
Interior Chamber Material SUS304 stainless steel
Exterior Chamber Material Cold-rolled steel plate with paint finish
