Specifications
Model Number :
ZL-3017E
Model :
ZL-3017E
Brand Name :
ZL
Name :
Laboratory 3D Filament Extrusion Line
MOQ :
1
Delivery Time :
20 work days
Capacity :
1-2kg/h
Screw L/D :
30:1
Price :
UDS9000
Machine Size :
2500*650*1500mm
Certification :
CE
Electric Resource :
380V, 3PHASE, 50HZ
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Power :
About 10kw
Supply Ability :
50
Barrel screw diameter :
Φ25mm
Place of Origin :
China
Product Diameter :
Φ 1.75
Packaging Details :
wooden case packaging
Barrel screw material :
38CrMoAlA
Description

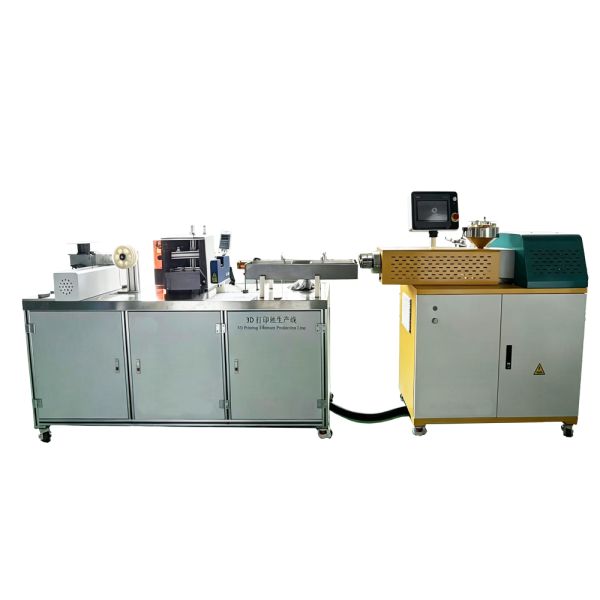

Laboratory 3D Filament Extrusion Line for PLA ABS 3D Printer Filament

The Laboratory 3D Filament Extrusion Line is designed for material properties measurement, production process parameter optimization, and research material molding properties. It serves as an ideal solution for scientific research, teaching demonstrations, and production enterprises.

Main Specifications
Using Condition Specifications
Electric Resource 380V, 3PHASE, 50HZ
Plastic Raw Materials By customer
Product Diameter Φ 1.75
Capacity 1-2kg/h
Machine Size 2500*650*1500mm
Power About 10kw
Technical Parameters
  • SJ25/30 Single Screw Extruder: 1 SET
  • Mould: 1 SET
  • Water Cooling Box: 1 SET
  • Gauging Arrangement: 1 SET
  • Two Roller Traction: 1 SET
  • Winder: 1 SET
Main Parts Specification
SJ25/30 Single Screw Extruder
Barrel screw diameter Φ25mm
Screw L/D 30:1
Barrel screw material 38CrMoAlA
Barrel heating way Electric heating
Motor Converter motor
Motor power 2.2kw
Speed adjusting Frequency control
Mould
Mould Diameter Φ 1.75mm
Mould Material 45#steel
Water Cooling Box
Box Material 304 Stainless steel
Length 1000mm
Width 200mm
Two Roller Traction
Roller Diameter 60mm
Roller Material Rubber
Speed Adjust Frequency control
Winder
Winder Motor Torque motor
Speed Adjust Frequency control
Electric Control System
Frequency Transformer HOLIP
Tachograph QUANSHENG
Safety Protection
  • The control box has the power light, the stop switch, and the emergency stop button
  • All dangerous and running places are clearly marked
