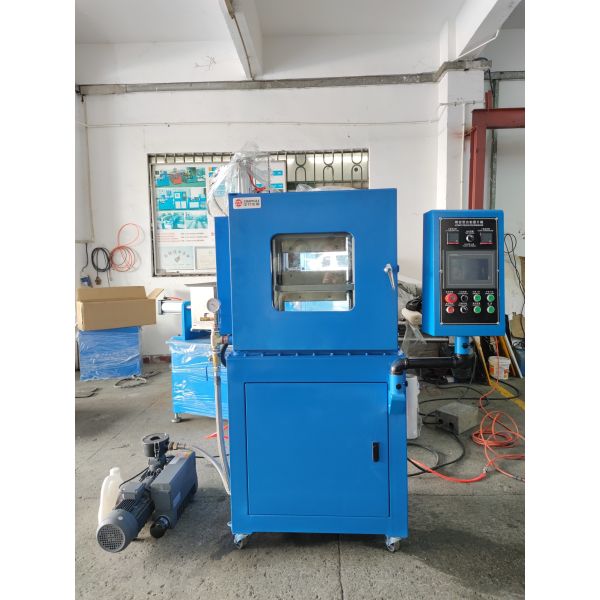

Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Specifications
Model Number :
ZL-3022F
Temp. Range :
Room temp. ～300℃
Brand Name :
ZL
Capacity :
5~50ton ( Option )
MOQ :
1
Delivery Time :
20 work days
Heat time :
~20min (Ambient → 170℃)
Price :
USD7000
Oil cylinder stroke :
Max 180mm
Certification :
CE
Timer  :
LED display，time range 0.1S～99min～9.9hr
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Oil cylinder speed :
11mm/s
Supply Ability :
50
Pressure gauge  :
0～100kg/sq.cm
Place of Origin :
China
Barrel heating way :
Microcomputer PID control, stable performance and precise temperature control
Packaging Details :
wooden case packaging
Description
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Laboratory Vacuum Rubber Vulcanizer Lab Hydraulic Hot Press for Plastic Rubber Specimen Forming
Operating Principle

The material is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, making the material shaping, testing and serving as the basis for the ingredient of mass production.

Technical Specifications
Parameter Specification
Capacity 5~50 ton (Optional)
Temperature Range Room temperature ~ 300℃
Temperature Controller Independent temperature control; digital thermostat displays temperature and allows manual temperature setting
Timer LED display, time range 0.1S ~ 99min ~ 9.9hr
Heating Type Microcomputer PID control, stable performance and precise temperature control
Heater Cylindrical heaters embedded inside mold, rationally arranged mounting holes, featuring fast heating, long service life and easy maintenance
Heat Time ~20min (Ambient → 170℃)
Hot Pressure Plate 300*300mm imported SKD plate, carburizing quenching treatment, fast heat transfer, flat & non-deformable under pressing
Cold Pressure Plate 300*300mm, built-in water cooling circuit with water inlet/outlet ports, client provides tap water source
Double-layer Design 1 heating layer + 1 water cooling layer
Oil Pressure System Closed-loop flow control with GPY pump, low-resistance cylinder, auto pressure compensation; preset 1st/2nd pressing time, auto press/hold/release, stable lifting & heavy load
Oil Cylinder Stroke Max 180mm
Oil Cylinder Speed 11mm/s
Pressure Gauge 0 ~ 100kg/sq.cm
Power 10.6 HP
Dimension (W*D*H) 980*590*1630 mm
Power Supply 3∮, AC380V, 20A
Weight About 1290kg
Vacuum -0.06mpa ~ 0.09mpa, auto constant high vacuum retention
